Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID SapurV1A.1087s0090.1.p
Organism
Salix purpurea
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; rosids; fabids; Malpighiales; Salicaceae; Saliceae; Salix
Family MYB
Protein Properties Length: 194aa    MW: 21821.7 Da    PI: 8.328
Description MYB family protein
Gene Model
Gene Model ID Type Source Coding Sequence
SapurV1A.1087s0090.1.pgenomeJGIView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1Myb_DNA-binding61.22.1e-191865148
                            TSSS-HHHHHHHHHHHHHTTTT-HHHHHHHHTTTS-HHHHHHHHHHHT CS
         Myb_DNA-binding  1 rgrWTteEdellvdavkqlGggtWktIartmgkgRtlkqcksrwqkyl 48
                            rg+WT+eEd +l+++v+ +G ++Wkt+a + g++R++k+c++rw++yl
  SapurV1A.1087s0090.1.p 18 RGAWTAEEDSKLARCVEVHGAKRWKTVALKSGLNRCGKSCRLRWLNYL 65
                            89********************************************97 PP
2Myb_DNA-binding50.54.9e-1671116148
                             TSSS-HHHHHHHHHHHHHTTTT-HHHHHHHHTTTS-HHHHHHHHHHHT CS
         Myb_DNA-binding   1 rgrWTteEdellvdavkqlGggtWktIartmgkgRtlkqcksrwqkyl 48
                             rg+ + eE++l+++++k+lG++ W++Ia +++ gRt++++k++w+++l
  SapurV1A.1087s0090.1.p  71 RGNISCEEEDLIIRLHKLLGNR-WSLIAGRLP-GRTDNEIKNYWNSHL 116
                             677788****************.*********.************986 PP
Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
PROSITE profilePS5129417.7641365IPR017930Myb domain
SMARTSM007176.8E-151767IPR001005SANT/Myb domain
PfamPF002493.8E-171865IPR001005SANT/Myb domain
SuperFamilySSF466891.5E-2918112IPR009057Homeodomain-like
Gene3DG3DSA:1.10.10.602.1E-231972IPR009057Homeodomain-like
CDDcd001677.01E-112065No hitNo description
PROSITE profilePS5129425.5166120IPR017930Myb domain
SMARTSM007171.9E-1470118IPR001005SANT/Myb domain
PfamPF002492.2E-1471116IPR001005SANT/Myb domain
Gene3DG3DSA:1.10.10.605.8E-2573120IPR009057Homeodomain-like
CDDcd001671.11E-1077116No hitNo description
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0003677Molecular FunctionDNA binding
Sequence ? help Back to Top
Protein Sequence    Length: 194 aa     Download sequence    Send to blast
MAPKNAVTDA SPKKVTSRGA WTAEEDSKLA RCVEVHGAKR WKTVALKSGL NRCGKSCRLR  60
WLNYLRPNIK RGNISCEEED LIIRLHKLLG NRWSLIAGRL PGRTDNEIKN YWNSHLSKKI  120
TNQTGKEKMA DQPSTPLAID EVESSREARN LETGNFDVNE FLDFSAEGSE WVDKSLQLDG  180
IQWIIDGEEV SIL*

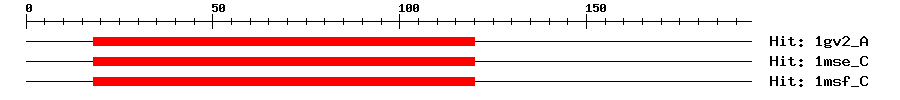

3D Structure ? help Back to Top
Structure
PDB ID Evalue Query Start Query End Hit Start Hit End Description
1gv2_A4e-28181204105MYB PROTO-ONCOGENE PROTEIN
1mse_C4e-28181204105C-Myb DNA-Binding Domain
1msf_C4e-28181204105C-Myb DNA-Binding Domain
Search in ModeBase
Functional Description ? help Back to Top
Source Description
UniProtControls the expression of genes involved in anthocyanin biosynthesis. Regulates the expression of at least 3 structural genes: chalcone synthase, dihydroflavonol reductase and flavonol O(3) glucosyltransferase. C1 acts as a trans-acting factor.
Cis-element ? help Back to Top
SourceLink
PlantRegMapSapurV1A.1087s0090.1.p
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieve-
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_011032038.11e-110PREDICTED: trichome differentiation protein GL1-like
SwissprotP102902e-50MYBC_MAIZE; Anthocyanin regulatory C1 protein
TrEMBLB9GYD51e-102B9GYD5_POPTR; Uncharacterized protein
STRINGPOPTR_0003s07680.11e-103(Populus trichocarpa)
Orthologous Group ? help Back to Top
LineageOrthologous Group IDTaxa NumberGene Number
FabidsOGEF21483288
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT5G14750.18e-52myb domain protein 66
Publications ? help Back to Top
  1. Chen B,Wang X,Hu Y,Wang Y,Lin Z
    Ectopic expression of a c1-I allele from maize inhibits pigment formation in the flower of transgenic tobacco.
    Mol. Biotechnol., 2004. 26(3): p. 187-92
    [PMID:15004287]
  2. Paz-Ares J,Ghosal D,Saedler H
    Molecular analysis of the C1-I allele from Zea mays: a dominant mutant of the regulatory C1 locus.
    EMBO J., 1990. 9(2): p. 315-21
    [PMID:2303027]
  3. Cone KC,Burr FA,Burr B
    Molecular analysis of the maize anthocyanin regulatory locus C1.
    Proc. Natl. Acad. Sci. U.S.A., 1986. 83(24): p. 9631-5
    [PMID:3025847]
  4. Paz-Ares J,Ghosal D,Wienand U,Peterson PA,Saedler H
    The regulatory c1 locus of Zea mays encodes a protein with homology to myb proto-oncogene products and with structural similarities to transcriptional activators.
    EMBO J., 1987. 6(12): p. 3553-8
    [PMID:3428265]
  5. Scheffler B, et al.
    Molecular analysis of C1 alleles in Zea mays defines regions involved in the expression of this regulatory gene.
    Mol. Gen. Genet., 1994. 242(1): p. 40-8
    [PMID:7904044]
  6. Franken P,Schrell S,Peterson PA,Saedler H,Wienand U
    Molecular analysis of protein domain function encoded by the myb-homologous maize genes C1, Zm 1 and Zm 38.
    Plant J., 1994. 6(1): p. 21-30
    [PMID:7920701]
  7. Singer T,Gierl A,Peterson PA
    Three new dominant C1 suppressor alleles in Zea mays.
    Genet. Res., 1998. 71(2): p. 127-32
    [PMID:9717435]
