Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID SapurV1A.2002s0050.1.p
Organism
Salix purpurea
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; rosids; fabids; Malpighiales; Salicaceae; Saliceae; Salix
Family MIKC_MADS
Protein Properties Length: 219aa    MW: 24915.5 Da    PI: 9.4116
Description MIKC_MADS family protein
Gene Model
Gene Model ID Type Source Coding Sequence
SapurV1A.2002s0050.1.pgenomeJGIView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1SRF-TF90.86.8e-29959151
                            S---SHHHHHHHHHHHHHHHHHHHHHHHHHHT-EEEEEEE-TTSEEEEEE- CS
                  SRF-TF  1 krienksnrqvtfskRrngilKKAeELSvLCdaevaviifsstgklyeyss 51
                            k+ien +nrqvt+skRrngi+KKA+EL vLCda+v++i+fs+t+kl+ey+s
  SapurV1A.2002s0050.1.p  9 KKIENPTNRQVTYSKRRNGIFKKAQELTVLCDAKVSLIMFSNTNKLHEYIS 59
                            68***********************************************86 PP
2K-box88.99.9e-3071169199
                   K-box   1 yqkssgksleeakaeslqqelakLkkeienLqreqRhllGedLesLslkeLqqLeqqLekslkkiRskKnellleqieelqkkekel 87
                             yqk+ g++l++a++e++q++l+kLk+ +++L++e+R+++GedL++Ls+ +L  Leq++ ++l+ +R +K++++++q+++ +kk ++l
  SapurV1A.2002s0050.1.p  71 YQKALGTDLWSAQYEKMQEQLRKLKDINHKLKKEIRQRIGEDLNELSIDHLCVLEQDMSEALNGVRGRKYHVIKTQTDTCKKKVRSL 157
                             789999********************************************************************************* PP

                   K-box  88 qeenkaLrkkle 99
                             +e++ +Lr+++e
  SapurV1A.2002s0050.1.p 158 EERHGNLRMEYE 169
                             ********9987 PP

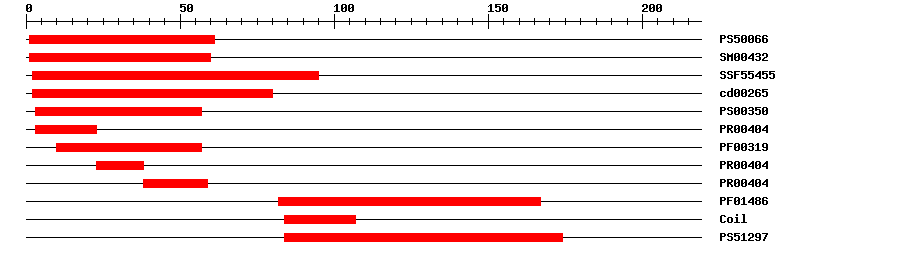

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
PROSITE profilePS5006632.226161IPR002100Transcription factor, MADS-box
SMARTSM004322.9E-41160IPR002100Transcription factor, MADS-box
SuperFamilySSF554551.14E-37295IPR002100Transcription factor, MADS-box
CDDcd002653.46E-40280No hitNo description
PROSITE patternPS003500357IPR002100Transcription factor, MADS-box
PRINTSPR004041.1E-27323IPR002100Transcription factor, MADS-box
PfamPF003192.2E-241057IPR002100Transcription factor, MADS-box
PRINTSPR004041.1E-272338IPR002100Transcription factor, MADS-box
PRINTSPR004041.1E-273859IPR002100Transcription factor, MADS-box
PfamPF014863.1E-2082167IPR002487Transcription factor, K-box
PROSITE profilePS5129715.00584174IPR002487Transcription factor, K-box
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0006355Biological Processregulation of transcription, DNA-templated
GO:0010093Biological Processspecification of floral organ identity
GO:0005634Cellular Componentnucleus
GO:0003677Molecular FunctionDNA binding
GO:0003700Molecular Functiontranscription factor activity, sequence-specific DNA binding
GO:0046983Molecular Functionprotein dimerization activity
Sequence ? help Back to Top
Protein Sequence    Length: 219 aa     Download sequence    Send to blast
MGRGKIEIKK IENPTNRQVT YSKRRNGIFK KAQELTVLCD AKVSLIMFSN TNKLHEYISP  60
STTTKKIYDQ YQKALGTDLW SAQYEKMQEQ LRKLKDINHK LKKEIRQRIG EDLNELSIDH  120
LCVLEQDMSE ALNGVRGRKY HVIKTQTDTC KKKVRSLEER HGNLRMEYEA RLEDPYGLVD  180
NEGDYESAAA LVNGVSNLYI CIPPAPRAAP PPAPPPAS*

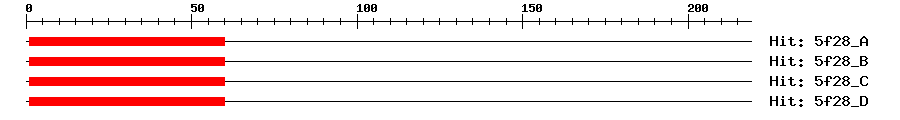

3D Structure ? help Back to Top
Structure
PDB ID Evalue Query Start Query End Hit Start Hit End Description
5f28_A1e-16160160MEF2C
5f28_B1e-16160160MEF2C
5f28_C1e-16160160MEF2C
5f28_D1e-16160160MEF2C
Search in ModeBase
Functional Description ? help Back to Top
Source Description
UniProtProbable transcription factor involved in flower development. {ECO:0000250|UniProtKB:Q0HA25}.
Binding Motif ? help Back to Top
Motif ID Method Source Motif file
MP00077ChIP-seqTransfer from AT3G54340Download
Motif logo
Cis-element ? help Back to Top
SourceLink
PlantRegMapSapurV1A.2002s0050.1.p
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieveRetrieve
Annotation -- Nucleotide ? help Back to Top
Source Hit ID E-value Description
GenBankAY3596065e-75AY359606.1 Populus tomentosa sex female APETALA3 (AP3) gene, complete cds.
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_024456101.11e-132floral homeotic protein PMADS 1
SwissprotQ003J21e-107TM6_VITVI; Agamous-like MADS-box protein TM6
TrEMBLA0A2K2AFH71e-130A0A2K2AFH7_POPTR; Uncharacterized protein
STRINGPOPTR_0005s12000.11e-111(Populus trichocarpa)
Orthologous Group ? help Back to Top
LineageOrthologous Group IDTaxa NumberGene Number
FabidsOGEF27353375
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT3G54340.11e-72MIKC_MADS family protein
Publications ? help Back to Top
  1. Jaillon O, et al.
    The grapevine genome sequence suggests ancestral hexaploidization in major angiosperm phyla.
    Nature, 2007. 449(7161): p. 463-7
    [PMID:17721507]
  2. Díaz-Riquelme J,Lijavetzky D,Martínez-Zapater JM,Carmona MJ
    Genome-wide analysis of MIKCC-type MADS box genes in grapevine.
    Plant Physiol., 2009. 149(1): p. 354-69
    [PMID:18997115]
  3. Grimplet J,Martínez-Zapater JM,Carmona MJ
    Structural and functional annotation of the MADS-box transcription factor family in grapevine.
    BMC Genomics, 2016. 17: p. 80
    [PMID:26818751]
