Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID Sevir.1G070700.1.p
Organism
Setaria viridis
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; Liliopsida; Petrosaviidae; commelinids; Poales; Poaceae; PACMAD clade; Panicoideae; Panicodae; Paniceae; Cenchrinae; Setaria
Family MIKC_MADS
Protein Properties Length: 250aa    MW: 28106.9 Da    PI: 6.5988
Description MIKC_MADS family protein
Gene Model
Gene Model ID Type Source Coding Sequence
Sevir.1G070700.1.pgenomeJGIView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1SRF-TF885.2e-28959151
                        S---SHHHHHHHHHHHHHHHHHHHHHHHHHHT-EEEEEEE-TTSEEEEEE- CS
              SRF-TF  1 krienksnrqvtfskRrngilKKAeELSvLCdaevaviifsstgklyeyss 51
                        krien++nrqvtfskRr g+lKKA+EL vLCda+v v+ifsstgk++ey+s
  Sevir.1G070700.1.p  9 KRIENSTNRQVTFSKRRGGLLKKANELAVLCDARVGVVIFSSTGKMFEYCS 59
                        79***********************************************96 PP
2K-box71.92e-24711711100
               K-box   1 yqkssgks.leeakaeslqqelakLkkeienLqreqRhllGedLesLslkeLqqLeqqLekslkkiRskKnellleqieelqkkekelqee 90
                         yq++++++  e ++ ++   e++++k+e+++L++ +R++ G+dL+sL+l +++ LeqqLe +++k+R++K++ll +q+++l++ke+ l+++
  Sevir.1G070700.1.p  71 YQHATNTHfEEMNQDQQVFVEMTQMKNEMDKLETGIRRYSGDDLSSLTLDDINDLEQQLEYAVNKVRARKHQLLNQQLDNLRRKEHILEDQ 161
                         56666666667788899999*********************************************************************** PP

               K-box  91 nkaLrkklee 100
                         n+ L +++ e
  Sevir.1G070700.1.p 162 NTFLYRMIHE 171
                         ****999875 PP

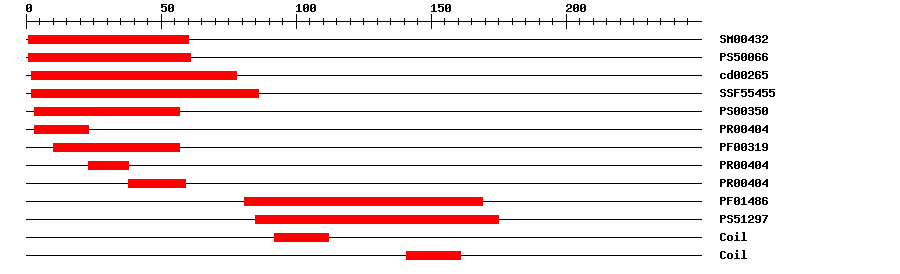

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
SMARTSM004321.5E-41160IPR002100Transcription factor, MADS-box
PROSITE profilePS5006632.226161IPR002100Transcription factor, MADS-box
CDDcd002657.89E-44278No hitNo description
SuperFamilySSF554551.31E-32286IPR002100Transcription factor, MADS-box
PROSITE patternPS003500357IPR002100Transcription factor, MADS-box
PRINTSPR004042.6E-29323IPR002100Transcription factor, MADS-box
PfamPF003191.3E-251057IPR002100Transcription factor, MADS-box
PRINTSPR004042.6E-292338IPR002100Transcription factor, MADS-box
PRINTSPR004042.6E-293859IPR002100Transcription factor, MADS-box
PfamPF014862.0E-2381169IPR002487Transcription factor, K-box
PROSITE profilePS5129714.41585175IPR002487Transcription factor, K-box
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0006355Biological Processregulation of transcription, DNA-templated
GO:0008360Biological Processregulation of cell shape
GO:0019252Biological Processstarch biosynthetic process
GO:0043068Biological Processpositive regulation of programmed cell death
GO:0048316Biological Processseed development
GO:0048481Biological Processplant ovule development
GO:0080155Biological Processregulation of double fertilization forming a zygote and endosperm
GO:2000029Biological Processregulation of proanthocyanidin biosynthetic process
GO:0005634Cellular Componentnucleus
GO:0003677Molecular FunctionDNA binding
GO:0003700Molecular Functiontranscription factor activity, sequence-specific DNA binding
GO:0046983Molecular Functionprotein dimerization activity
Sequence ? help Back to Top
Protein Sequence    Length: 250 aa     Download sequence    Send to blast
MGRGKIEIKR IENSTNRQVT FSKRRGGLLK KANELAVLCD ARVGVVIFSS TGKMFEYCSP  60
ACSLKELIEQ YQHATNTHFE EMNQDQQVFV EMTQMKNEMD KLETGIRRYS GDDLSSLTLD  120
DINDLEQQLE YAVNKVRARK HQLLNQQLDN LRRKEHILED QNTFLYRMIH ENQQAALGAE  180
VKLGEMAPLA MLPPPAFGAP HPGCYYGGES SSTAPQLHPD VGFRLQPAQP NLQQDPACGG  240
LHGHGLQLW*

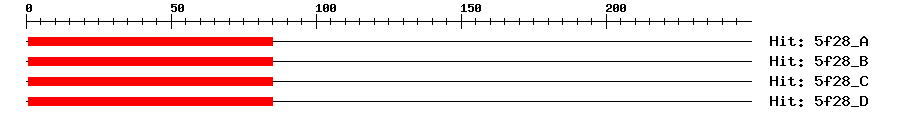

3D Structure ? help Back to Top
Structure
PDB ID Evalue Query Start Query End Hit Start Hit End Description
5f28_A6e-19185183MEF2C
5f28_B6e-19185183MEF2C
5f28_C6e-19185183MEF2C
5f28_D6e-19185183MEF2C
Search in ModeBase
Functional Description ? help Back to Top
Source Description
UniProtProbable transcription factor.
Cis-element ? help Back to Top
SourceLink
PlantRegMapSevir.1G070700.1.p
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieve-
Annotation -- Nucleotide ? help Back to Top
Source Hit ID E-value Description
GenBankAJ2712080.0AJ271208.1 Zea mays mRNA for putative MADS-domain transcription factor (m17 gene).
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_022679427.10.0MADS-box protein ZMM17
SwissprotQ8VWM81e-154M17_MAIZE; MADS-box protein ZMM17
TrEMBLK3YV870.0K3YV87_SETIT; Uncharacterized protein
STRINGSi018183m0.0(Setaria italica)
Orthologous Group ? help Back to Top
LineageOrthologous Group IDTaxa NumberGene Number
MonocotsOGMP185037100
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT5G23260.22e-44MIKC_MADS family protein
