Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID Sevir.3G099200.2.p
Organism
Setaria viridis
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; Liliopsida; Petrosaviidae; commelinids; Poales; Poaceae; PACMAD clade; Panicoideae; Panicodae; Paniceae; Cenchrinae; Setaria
Family MIKC_MADS
Protein Properties Length: 214aa    MW: 24457.9 Da    PI: 10.0127
Description MIKC_MADS family protein
Gene Model
Gene Model ID Type Source Coding Sequence
Sevir.3G099200.2.pgenomeJGIView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1SRF-TF73.31.9e-231056248
                        ---SHHHHHHHHHHHHHHHHHHHHHHHHHHT-EEEEEEE-TTSEEEE CS
              SRF-TF  2 rienksnrqvtfskRrngilKKAeELSvLCdaevaviifsstgklye 48
                        rien   r vtf kRr+g+lKKA ELSvLC+a+v viifsstg++++
  Sevir.3G099200.2.p 10 RIENPVHRRVTFRKRREGLLKKARELSVLCGADVGVIIFSSTGRVHD 56
                        8*******************************************997 PP
2K-box18.96.4e-0881166997
               K-box   9 leeakaeslqqelakLkkeienLqreqRhllGedLesLslkeLqqLeqqLekslkkiRskKnellleqieelqkkekelqeenkaLrkk 97
                          +++ ++  +q  + L+ ei  L +   +  Ge+ e ++l  L+ Le+ Le    + Rs+K  ++ ++i+ lq+ke  l+++n+ L++k
  Sevir.3G099200.2.p  81 SKNQRSQVTEQWTSLLRHEIGLLHHG-LRSTGEGAEGMKLDRLHALEKGLELWYYQTRSTK--IMQQEIHILQNKESLLKSANEILQQK 166
                         4455566677888999*******999.6678********************9888888865..9***********************98 PP

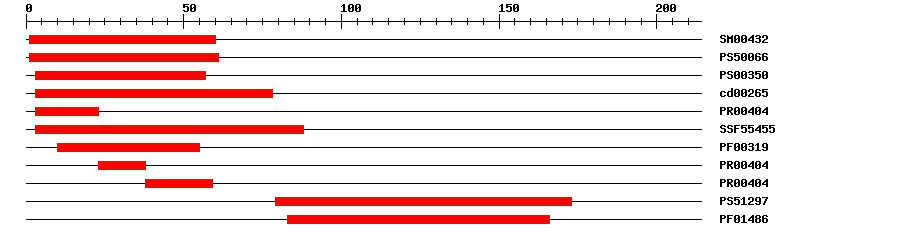

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
SMARTSM004325.1E-33160IPR002100Transcription factor, MADS-box
PROSITE profilePS5006627.922161IPR002100Transcription factor, MADS-box
PROSITE patternPS003500357IPR002100Transcription factor, MADS-box
CDDcd002655.86E-34378No hitNo description
PRINTSPR004042.0E-23323IPR002100Transcription factor, MADS-box
SuperFamilySSF554554.84E-27388IPR002100Transcription factor, MADS-box
PfamPF003199.7E-231055IPR002100Transcription factor, MADS-box
PRINTSPR004042.0E-232338IPR002100Transcription factor, MADS-box
PRINTSPR004042.0E-233859IPR002100Transcription factor, MADS-box
PROSITE profilePS512976.69679173IPR002487Transcription factor, K-box
PfamPF014867.9E-883166IPR002487Transcription factor, K-box
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0006355Biological Processregulation of transcription, DNA-templated
GO:0005634Cellular Componentnucleus
GO:0003677Molecular FunctionDNA binding
GO:0003700Molecular Functiontranscription factor activity, sequence-specific DNA binding
GO:0046983Molecular Functionprotein dimerization activity
Sequence ? help Back to Top
Protein Sequence    Length: 214 aa     Download sequence    Send to blast
MVRGKVQMRR IENPVHRRVT FRKRREGLLK KARELSVLCG ADVGVIIFSS TGRVHDLATN  60
GNMQSLVERY QSITARGQME SKNQRSQVTE QWTSLLRHEI GLLHHGLRST GEGAEGMKLD  120
RLHALEKGLE LWYYQTRSTK IMQQEIHILQ NKESLLKSAN EILQQKEGIL KAANEILQNK  180
VNEQNQFMNN CSFFSGSPYS THYDANESCL FTI*
Functional Description ? help Back to Top
Source Description
UniProtProbable transcription factor.
Cis-element ? help Back to Top
SourceLink
PlantRegMapSevir.3G099200.2.p
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieve-
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_025807983.11e-138MADS-box transcription factor 33-like isoform X2
SwissprotQ2QW551e-75MAD33_ORYSJ; MADS-box transcription factor 33
TrEMBLA0A368QDE71e-153A0A368QDE7_SETIT; Uncharacterized protein
STRINGPavir.Ca00337.1.p7e-86(Panicum virgatum)
STRINGPavir.Cb01900.1.p4e-86(Panicum virgatum)
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT1G71692.19e-40AGAMOUS-like 12
