Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID Sevir.5G450300.1.p
Organism
Setaria viridis
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; Liliopsida; Petrosaviidae; commelinids; Poales; Poaceae; PACMAD clade; Panicoideae; Panicodae; Paniceae; Cenchrinae; Setaria
Family NF-YB
Protein Properties Length: 172aa    MW: 17924.9 Da    PI: 6.5097
Description NF-YB family protein
Gene Model
Gene Model ID Type Source Coding Sequence
Sevir.5G450300.1.pgenomeJGIView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1NF-YB176.23.2e-5520115297
               NF-YB   2 reqdrflPianvsrimkkvlPanakiskdaketvqecvsefisfvtseasdkcqrekrktingddllwalatlGfedyveplkvylkkyre 92
                         +eqdr+lPianv+rimk++lP nakisk+aket+qecvsefisfvt+easdkc++ekrkt+ngdd++wa++ lGf+dyv+p++ yl+kyre
  Sevir.5G450300.1.p  20 KEQDRLLPIANVGRIMKQILPPNAKISKEAKETMQECVSEFISFVTGEASDKCHKEKRKTVNGDDVCWAFGALGFDDYVDPMRRYLHKYRE 110
                         89***************************************************************************************** PP

               NF-YB  93 legek 97
                         leg++
  Sevir.5G450300.1.p 111 LEGDR 115
                         ***97 PP

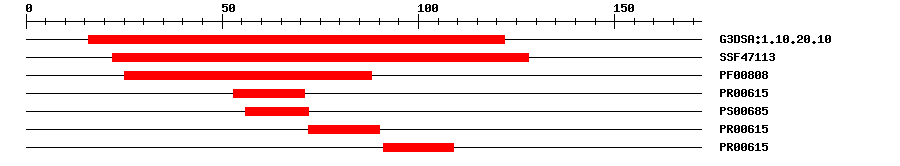

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
Gene3DG3DSA:1.10.20.107.5E-5116122IPR009072Histone-fold
SuperFamilySSF471135.74E-3922128IPR009072Histone-fold
PfamPF008085.0E-272588IPR003958Transcription factor CBF/NF-Y/archaeal histone domain
PRINTSPR006151.8E-175371No hitNo description
PROSITE patternPS0068505672IPR003956Transcription factor, NFYB/HAP3, conserved site
PRINTSPR006151.8E-177290No hitNo description
PRINTSPR006151.8E-1791109No hitNo description
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0006355Biological Processregulation of transcription, DNA-templated
GO:0005634Cellular Componentnucleus
GO:0043565Molecular Functionsequence-specific DNA binding
GO:0046982Molecular Functionprotein heterodimerization activity
Sequence ? help Back to Top
Protein Sequence    Length: 172 aa     Download sequence    Send to blast
MADHHGQPPG GGGGGAEEIK EQDRLLPIAN VGRIMKQILP PNAKISKEAK ETMQECVSEF  60
ISFVTGEASD KCHKEKRKTV NGDDVCWAFG ALGFDDYVDP MRRYLHKYRE LEGDRAAAAA  120
SSRGGGPPGP DHPSTSGGPG AGAGPGPSGG GGGHFMFGAM DRSDNNSSRP F*

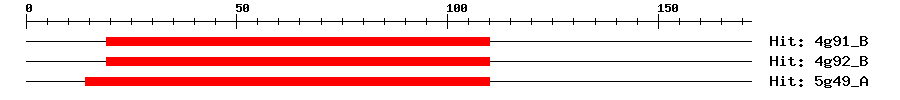

3D Structure ? help Back to Top
Structure
PDB ID Evalue Query Start Query End Hit Start Hit End Description
4g91_B3e-4419110192Transcription factor HapC (Eurofung)
4g92_B3e-4419110192Transcription factor HapC (Eurofung)
5g49_A4e-4414110197NUCLEAR TRANSCRIPTION FACTOR Y SUBUNIT B-6
Search in ModeBase
Functional Description ? help Back to Top
Source Description
UniProtComponent of the NF-Y/HAP transcription factor complex. The NF-Y complex stimulates the transcription of various genes by recognizing and binding to a CCAAT motif in promoters.
Cis-element ? help Back to Top
SourceLink
PlantRegMapSevir.5G450300.1.p
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieve-
Annotation -- Nucleotide ? help Back to Top
Source Hit ID E-value Description
GenBankEU9701981e-143EU970198.1 Zea mays clone 342117 mRNA sequence.
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_004971188.11e-123nuclear transcription factor Y subunit B-1
SwissprotO822483e-57NFYB5_ARATH; Nuclear transcription factor Y subunit B-5
TrEMBLK3XSH51e-122K3XSH5_SETIT; Uncharacterized protein
STRINGSi004874m1e-123(Setaria italica)
Orthologous Group ? help Back to Top
LineageOrthologous Group IDTaxa NumberGene Number
MonocotsOGMP29173887
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT2G47810.18e-57nuclear factor Y, subunit B5
Publications ? help Back to Top
  1. Zhao H, et al.
    The Arabidopsis thaliana Nuclear Factor Y Transcription Factors.
    Front Plant Sci, 2016. 7: p. 2045
    [PMID:28119722]
