Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID Sevir.9G087300.1.p
Organism
Setaria viridis
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; Liliopsida; Petrosaviidae; commelinids; Poales; Poaceae; PACMAD clade; Panicoideae; Panicodae; Paniceae; Cenchrinae; Setaria
Family MIKC_MADS
Protein Properties Length: 250aa    MW: 28473.6 Da    PI: 9.8045
Description MIKC_MADS family protein
Gene Model
Gene Model ID Type Source Coding Sequence
Sevir.9G087300.1.pgenomeJGIView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1SRF-TF98.33.1e-31959151
                        S---SHHHHHHHHHHHHHHHHHHHHHHHHHHT-EEEEEEE-TTSEEEEEE- CS
              SRF-TF  1 krienksnrqvtfskRrngilKKAeELSvLCdaevaviifsstgklyeyss 51
                        krienk+nrqvtfskRr g+lKKA+E+SvLCdaeva+iifs++gklye+++
  Sevir.9G087300.1.p  9 KRIENKINRQVTFSKRRSGLLKKAHEISVLCDAEVALIIFSTKGKLYEFAT 59
                        79***********************************************86 PP
2K-box1072.2e-3578173499
               K-box   4 ssgksleeakaeslqqelakLkkeienLqreqRhllGedLesLslkeLqqLeqqLekslkkiRskKnellleqieelqkkekelqeenkaL 94
                         +   s+e++++ ++++e++kLk+++e++q+ q+hl+GedLe+L+lkeLqqLeqqLe+slk+iRs+K++l++e+i+elq+kek+lqeenk L
  Sevir.9G087300.1.p  78 KVLISAESETQGNWCHEYRKLKAKVETIQKCQKHLMGEDLETLNLKELQQLEQQLESSLKHIRSRKSQLMMESISELQRKEKSLQEENKVL 168
                         555667888999******************************************************************************* PP

               K-box  95 rkkle 99
                         +k+l
  Sevir.9G087300.1.p 169 QKELV 173
                         *9985 PP

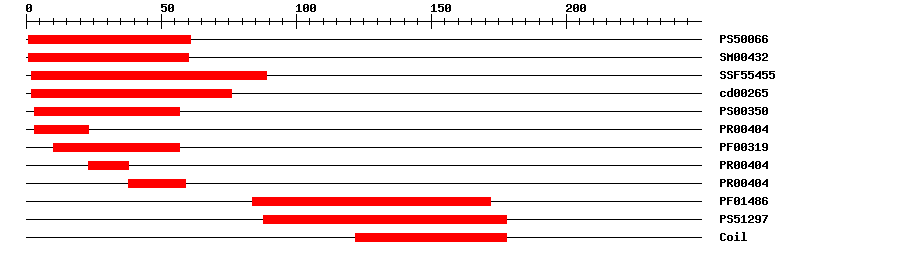

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
PROSITE profilePS5006633.291161IPR002100Transcription factor, MADS-box
SMARTSM004325.5E-41160IPR002100Transcription factor, MADS-box
SuperFamilySSF554551.31E-34289IPR002100Transcription factor, MADS-box
CDDcd002659.26E-43276No hitNo description
PROSITE patternPS003500357IPR002100Transcription factor, MADS-box
PRINTSPR004045.6E-32323IPR002100Transcription factor, MADS-box
PfamPF003191.2E-251057IPR002100Transcription factor, MADS-box
PRINTSPR004045.6E-322338IPR002100Transcription factor, MADS-box
PRINTSPR004045.6E-323859IPR002100Transcription factor, MADS-box
PfamPF014862.7E-3084172IPR002487Transcription factor, K-box
PROSITE profilePS5129717.80188178IPR002487Transcription factor, K-box
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0009933Biological Processmeristem structural organization
GO:0010076Biological Processmaintenance of floral meristem identity
GO:0010582Biological Processfloral meristem determinacy
GO:0045893Biological Processpositive regulation of transcription, DNA-templated
GO:0005634Cellular Componentnucleus
GO:0003677Molecular FunctionDNA binding
GO:0003700Molecular Functiontranscription factor activity, sequence-specific DNA binding
GO:0046982Molecular Functionprotein heterodimerization activity
Sequence ? help Back to Top
Protein Sequence    Length: 250 aa     Download sequence    Send to blast
MGRGKVQLKR IENKINRQVT FSKRRSGLLK KAHEISVLCD AEVALIIFST KGKLYEFATD  60
SCMDKILERY ERYSYAEKVL ISAESETQGN WCHEYRKLKA KVETIQKCQK HLMGEDLETL  120
NLKELQQLEQ QLESSLKHIR SRKSQLMMES ISELQRKEKS LQEENKVLQK ELVEKQKGQR  180
QQPQWDQTPQ QTSSSSSSFM MREAPPATNI SSYPVPVAAG GGRVEGAAPQ PQPQARIGLP  240
PWMLSHLSS*
3D Structure ? help Back to Top
Structure
PDB ID Evalue Query Start Query End Hit Start Hit End Description
6byy_A3e-23174173MEF2 CHIMERA
6byy_B3e-23174173MEF2 CHIMERA
6byy_C3e-23174173MEF2 CHIMERA
6byy_D3e-23174173MEF2 CHIMERA
6bz1_A3e-23174173MEF2 CHIMERA
6bz1_B3e-23174173MEF2 CHIMERA
6bz1_C3e-23174173MEF2 CHIMERA
6bz1_D3e-23174173MEF2 CHIMERA
Search in ModeBase
Functional Description ? help Back to Top
Source Description
UniProtProbable transcription factor. May be involved in the control of flowering time. {ECO:0000269|Ref.9}.
Binding Motif ? help Back to Top
Motif ID Method Source Motif file
MP00096ChIP-seqTransfer from AT1G69120Download
Motif logo
Cis-element ? help Back to Top
SourceLink
PlantRegMapSevir.9G087300.1.p
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieveRetrieve
Annotation -- Nucleotide ? help Back to Top
Source Hit ID E-value Description
GenBankDQ7929760.0DQ792976.1 Setaria italica fruitful-like MADS-box transcription factor (FUL1) mRNA, partial cds.
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_004981740.10.0MADS-box transcription factor 14 isoform X1
SwissprotQ10CQ11e-135MAD14_ORYSJ; MADS-box transcription factor 14
TrEMBLA0A368SEI90.0A0A368SEI9_SETIT; Uncharacterized protein
STRINGPavir.J03093.1.p1e-136(Panicum virgatum)
Orthologous Group ? help Back to Top
LineageOrthologous Group IDTaxa NumberGene Number
MonocotsOGMP115137113
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT1G69120.14e-77MIKC_MADS family protein
Publications ? help Back to Top
  1. Jia H, et al.
    Characterization and transcriptional profiles of two rice MADS-box genes.
    Plant Sci., 2000. 155(2): p. 115-122
    [PMID:10814814]
  2. Jang S,An K,Lee S,An G
    Characterization of tobacco MADS-box genes involved in floral initiation.
    Plant Cell Physiol., 2002. 43(2): p. 230-8
    [PMID:11867703]
  3. Kim SL,Lee S,Kim HJ,Nam HG,An G
    OsMADS51 is a short-day flowering promoter that functions upstream of Ehd1, OsMADS14, and Hd3a.
    Plant Physiol., 2007. 145(4): p. 1484-94
    [PMID:17951465]
  4. Li D, et al.
    Functional characterization of rice OsDof12.
    Planta, 2009. 229(6): p. 1159-69
    [PMID:19198875]
  5. Tanaka N, et al.
    The COP1 ortholog PPS regulates the juvenile-adult and vegetative-reproductive phase changes in rice.
    Plant Cell, 2011. 23(6): p. 2143-54
    [PMID:21705640]
  6. Kobayashi K, et al.
    Inflorescence meristem identity in rice is specified by overlapping functions of three AP1/FUL-like MADS box genes and PAP2, a SEPALLATA MADS box gene.
    Plant Cell, 2012. 24(5): p. 1848-59
    [PMID:22570445]
  7. Wei X, et al.
    Fine mapping of BH1, a gene controlling lemma and palea development in rice.
    Plant Cell Rep., 2013. 32(9): p. 1455-63
    [PMID:23689259]
  8. Su L,Shan JX,Gao JP,Lin HX
    OsHAL3, a Blue Light-Responsive Protein, Interacts with the Floral Regulator Hd1 to Activate Flowering in Rice.
    Mol Plant, 2016. 9(2): p. 233-244
    [PMID:26537047]
  9. Wu F, et al.
    The ABCs of flower development: mutational analysis of AP1/FUL-like genes in rice provides evidence for a homeotic (A)-function in grasses.
    Plant J., 2017. 89(2): p. 310-324
    [PMID:27689766]
