Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID Sof005113
Organism
Saccharum officinarum
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; Liliopsida; Petrosaviidae; commelinids; Poales; Poaceae; PACMAD clade; Panicoideae; Andropogonodae; Andropogoneae; Saccharinae; Saccharum; Saccharum officinarum complex
Family HSF
Protein Properties Length: 175aa    MW: 19050 Da    PI: 10.052
Description HSF family protein
Gene Model
Gene Model ID Type Source Coding Sequence
gnl|UG|Sof#S17251457PU_unrefUnigeneView CDS
PUT-157a-Saccharum_officinarum-126389PU_refplantGDBView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1HSF_DNA-bind1087.1e-34231142102
                   HHHHHHHHHCTGGGTTTSEESSSSSEEEES-HHHHHHHTHHHHSTT--HHHHHHHHHHTTEEE---SSBTTTTXTTSEEEEESXXXXXXXXXXXXXX CS
  HSF_DNA-bind   2 FlkklyeiledeelkeliswsengnsfvvldeeefakkvLpkyFkhsnfaSFvRQLnmYgFkkvkdeekkskskekiweFkhksFkkgkkellekik 98
                   F+ k+y++++d++++ +i w +++nsfvv d+  f++++Lp +Fkhsnf+SFvRQLn+YgF+kv+ ++         weF+h sF +g+++l+++i
     Sof005113  23 FVAKTYRMVDDPATDAVIAWGRDNNSFVVADPFVFSQTLLPAHFKHSNFSSFVRQLNTYGFRKVDPDR---------WEFAHVSFLRGQTHLMSQIV 110
                   9****************************************************************999.........******************** PP

                   XXXX CS
  HSF_DNA-bind  99 rkks 102
                   r++s
     Sof005113 111 RRSS 114
                   *987 PP

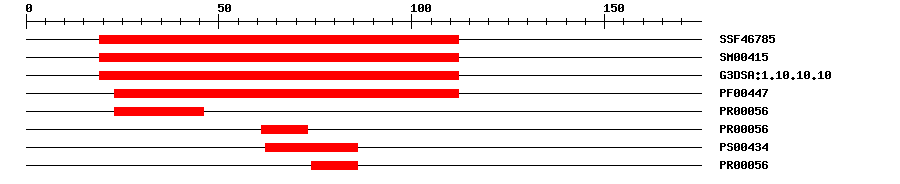

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
SuperFamilySSF467855.58E-3319112IPR011991Winged helix-turn-helix DNA-binding domain
SMARTSM004151.6E-5219112IPR000232Heat shock factor (HSF)-type, DNA-binding
Gene3DG3DSA:1.10.10.101.2E-3719112IPR011991Winged helix-turn-helix DNA-binding domain
PfamPF004478.7E-3023112IPR000232Heat shock factor (HSF)-type, DNA-binding
PRINTSPR000561.9E-182346IPR000232Heat shock factor (HSF)-type, DNA-binding
PRINTSPR000561.9E-186173IPR000232Heat shock factor (HSF)-type, DNA-binding
PROSITE patternPS0043406286IPR000232Heat shock factor (HSF)-type, DNA-binding
PRINTSPR000561.9E-187486IPR000232Heat shock factor (HSF)-type, DNA-binding
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0006355Biological Processregulation of transcription, DNA-templated
GO:0005634Cellular Componentnucleus
GO:0003700Molecular Functiontranscription factor activity, sequence-specific DNA binding
GO:0043565Molecular Functionsequence-specific DNA binding
Sequence ? help Back to Top
Protein Sequence    Length: 175 aa     Download sequence    Send to blast
MDDRTTATNG GGAAVNAAGV APFVAKTYRM VDDPATDAVI AWGRDNNSFV VADPFVFSQT  60
LLPAHFKHSN FSSFVRQLNT YGFRKVDPDR WEFAHVSFLR GQTHLMSQIV RRSSGGNGGG  120
KRNKDDVVCT GNVNAVDEDA VATEVVRLRR EQRAIKEQVA RDVAPRAGNG PPAKX

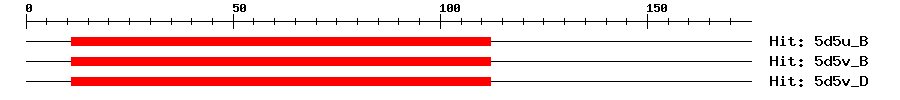

3D Structure ? help Back to Top
Structure
PDB ID Evalue Query Start Query End Hit Start Hit End Description
5d5u_B7e-251111217129Heat shock factor protein 1
5d5v_B7e-251111217129Heat shock factor protein 1
5d5v_D7e-251111217129Heat shock factor protein 1
Search in ModeBase
Expression -- UniGene ? help Back to Top
UniGene ID E-value Expressed in
Sof.111240.0bud| callus| inflorescence| root| stem
Functional Description ? help Back to Top
Source Description
UniProtTranscriptional regulator that specifically binds DNA of heat shock promoter elements (HSE). {ECO:0000250}.
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqNP_001152657.16e-79heat shock factor protein 1
SwissprotQ6EUG42e-69HFC2A_ORYSJ; Heat stress transcription factor C-2a
TrEMBLB4FXG75e-78B4FXG7_MAIZE; Heat stress transcription factor C-1
STRINGGRMZM2G105348_P018e-79(Zea mays)
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT3G24520.11e-43heat shock transcription factor C1
Publications ? help Back to Top
  1. Kikuchi S, et al.
    Collection, mapping, and annotation of over 28,000 cDNA clones from japonica rice.
    Science, 2003. 301(5631): p. 376-9
    [PMID:12869764]
