Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID Sof017542
Organism
Saccharum officinarum
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; Liliopsida; Petrosaviidae; commelinids; Poales; Poaceae; PACMAD clade; Panicoideae; Andropogonodae; Andropogoneae; Saccharinae; Saccharum; Saccharum officinarum complex
Family HSF
Protein Properties Length: 171aa    MW: 19688.6 Da    PI: 5.3331
Description HSF family protein
Gene Model
Gene Model ID Type Source Coding Sequence
PUT-157a-Saccharum_officinarum-26936PU_refplantGDBView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1HSF_DNA-bind110.99.2e-35141042101
                   HHHHHHHHHCTGGGTTTSEESSSSSEEEES-HHHHHHHTHHHHSTT--HHHHHHHHHHTTEEE---SSBTTTTXTTSEEEEESXXXXXXXXXXXXXX CS
  HSF_DNA-bind   2 FlkklyeiledeelkeliswsengnsfvvldeeefakkvLpkyFkhsnfaSFvRQLnmYgFkkvkdeekkskskekiweFkhksFkkgkkellekik 98
                   Fl+k+ye+++d++++ ++ w+  g+sfvv ++ ef +++LpkyFkh+nf+SFvRQLn+YgF+k++ e+         weF+++ F +g+++ l++i+
     Sof017542  14 FLSKTYEMVDDPATDAVVAWTPPGTSFVVANQAEFCRDLLPKYFKHNNFSSFVRQLNTYGFRKIDPEQ---------WEFANEDFIRGERHRLKNIH 101
                   9***************************************************************9998.........******************** PP

                   XXX CS
  HSF_DNA-bind  99 rkk 101
                   r+k
     Sof017542 102 RRK 104
                   *98 PP

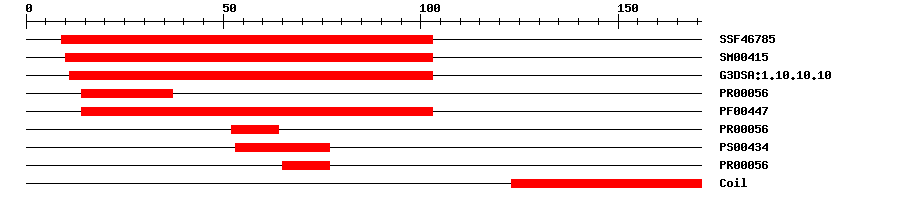

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
SuperFamilySSF467858.8E-359103IPR011991Winged helix-turn-helix DNA-binding domain
SMARTSM004156.8E-6010103IPR000232Heat shock factor (HSF)-type, DNA-binding
Gene3DG3DSA:1.10.10.101.4E-3711103IPR011991Winged helix-turn-helix DNA-binding domain
PRINTSPR000561.6E-211437IPR000232Heat shock factor (HSF)-type, DNA-binding
PfamPF004472.5E-3114103IPR000232Heat shock factor (HSF)-type, DNA-binding
PRINTSPR000561.6E-215264IPR000232Heat shock factor (HSF)-type, DNA-binding
PROSITE patternPS0043405377IPR000232Heat shock factor (HSF)-type, DNA-binding
PRINTSPR000561.6E-216577IPR000232Heat shock factor (HSF)-type, DNA-binding
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0006355Biological Processregulation of transcription, DNA-templated
GO:0005634Cellular Componentnucleus
GO:0003700Molecular Functiontranscription factor activity, sequence-specific DNA binding
GO:0043565Molecular Functionsequence-specific DNA binding
Sequence ? help Back to Top
Protein Sequence    Length: 171 aa     Download sequence    Send to blast
MEAGGGGAXS LPPFLSKTYE MVDDPATDAV VAWTPPGTSF VVANQAEFCR DLLPKYFKHN  60
NFSSFVRQLN TYGFRKIDPE QWEFANEDFI RGERHRLKNI HRRKPIFSHS SHTGSGPLAD  120
TERRDYEEEI ERLKSDNAAL TSELENNAHK ILVTENRVRD LEDQLIFLED R
3D Structure ? help Back to Top
Structure
PDB ID Evalue Query Start Query End Hit Start Hit End Description
5d5u_B5e-30410319129Heat shock factor protein 1
5d5v_B5e-30410319129Heat shock factor protein 1
5d5v_D5e-30410319129Heat shock factor protein 1
Search in ModeBase
Functional Description ? help Back to Top
Source Description
UniProtTranscriptional regulator that specifically binds DNA of heat shock promoter elements (HSE). {ECO:0000250}.
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_002456359.11e-117heat stress transcription factor A-4b
SwissprotQ94J167e-95HFA4B_ORYSJ; Heat stress transcription factor A-4b
TrEMBLA0A1W0VZI61e-116A0A1W0VZI6_SORBI; Uncharacterized protein
TrEMBLC5XK401e-115C5XK40_SORBI; Uncharacterized protein
STRINGSb03g034630.11e-116(Sorghum bicolor)
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT5G45710.17e-60HSF family protein
Publications ? help Back to Top
  1. Kikuchi S, et al.
    Collection, mapping, and annotation of over 28,000 cDNA clones from japonica rice.
    Science, 2003. 301(5631): p. 376-9
    [PMID:12869764]
  2. Shim D, et al.
    Orthologs of the class A4 heat shock transcription factor HsfA4a confer cadmium tolerance in wheat and rice.
    Plant Cell, 2009. 21(12): p. 4031-43
    [PMID:20028842]
  3. Guan JC, et al.
    A 9 bp cis-element in the promoters of class I small heat shock protein genes on chromosome 3 in rice mediates L-azetidine-2-carboxylic acid and heat shock responses.
    J. Exp. Bot., 2010. 61(15): p. 4249-61
    [PMID:20643810]
