Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID Solyc02g067760.2.1
Common NameLOC101258522
Organism
Solanum lycopersicum
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; asterids; lamiids; Solanales; Solanaceae; Solanoideae; Solaneae; Solanum; Lycopersicon
Family MYB
Protein Properties Length: 196aa    MW: 22413.9 Da    PI: 6.3581
Description MYB family protein
Gene Model
Gene Model ID Type Source Coding Sequence
Solyc02g067760.2.1genomeITAGView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1Myb_DNA-binding55.61.2e-171461148
                        TSSS-HHHHHHHHHHHHHTTTT-HHHHHHHHTTTS-HHHHHHHHHHHT CS
     Myb_DNA-binding  1 rgrWTteEdellvdavkqlGggtWktIartmgkgRtlkqcksrwqkyl 48
                        +g+WT eEd++l+++++ +G g W++ a+  g++Rt+k+c++rw++yl
  Solyc02g067760.2.1 14 KGPWTMEEDLILINYIANHGEGVWNSLAKSAGLKRTGKSCRLRWLNYL 61
                        79********************************************97 PP
2Myb_DNA-binding55.41.4e-1767110146
                         TSSS-HHHHHHHHHHHHHTTTT-HHHHHHHHTTTS-HHHHHHHHHH CS
     Myb_DNA-binding   1 rgrWTteEdellvdavkqlGggtWktIartmgkgRtlkqcksrwqk 46
                         rg+ T+eE++l+ ++++++G++ W++Ia++++ gRt++++k++w++
  Solyc02g067760.2.1  67 RGNITPEEQLLIMELHAKWGNK-WSKIAKHLP-GRTDNEIKNYWRT 110
                         7999******************.*********.***********96 PP

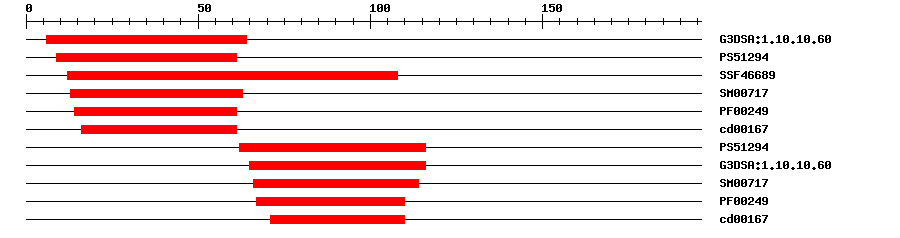

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
Gene3DG3DSA:1.10.10.607.7E-24664IPR009057Homeodomain-like
PROSITE profilePS5129415.919961IPR017930Myb domain
SuperFamilySSF466899.73E-3112108IPR009057Homeodomain-like
SMARTSM007178.1E-131363IPR001005SANT/Myb domain
PfamPF002491.3E-161461IPR001005SANT/Myb domain
CDDcd001673.67E-101661No hitNo description
PROSITE profilePS5129425.80862116IPR017930Myb domain
Gene3DG3DSA:1.10.10.603.4E-2565116IPR009057Homeodomain-like
SMARTSM007175.2E-1566114IPR001005SANT/Myb domain
PfamPF002491.7E-1667110IPR001005SANT/Myb domain
CDDcd001679.61E-1271110No hitNo description
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0009740Biological Processgibberellic acid mediated signaling pathway
GO:0009867Biological Processjasmonic acid mediated signaling pathway
GO:0080086Biological Processstamen filament development
GO:0003677Molecular FunctionDNA binding
Sequence ? help Back to Top
Protein Sequence    Length: 196 aa     Download sequence    Send to blast
MDKICNSQDV EVRKGPWTME EDLILINYIA NHGEGVWNSL AKSAGLKRTG KSCRLRWLNY  60
LRPDVRRGNI TPEEQLLIME LHAKWGNKWS KIAKHLPGRT DNEIKNYWRT RIQKHIKQGE  120
NMNGQGSSEQ NIDHQEGSSS QISSVGQADN IETYSPTSYN GNLDTNFQAS NFLNETNDNM  180
WSMEDIWSMQ LLNGD*
3D Structure ? help Back to Top
Structure
PDB ID Evalue Query Start Query End Hit Start Hit End Description
1h8a_C2e-251111624128MYB TRANSFORMING PROTEIN
Search in ModeBase
Expression -- UniGene ? help Back to Top
UniGene ID E-value Expressed in
Les.105350.0floral bud| flower
Expression -- Microarray ? help Back to Top
Source ID E-value
GEO43819470.0
Expression -- Description ? help Back to Top
Source Description
UniprotDEVELOPMENTAL STAGE: First detected in 15-20 mm buds. Expression increases as flowers develop. {ECO:0000269|PubMed:1840903}.
UniprotTISSUE SPECIFICITY: Expressed only in flowers. {ECO:0000269|PubMed:1840903}.
Functional Description ? help Back to Top
Source Description
UniProtTranscription factor. {ECO:0000305}.
Function -- GeneRIF ? help Back to Top
  1. Jasmonic acid facilitates flower opening and floral organ development through the upregulated expression of SlMYB21 transcription factor in tomato. [SlMYB21]
    [PMID: 29448919]
Cis-element ? help Back to Top
SourceLink
PlantRegMapSolyc02g067760.2.1
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieve-
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqNP_001351943.11e-144R2R3-type MYB transcription factor 21
SwissprotP813911e-103MYB05_ANTMA; Myb-related protein 305
TrEMBLA0A3Q7FLV31e-142A0A3Q7FLV3_SOLLC; Uncharacterized protein
STRINGSolyc02g067760.2.11e-143(Solanum lycopersicum)
Orthologous Group ? help Back to Top
LineageOrthologous Group IDTaxa NumberGene Number
AsteridsOGEA12242154
Representative plantOGRP5171784
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT3G27810.15e-86myb domain protein 21
Publications ? help Back to Top
  1. Wang Y,van der Hoeven RS,Nielsen R,Mueller LA,Tanksley SD
    Characteristics of the tomato nuclear genome as determined by sequencing undermethylated EcoRI digested fragments.
    Theor. Appl. Genet., 2005. 112(1): p. 72-84
    [PMID:16208505]
  2. Jackson D,Culianez-Macia F,Prescott AG,Roberts K,Martin C
    Expression patterns of myb genes from Antirrhinum flowers.
    Plant Cell, 1991. 3(2): p. 115-25
    [PMID:1840903]
  3. Niwa T, et al.
    Jasmonic acid facilitates flower opening and floral organ development through the upregulated expression of SlMYB21 transcription factor in tomato.
    Biosci. Biotechnol. Biochem., 2018. 82(2): p. 292-303
    [PMID:29448919]
