Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID Tp3g13470
Organism
Thellungiella parvula
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; rosids; malvids; Brassicales; Brassicaceae; Brassicaceae incertae sedis; Schrenkiella
Family SBP
Protein Properties Length: 181aa    MW: 21076.6 Da    PI: 9.9353
Description SBP family protein
Gene Model
Gene Model ID Type Source Coding Sequence
Tp3g13470genomethellungiellaView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1SBP1339.6e-4263138277
                -SSTT-----TT--HHHHHTT--HHHHT-S-EEETTEEEEE-TTTSSEEETTT--SS--S-STTTT-------S-- CS
        SBP   2 CqvegCeadlseakeyhrrhkvCevhskapvvlvsgleqrfCqqCsrfhelsefDeekrsCrrrLakhnerrrkkq 77
                Cqv++C+a+l+eak+y+rrh+vCevh+ka++++v+g +qrfCqqCsrfhel efDe+krsCrrrLa+hnerrrk +
  Tp3g13470  63 CQVDRCTANLTEAKQYYRRHRVCEVHAKASAATVAGAKQRFCQQCSRFHELPEFDEAKRSCRRRLAGHNERRRKIS 138
                **************************************************************************86 PP

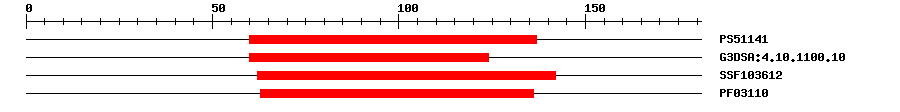

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
PROSITE profilePS5114131.47960137IPR004333Transcription factor, SBP-box
Gene3DG3DSA:4.10.1100.102.9E-3260124IPR004333Transcription factor, SBP-box
SuperFamilySSF1036122.35E-3862142IPR004333Transcription factor, SBP-box
PfamPF031107.6E-3263136IPR004333Transcription factor, SBP-box
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0010321Biological Processregulation of vegetative phase change
GO:0005634Cellular Componentnucleus
GO:0003677Molecular FunctionDNA binding
Sequence ? help Back to Top
Protein Sequence    Length: 181 aa     Download sequence    Send to blast
MEGKRSQRWD YLKDKVIISN LVEEEMENGM DGEEEDEGYE DKRKRVTERA KGPSTDRVPS  60
RLCQVDRCTA NLTEAKQYYR RHRVCEVHAK ASAATVAGAK QRFCQQCSRF HELPEFDEAK  120
RSCRRRLAGH NERRRKISAD SFGEGSGRRG FSGQLIQTQE RNRVDMKLPM TNSSFKRSQI  180
R
3D Structure ? help Back to Top
Structure
PDB ID Evalue Query Start Query End Hit Start Hit End Description
1ul4_A2e-3961136984squamosa promoter binding protein-like 4
Search in ModeBase
Functional Description ? help Back to Top
Source Description
UniProtTrans-acting factor that binds specifically to the consensus nucleotide sequence 5'-TNCGTACAA-3' of AP1 promoter. Promotes both vegetative phase change and flowering. {ECO:0000269|PubMed:10524240, ECO:0000269|PubMed:16914499}.
Binding Motif ? help Back to Top
Motif ID Method Source Motif file
MP00359DAPTransfer from AT3G15270Download
Motif logo
Cis-element ? help Back to Top
SourceLink
PlantRegMapTp3g13470
Regulation -- Description ? help Back to Top
Source Description
UniProtINDUCTION: Negatively regulated by microRNAs miR156. {ECO:0000269|PubMed:16914499}.
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieveRetrieve
Annotation -- Nucleotide ? help Back to Top
Source Hit ID E-value Description
GenBankAJ0116100.0AJ011610.1 Arabidopsis thaliana (ecotype Landsberg erecta) mRNA for squamosa promoter binding protein-like 5.
GenBankAJ2429600.0AJ242960.1 Arabidopsis thaliana mRNA for Squamosa promoter binding protein-like 5, (SPL5 gene).
GenBankAK1186110.0AK118611.1 Arabidopsis thaliana At3g15270 mRNA for squamosa promoter binding protein-like 5, putative, complete cds, clone: RAFL19-86-N19.
GenBankBT0037140.0BT003714.1 Arabidopsis thaliana At3g15270 mRNA, complete cds.
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_010487346.11e-113PREDICTED: squamosa promoter-binding-like protein 5
SwissprotQ9S7581e-108SPL5_ARATH; Squamosa promoter-binding-like protein 5
TrEMBLR0G7J61e-110R0G7J6_9BRAS; Uncharacterized protein (Fragment)
STRINGXP_010487346.11e-113(Camelina sativa)
Orthologous Group ? help Back to Top
LineageOrthologous Group IDTaxa NumberGene Number
MalvidsOGEM86828118
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT3G15270.11e-83squamosa promoter binding protein-like 5
Publications ? help Back to Top
  1. Jorgensen SA,Preston JC
    Differential SPL gene expression patterns reveal candidate genes underlying flowering time and architectural differences in Mimulus and Arabidopsis.
    Mol. Phylogenet. Evol., 2014. 73: p. 129-39
    [PMID:24508602]
  2. Xu M, et al.
    Developmental Functions of miR156-Regulated SQUAMOSA PROMOTER BINDING PROTEIN-LIKE (SPL) Genes in Arabidopsis thaliana.
    PLoS Genet., 2016. 12(8): p. e1006263
    [PMID:27541584]
  3. Ioannidi E, et al.
    Trichome patterning control involves TTG1 interaction with SPL transcription factors.
    Plant Mol. Biol., 2016. 92(6): p. 675-687
    [PMID:27631431]
  4. Jung JH,Lee HJ,Ryu JY,Park CM
    SPL3/4/5 Integrate Developmental Aging and Photoperiodic Signals into the FT-FD Module in Arabidopsis Flowering.
    Mol Plant, 2016. 9(12): p. 1647-1659
    [PMID:27815142]
