PlantTFDB - Plant Transcription Factor Database @ CBI, PKU

PlantRegMap/PlantTFDB v5.0

Plant Transcription Factor Database

Transcription Factor Information

Basic Information | Signature Domain | Sequence |

Basic Information? help Back to Top

TF ID

Tp57577_TGAC_v2_mRNA16404

Organism

Trifolium pratense

Taxonomic ID

57577

Taxonomic Lineage

cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; rosids; fabids; Fabales; Fabaceae; Papilionoideae; Trifolieae; Trifolium

Family

bHLH

Protein Properties

Length: 234aa MW: 26422 Da PI: 4.9521

Description

bHLH family protein

Gene Model

Gene Model ID	Type	Source	Coding Sequence
Tp57577_TGAC_v2_mRNA16404	genome	JGI	View CDS

Signature Domain? help Back to Top

No.	Domain	Score	E-value	Start	End	HMM Start	HMM End
1	HLH	24.5	4.9e-08	78	125	4	54
HHHHHHHHHHHHHHHHHHHHHCTSCCC...TTS-STCHHHHHHHHHHHHHH CS HLH 4 ahnerErrRRdriNsafeeLrellPkaskapskKlsKaeiLekAveYIksL 54 ++ rE+ RR+++N++f L +l + + + +K +iL A++ +++L Tp57577_TGAC_v2_mRNA16404 78 TKACREKLRREKLNERFCDLSAVLDPG---RPVRTDKPAILDDAIRVLNQL 125 7889******************997...88**************999 PP

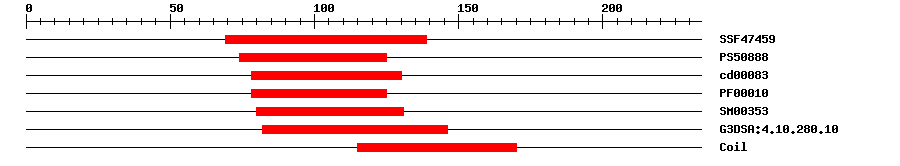

Protein Features ? help Back to Top

Database	Entry ID	E-value	Start	End	InterPro ID	Description
SuperFamily	SSF47459	1.7E-11	69	139	IPR011598	Myc-type, basic helix-loop-helix (bHLH) domain
PROSITE profile	PS50888	12.112	74	125	IPR011598	Myc-type, basic helix-loop-helix (bHLH) domain
CDD	cd00083	2.04E-6	78	130	No hit	No description
Pfam	PF00010	2.0E-5	78	125	IPR011598	Myc-type, basic helix-loop-helix (bHLH) domain
SMART	SM00353	1.4E-6	80	131	IPR011598	Myc-type, basic helix-loop-helix (bHLH) domain
Gene3D	G3DSA:4.10.280.10	1.5E-9	82	146	IPR011598	Myc-type, basic helix-loop-helix (bHLH) domain

Gene Ontology ? help Back to Top
GO Term	GO Category	GO Description
GO:0046983	Molecular Function	protein dimerization activity

Sequence ? help Back to Top
Protein Sequence Length: 234 aa Download sequence Send to blast
MDSYELLQNI DSLDFLDYSN FIDPSPPTDF LWSNPSASTE IDFASVSTEI DIPSGAVACQ 60 EENTRKRGRA ESCYKSGTKA CREKLRREKL NERFCDLSAV LDPGRPVRTD KPAILDDAIR 120 VLNQLKTEAQ ELKETNEKLL EEIKCLKAEK NELREEKLVL KADKEKIEKQ LKTMPPPISP 180 AGFMPPHPMA AAYQPGMNKM AVYPNYGYIP MWQYLPQSAR DTSQDHELRP PAA*

Binding Motif ? help Back to Top
Motif ID	Method	Source	Motif file
MP00102	PBM	Transfer from AT4G14410	Download

Cis-element ? help Back to Top
Source	Link
PlantRegMap	Tp57577_TGAC_v2_mRNA16404

Regulation -- PlantRegMap ? help Back to Top
Source	Upstream Regulator	Target Gene
PlantRegMap	Retrieve	Retrieve

Annotation -- Nucleotide ? help Back to Top
Source	Hit ID	E-value	Description
GenBank	JN800447	0.0	JN800447.1 Medicago truncatula basic helix-loop-helix transcription factor mRNA, complete cds.

Annotation -- Protein ? help Back to Top
Source	Hit ID	E-value	Description
Refseq	XP_003590056.1	1e-141	transcription factor bHLH104
Swissprot	Q8L467	2e-78	BH104_ARATH; Transcription factor bHLH104
TrEMBL	A0A2K3MRN5	1e-165	A0A2K3MRN5_TRIPR; Transcription factor bHLH104-like protein
STRING	AES60307	1e-140	(Medicago truncatula)

Orthologous Group ? help Back to Top
Lineage	Orthologous Group ID	Taxa Number	Gene Number
Fabids	OGEF8179	25	37

Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID	E-value	Description
AT4G14410.2	5e-61	bHLH family protein

Link Out ? help Back to Top
Phytozome	Tp57577_TGAC_v2_mRNA16404

Publications ? help Back to Top
Skinner MK,Rawls A,Wilson-Rawls J,Roalson EH Basic helix-loop-helix transcription factor gene family phylogenetics and nomenclature. Differentiation, 2010. 80(1): p. 1-8 [PMID:20219281] Li X,Zhang H,Ai Q,Liang G,Yu D Two bHLH Transcription Factors, bHLH34 and bHLH104, Regulate Iron Homeostasis in Arabidopsis thaliana. Plant Physiol., 2016. 170(4): p. 2478-93 [PMID:26921305] Liang G,Zhang H,Li X,Ai Q,Yu D bHLH transcription factor bHLH115 regulates iron homeostasis in Arabidopsis thaliana. J. Exp. Bot., 2017. 68(7): p. 1743-1755 [PMID:28369511] Wang C,Yao X,Yu D,Liang G Fe-deficiency-induced expression of bHLH104 enhances Fe-deficiency tolerance of Arabidopsis thaliana. Planta, 2017. 246(3): p. 421-431 [PMID:28451750] Ezer D, et al. The G-Box Transcriptional Regulatory Code in Arabidopsis. Plant Physiol., 2017. 175(2): p. 628-640 [PMID:28864470] Min JH, et al. Arabidopsis Basic Helix-Loop-Helix 34 (bHLH34) Is Involved in Glucose Signaling through Binding to a GAGA Cis-Element. Front Plant Sci, 2017. 8: p. 2100 [PMID:29321786] Min JH, et al. A basic helix-loop-helix 104 (bHLH104) protein functions as a transcriptional repressor for glucose and abscisic acid signaling in Arabidopsis. Plant Physiol. Biochem., 2019. 136: p. 34-42 [PMID:30639920]
