Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID Tp5g13880
Organism
Thellungiella parvula
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; rosids; malvids; Brassicales; Brassicaceae; Brassicaceae incertae sedis; Schrenkiella
Family E2F/DP
Protein Properties Length: 395aa    MW: 44527.8 Da    PI: 8.4232
Description E2F/DP family protein
Gene Model
Gene Model ID Type Source Coding Sequence
Tp5g13880genomethellungiellaView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1E2F_TDP74.11.4e-233297171
    E2F_TDP  1 rkeksLrlltqkflkllekseegivtlnevakeLvsedvknkrRRiYDilNVLealnliekkekneirwkg 71
               rk+ksL+ll+++fl+l+++   +++ l+++a++L    v  +rRRiYDi+NVLe+++++++++kn+++wkg
  Tp5g13880 32 RKQKSLGLLCTNFLALYNRHGIEMIGLDDAATKL---GV--ERRRIYDIVNVLESVGVLTRRAKNQYTWKG 97
               79*****************999************...**..****************************98 PP
2E2F_TDP79.82.4e-25167247171
    E2F_TDP   1 rkeksLrlltqkflkllekseegivtlnevakeLvse.....dvknkrRRiYDilNVLealnliek.....kekneirwkg 71
                r+eksL+lltq+f+kl+ +se++i++l+e+ak L+ +      +++k+RR+YDi+NVL+++nliek     ++k++++w g
  Tp5g13880 167 RREKSLGLLTQNFIKLFVCSEARIISLDEAAKLLLGDahntsIMRTKVRRLYDIANVLSSMNLIEKthtldSRKPAFKWLG 247
                689**************************************999************************9999*******87 PP

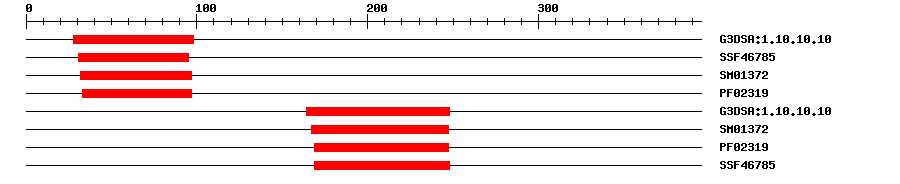

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
Gene3DG3DSA:1.10.10.107.2E-272898IPR011991Winged helix-turn-helix DNA-binding domain
SuperFamilySSF467857.38E-173195IPR011991Winged helix-turn-helix DNA-binding domain
SMARTSM013721.5E-283297IPR003316E2F/DP family, winged-helix DNA-binding domain
PfamPF023192.4E-203397IPR003316E2F/DP family, winged-helix DNA-binding domain
Gene3DG3DSA:1.10.10.102.3E-23164248IPR011991Winged helix-turn-helix DNA-binding domain
SMARTSM013721.2E-32167247IPR003316E2F/DP family, winged-helix DNA-binding domain
PfamPF023193.3E-20169247IPR003316E2F/DP family, winged-helix DNA-binding domain
SuperFamilySSF467854.08E-14169248IPR011991Winged helix-turn-helix DNA-binding domain
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0006355Biological Processregulation of transcription, DNA-templated
GO:0032876Biological Processnegative regulation of DNA endoreduplication
GO:0005634Cellular Componentnucleus
GO:0005667Cellular Componenttranscription factor complex
GO:0003677Molecular FunctionDNA binding
GO:0003700Molecular Functiontranscription factor activity, sequence-specific DNA binding
Sequence ? help Back to Top
Protein Sequence    Length: 395 aa     Download sequence    Send to blast
MSDLPPEKSK MALSSSSSMP ESSSSLHHSY SRKQKSLGLL CTNFLALYNR HGIEMIGLDD  60
AATKLGVERR RIYDIVNVLE SVGVLTRRAK NQYTWKGFAA IPAALKELQE EGAKDTFHRF  120
YTNENVKVSD DEDDEEESSQ PHSSSQTDSS KAGSLPQSSD SSKIDNRREK SLGLLTQNFI  180
KLFVCSEARI ISLDEAAKLL LGDAHNTSIM RTKVRRLYDI ANVLSSMNLI EKTHTLDSRK  240
PAFKWLGYNG EPTFTLSSDL MQAESRKRVF GTDLTNVNVK RSKTHENATE RKQKMKKHAI  300
AEGSCNKSFD AHESRHGSRG YEFGPFAPAT GTYPTAPLED NSKRAFDVEN LVSDYRPSYQ  360
NEVLKDLFAH YMDAWKSWYS EVTQKNPLPN TSQHH
3D Structure ? help Back to Top
Structure
PDB ID Evalue Query Start Query End Hit Start Hit End Description
4yo2_A5e-40312393228Transcription factor E2F8
Search in ModeBase
Functional Description ? help Back to Top
Source Description
UniProtInhibitor of E2F-dependent activation of gene expression. Binds specifically the E2 recognition site without interacting with DP proteins and prevents transcription activation by E2F/DP heterodimers. Controls the timing of endocycle onset and inhibits endoreduplication. {ECO:0000269|PubMed:11786543, ECO:0000269|PubMed:11867638, ECO:0000269|PubMed:15649366, ECO:0000269|PubMed:18787127}.
Binding Motif ? help Back to Top
Motif ID Method Source Motif file
MP00397DAPTransfer from AT3G48160Download
Motif logo
Cis-element ? help Back to Top
SourceLink
PlantRegMapTp5g13880
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieveRetrieve
Annotation -- Nucleotide ? help Back to Top
Source Hit ID E-value Description
GenBankAK3531970.0AK353197.1 Thellungiella halophila mRNA, complete cds, clone: RTFL01-26-N13.
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_006404291.10.0E2F transcription factor-like E2FE
SwissprotQ8LSZ40.0E2FE_ARATH; E2F transcription factor-like E2FE
TrEMBLE4MXF00.0E4MXF0_EUTHA; mRNA, clone: RTFL01-26-N13
TrEMBLV4LPM20.0V4LPM2_EUTSA; Uncharacterized protein
STRINGXP_006404291.10.0(Eutrema salsugineum)
Orthologous Group ? help Back to Top
LineageOrthologous Group IDTaxa NumberGene Number
MalvidsOGEM63042743
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT3G48160.20.0DP-E2F-like 1
Publications ? help Back to Top
  1. Chandran D, et al.
    Atypical E2F transcriptional repressor DEL1 acts at the intersection of plant growth and immunity by controlling the hormone salicylic acid.
    Cell Host Microbe, 2014. 15(4): p. 506-13
    [PMID:24721578]
  2. Wang Z, et al.
    Del1 Knockout Mice Developed More Severe Osteoarthritis Associated with Increased Susceptibility of Chondrocytes to Apoptosis.
    PLoS ONE, 2016. 11(8): p. e0160684
    [PMID:27505251]
  3. Heyman J,Polyn S,Eekhout T,De Veylder L
    Tissue-Specific Control of the Endocycle by the Anaphase Promoting Complex/Cyclosome Inhibitors UVI4 and DEL1.
    Plant Physiol., 2017. 175(1): p. 303-313
    [PMID:28698355]
