Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID WALNUT_00001177-RA
Organism
Juglans regia
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; rosids; fabids; Fagales; Juglandaceae; Juglans
Family MIKC_MADS
Protein Properties Length: 245aa    MW: 28129.9 Da    PI: 8.5588
Description MIKC_MADS family protein
Gene Model
Gene Model ID Type Source Coding Sequence
WALNUT_00001177-RAgenomeJHUView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1SRF-TF99.81e-31959151
                        S---SHHHHHHHHHHHHHHHHHHHHHHHHHHT-EEEEEEE-TTSEEEEEE- CS
              SRF-TF  1 krienksnrqvtfskRrngilKKAeELSvLCdaevaviifsstgklyeyss 51
                        krienk+nrqvtf+kRrng+lKKA+ELSvLCdaeva+iifs++gklye++s
  WALNUT_00001177-RA  9 KRIENKINRQVTFAKRRNGLLKKAYELSVLCDAEVALIIFSNRGKLYEFCS 59
                        79***********************************************96 PP
2K-box91.51.5e-30841759100
               K-box   9 leeakaeslqqelakLkkeienLqreqRhllGedLesLslkeLqqLeqqLekslkkiRskKnellleqieelqkkekelqeenkaLrkkle 99
                          +++ ++s+++e+ +Lk++ e+Lq++qR+llGedL++L+  +L++Le+qLe+slk++Rs+K++ +l+q+++lq+ke+ l e n+aL+ kl+
  WALNUT_00001177-RA  84 PAKELEQSSYREYLRLKARFESLQQTQRNLLGEDLGPLNTDDLEKLERQLESSLKQVRSTKTQCMLDQLSDLQNKEQLLLESNRALTIKLD 174
                         56677899******************************************************************************99987 PP

               K-box 100 e 100
                         e
  WALNUT_00001177-RA 175 E 175
                         6 PP
Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
SMARTSM004321.3E-41160IPR002100Transcription factor, MADS-box
PROSITE profilePS5006633.515161IPR002100Transcription factor, MADS-box
CDDcd002652.00E-44276No hitNo description
SuperFamilySSF554557.33E-34276IPR002100Transcription factor, MADS-box
PROSITE patternPS003500357IPR002100Transcription factor, MADS-box
PRINTSPR004048.8E-33323IPR002100Transcription factor, MADS-box
PfamPF003192.3E-261057IPR002100Transcription factor, MADS-box
PRINTSPR004048.8E-332338IPR002100Transcription factor, MADS-box
PRINTSPR004048.8E-333859IPR002100Transcription factor, MADS-box
PROSITE profilePS5129715.04689179IPR002487Transcription factor, K-box
PfamPF014861.2E-2589173IPR002487Transcription factor, K-box
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0006355Biological Processregulation of transcription, DNA-templated
GO:0009611Biological Processresponse to wounding
GO:0048481Biological Processplant ovule development
GO:0071486Biological Processcellular response to high light intensity
GO:0071492Biological Processcellular response to UV-A
GO:0005634Cellular Componentnucleus
GO:0003677Molecular FunctionDNA binding
GO:0003700Molecular Functiontranscription factor activity, sequence-specific DNA binding
GO:0046983Molecular Functionprotein dimerization activity
Sequence ? help Back to Top
Protein Sequence    Length: 245 aa     Download sequence    Send to blast
MGRGRVELKR IENKINRQVT FAKRRNGLLK KAYELSVLCD AEVALIIFSN RGKLYEFCSS  60
SSMLKTLERY QKCSYGTAVE VNRPAKELEQ SSYREYLRLK ARFESLQQTQ RNLLGEDLGP  120
LNTDDLEKLE RQLESSLKQV RSTKTQCMLD QLSDLQNKEQ LLLESNRALT IKLDEICSRN  180
HLRQSWEGGE QSYSYGPQNP QTQGFFQPID CNPTLQMGYN ASGSEQITST SHAQQINGFI  240
PGWML

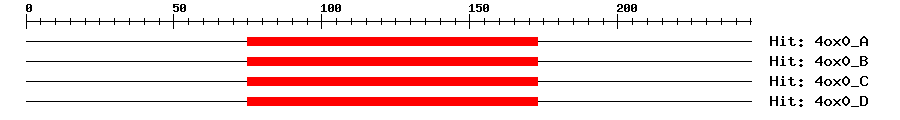

3D Structure ? help Back to Top
Structure
PDB ID Evalue Query Start Query End Hit Start Hit End Description
4ox0_A4e-32751731101Developmental protein SEPALLATA 3
4ox0_B4e-32751731101Developmental protein SEPALLATA 3
4ox0_C4e-32751731101Developmental protein SEPALLATA 3
4ox0_D4e-32751731101Developmental protein SEPALLATA 3
Search in ModeBase
Functional Description ? help Back to Top
Source Description
UniProtProbable transcription factor involved in flower development. {ECO:0000250|UniProtKB:Q0HA25}.
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieve-
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_018816776.10.0PREDICTED: developmental protein SEPALLATA 1-like isoform X1
SwissprotQ8LLR21e-149MADS2_VITVI; Agamous-like MADS-box protein MADS2
TrEMBLA0A2I4EBJ91e-180A0A2I4EBJ9_JUGRE; developmental protein SEPALLATA 1-like isoform X1
STRINGXP_006482430.11e-149(Citrus sinensis)
Orthologous Group ? help Back to Top
LineageOrthologous Group IDTaxa NumberGene Number
FabidsOGEF22932178
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT5G15800.11e-120MIKC_MADS family protein
Publications ? help Back to Top
  1. Jaillon O, et al.
    The grapevine genome sequence suggests ancestral hexaploidization in major angiosperm phyla.
    Nature, 2007. 449(7161): p. 463-7
    [PMID:17721507]
  2. Díaz-Riquelme J,Lijavetzky D,Martínez-Zapater JM,Carmona MJ
    Genome-wide analysis of MIKCC-type MADS box genes in grapevine.
    Plant Physiol., 2009. 149(1): p. 354-69
    [PMID:18997115]
  3. Grimplet J,Martínez-Zapater JM,Carmona MJ
    Structural and functional annotation of the MADS-box transcription factor family in grapevine.
    BMC Genomics, 2016. 17: p. 80
    [PMID:26818751]
