Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID WALNUT_00016378-RA
Organism
Juglans regia
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; rosids; fabids; Fagales; Juglandaceae; Juglans
Family MYB_related
Protein Properties Length: 189aa    MW: 21036.2 Da    PI: 4.0947
Description MYB_related family protein
Gene Model
Gene Model ID Type Source Coding Sequence
WALNUT_00016378-RAgenomeJHUView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1Myb_DNA-binding26.91.1e-0811342347
                        -HHHHHHHHTTTS-HHHHHHHHHHH CS
     Myb_DNA-binding 23 tWktIartmgkgRtlkqcksrwqky 47
                        +W++Ia++++ gRt++++k++w+ +
  WALNUT_00016378-RA 11 RWSAIAAKLP-GRTDNEIKNYWHAH 34
                        4*********.***********976 PP

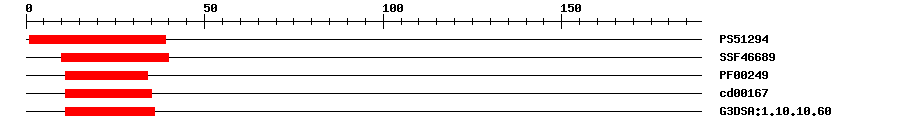

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
PROSITE profilePS5129412.417139IPR017930Myb domain
SuperFamilySSF466891.79E-71040IPR009057Homeodomain-like
PfamPF002491.5E-61134IPR001005SANT/Myb domain
CDDcd001675.68E-71135No hitNo description
Gene3DG3DSA:1.10.10.601.1E-121136IPR009057Homeodomain-like
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0003677Molecular FunctionDNA binding
Sequence ? help Back to Top
Protein Sequence    Length: 189 aa     Download sequence    Send to blast
MSALQSSIYF RWSAIAAKLP GRTDNEIKNY WHAHLKKLSK NISSSTTLSE LVGTSEEVEA  60
NKNDSSGNQD LLLISDSPKV PNMDGIKGIP TSLQIHMSTN DIVSSSSSTD PPVEDVSNQY  120
MIDQDEINFS SSNSSEIIRG IWELPYFSFQ DIFMPERDPG FMAPTTASCQ QEPMYSDVCN  180
DAGYDFWVD
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieve-
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_018854903.11e-122PREDICTED: transcription factor MYB48-like
TrEMBLA0A2I4HFH51e-121A0A2I4HFH5_JUGRE; transcription factor MYB48-like
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT2G31180.14e-15myb domain protein 14
