Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID WALNUT_00028779-RA
Organism
Juglans regia
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; rosids; fabids; Fagales; Juglandaceae; Juglans
Family ERF
Protein Properties Length: 214aa    MW: 23955.9 Da    PI: 6.536
Description ERF family protein
Gene Model
Gene Model ID Type Source Coding Sequence
WALNUT_00028779-RAgenomeJHUView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1AP256.47.4e-1850100155
                 AP2   1 sgykGVrwdkkrgrWvAeIrdpsengkrkrfslgkfgtaeeAakaaiaarkkleg 55
                         + y+GVr++  +g+Wv+e+r p   +k+ r++lg+f ta++Aa+a++ a+ +++g
  WALNUT_00028779-RA  50 PVYRGVRRRN-SGKWVCEVRQP---NKKSRIWLGTFPTADMAARAHDVAAIAMRG 100
                         68*****888.8******8887...347*************************98 PP

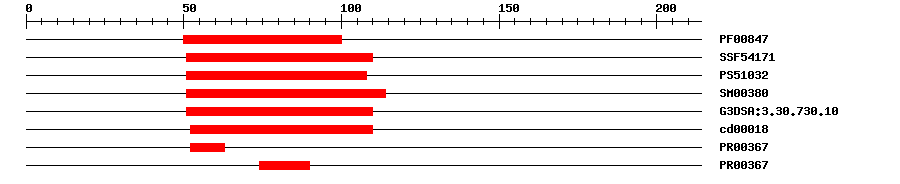

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
PfamPF008476.3E-1450100IPR001471AP2/ERF domain
SuperFamilySSF541713.99E-2151110IPR016177DNA-binding domain
PROSITE profilePS5103222.16851108IPR001471AP2/ERF domain
SMARTSM003801.9E-3151114IPR001471AP2/ERF domain
Gene3DG3DSA:3.30.730.104.5E-3251110IPR001471AP2/ERF domain
CDDcd000185.30E-3052110No hitNo description
PRINTSPR003677.2E-95263IPR001471AP2/ERF domain
PRINTSPR003677.2E-97490IPR001471AP2/ERF domain
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0006355Biological Processregulation of transcription, DNA-templated
GO:0005634Cellular Componentnucleus
GO:0003677Molecular FunctionDNA binding
GO:0003700Molecular Functiontranscription factor activity, sequence-specific DNA binding
Sequence ? help Back to Top
Protein Sequence    Length: 214 aa     Download sequence    Send to blast
MDVFSPYNSP DSESSSYGRG LNFSDEELLL ASRNPKKRAG RKKFKETRHP VYRGVRRRNS  60
GKWVCEVRQP NKKSRIWLGT FPTADMAARA HDVAAIAMRG RSACLNFADS VRRLPVPASG  120
DVKDIQRTAA EAAELFRPAE SLDGSTSQAD EDKREWPKSI LFVDEEAECG MTVWRLVADM  180
AEGMLLPPPF CAGNDFYIND VEDSADVSLW SYSI
3D Structure ? help Back to Top
Structure
PDB ID Evalue Query Start Query End Hit Start Hit End Description
5wx9_A9e-15491071271Ethylene-responsive transcription factor ERF096
Search in ModeBase
Functional Description ? help Back to Top
Source Description
UniProtTranscriptional activator that binds specifically to the DNA sequence 5'-[AG]CCGAC-3'. Binding to the C-repeat/DRE element mediates abscisic acid- and dehydration-inducible transcription. CBF/DREB1 factors play a key role in freezing tolerance and cold acclimation. {ECO:0000269|PubMed:11798174, ECO:0000269|PubMed:12376631}.
Binding Motif ? help Back to Top
Motif ID Method Source Motif file
MP00557DAPTransfer from AT5G51990Download
Motif logo
Regulation -- Description ? help Back to Top
Source Description
UniProtINDUCTION: By high-salt stress, drought stress and abscisic acid (ABA) treatment. {ECO:0000269|PubMed:11798174, ECO:0000269|PubMed:12376631}.
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieveRetrieve
Annotation -- Nucleotide ? help Back to Top
Source Hit ID E-value Description
GenBankJX8759140.0JX875914.1 Juglans regia CBF transcription factor (cbf) mRNA, complete cds.
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_018808785.11e-158PREDICTED: dehydration-responsive element-binding protein 1D-like
SwissprotQ9FJ931e-66DRE1D_ARATH; Dehydration-responsive element-binding protein 1D
TrEMBLK7S3731e-156K7S373_JUGRE; CBF transcription factor
STRINGEMJ195112e-85(Prunus persica)
Orthologous Group ? help Back to Top
LineageOrthologous Group IDTaxa NumberGene Number
FabidsOGEF24333224
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT5G51990.11e-56C-repeat-binding factor 4
Publications ? help Back to Top
  1. Ding Y, et al.
    Four distinct types of dehydration stress memory genes in Arabidopsis thaliana.
    BMC Plant Biol., 2013. 13: p. 229
    [PMID:24377444]
  2. Guttikonda SK, et al.
    Overexpression of AtDREB1D transcription factor improves drought tolerance in soybean.
    Mol. Biol. Rep., 2014. 41(12): p. 7995-8008
    [PMID:25192890]
  3. Zhang T, et al.
    Overexpression of a NF-YB3 transcription factor from Picea wilsonii confers tolerance to salinity and drought stress in transformed Arabidopsis thaliana.
    Plant Physiol. Biochem., 2015. 94: p. 153-64
    [PMID:26093308]
  4. Carlow CE, et al.
    Nuclear localization and transactivation by Vitis CBF transcription factors are regulated by combinations of conserved amino acid domains.
    Plant Physiol. Biochem., 2017. 118: p. 306-319
    [PMID:28675818]
  5. Li B, et al.
    Network-Guided Discovery of Extensive Epistasis between Transcription Factors Involved in Aliphatic Glucosinolate Biosynthesis.
    Plant Cell, 2018. 30(1): p. 178-195
    [PMID:29317470]
