Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID XP_008231910.1
Organism
Prunus mume
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; rosids; fabids; Rosales; Rosaceae; Maloideae; Amygdaleae; Prunus
Family MYB
Protein Properties Length: 230aa    MW: 26016.1 Da    PI: 6.1681
Description MYB family protein
Gene Model
Gene Model ID Type Source Coding Sequence
XP_008231910.1genomeBGIView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1Myb_DNA-binding28.63.2e-091965347
                     SS-HHHHHHHHHHHHHTTTT...-HHHHHHHHTTTS-HHHHHHHHHHH CS
  Myb_DNA-binding  3 rWTteEdellvdavkqlGgg...tWktIartmgkgRtlkqcksrwqky 47
                     +WT  Ed+l+ +a  ++  +   +W++Ia++++ g+t++++ +++ ++
   XP_008231910.1 19 PWTRFEDKLFEQALVRFSEDlpdRWERIAEEVP-GKTPEEVLEHYETL 65
                     7*****************99*************.**********9875 PP
2Myb_DNA-binding44.82.8e-14115159347
                      SS-HHHHHHHHHHHHHTTTT-HHHHHHHHTTTS-HHHHHHHHHHH CS
  Myb_DNA-binding   3 rWTteEdellvdavkqlGggtWktIartmgkgRtlkqcksrwqky 47
                      +WT++E++l++ + k++G+g+W++I+r +  +Rt+ q+ s+ qky
   XP_008231910.1 115 PWTEQEHKLFLIGLKKFGKGDWRSISRNVVVTRTPTQVASHAQKY 159
                      8*******************************************9 PP

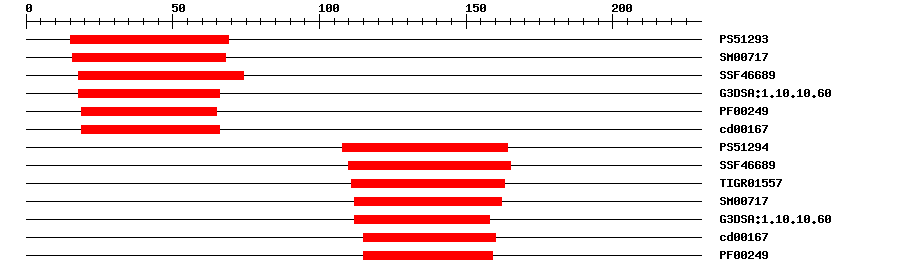

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
PROSITE profilePS512939.5841569IPR017884SANT domain
SMARTSM007173.5E-81668IPR001005SANT/Myb domain
SuperFamilySSF466896.35E-121874IPR009057Homeodomain-like
Gene3DG3DSA:1.10.10.604.6E-61866IPR009057Homeodomain-like
PfamPF002499.1E-81965IPR001005SANT/Myb domain
CDDcd001672.44E-81966No hitNo description
PROSITE profilePS5129419.517108164IPR017930Myb domain
SuperFamilySSF466891.17E-16110165IPR009057Homeodomain-like
TIGRFAMsTIGR015574.6E-17111163IPR006447Myb domain, plants
SMARTSM007171.1E-10112162IPR001005SANT/Myb domain
Gene3DG3DSA:1.10.10.609.6E-11112158IPR009057Homeodomain-like
CDDcd001676.12E-9115160No hitNo description
PfamPF002494.0E-12115159IPR001005SANT/Myb domain
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0003677Molecular FunctionDNA binding
Sequence ? help Back to Top
Protein Sequence    Length: 230 aa     Download sequence    Send to blast
MFQETAPCWS SMAQSASAPW TRFEDKLFEQ ALVRFSEDLP DRWERIAEEV PGKTPEEVLE  60
HYETLVHDVL EIDSGRVELP SYADDSVVGW DTASQISFGS KLNKHGEPER KKGTPWTEQE  120
HKLFLIGLKK FGKGDWRSIS RNVVVTRTPT QVASHAQKYF LRQSSVKKER KRSSIHDITT  180
VESNSVAAPA DRNWIPPPGV PAQQPPLQQP QGHLPDQGGS MGYQDFGYPM
3D Structure ? help Back to Top
Structure
PDB ID Evalue Query Start Query End Hit Start Hit End Description
2cjj_A5e-171482573RADIALIS
Search in ModeBase
Functional Description ? help Back to Top
Source Description
UniProtInvolved in the dorsovental asymmetry of flowers. Promotes ventral identity. {ECO:0000269|PubMed:11937495, ECO:0000269|PubMed:9118809}.
Binding Motif ? help Back to Top
Motif ID Method Source Motif file
MP00055PBMTransfer from AT5G04760Download
Motif logo
Cis-element ? help Back to Top
SourceLink
PlantRegMapXP_008231910.1
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieveRetrieve
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_008231910.11e-171PREDICTED: transcription factor DIVARICATA
SwissprotQ8S9H79e-60DIV_ANTMA; Transcription factor DIVARICATA
TrEMBLM5WIS81e-168M5WIS8_PRUPE; Uncharacterized protein
STRINGXP_008231910.11e-171(Prunus mume)
Orthologous Group ? help Back to Top
LineageOrthologous Group IDTaxa NumberGene Number
FabidsOGEF60683251
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT5G04760.19e-70MYB family protein
Publications ? help Back to Top
  1. Galego L,Almeida J
    Role of DIVARICATA in the control of dorsoventral asymmetry in Antirrhinum flowers.
    Genes Dev., 2002. 16(7): p. 880-91
    [PMID:11937495]
  2. Almeida J,Rocheta M,Galego L
    Genetic control of flower shape in Antirrhinum majus.
    Development, 1997. 124(7): p. 1387-92
    [PMID:9118809]
