Transcription Factor Information

Basic Information | Signature Domain | Sequence |

Basic Information? help Back to Top

TF ID

XP_008243130.1

Organism

Prunus mume

Taxonomic ID

102107

Taxonomic Lineage

cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; rosids; fabids; Rosales; Rosaceae; Maloideae; Amygdaleae; Prunus

Family

bHLH

Protein Properties

Length: 243aa MW: 27675.3 Da PI: 6.1555

Description

bHLH family protein

Gene Model

Gene Model ID	Type	Source	Coding Sequence
XP_008243130.1	genome	BGI	View CDS

Signature Domain? help Back to Top

No.	Domain	Score	E-value	Start	End	HMM Start	HMM End
1	HLH	42.2	1.4e-13	71	122	1	55
CHHHHHHHHHHHHHHHHHHHHHHHCTSCCC...TTS-STCHHHHHHHHHHHHHHH CS HLH 1 rrrahnerErrRRdriNsafeeLrellPkaskapskKlsKaeiLekAveYIksLq 55 ++ +hn+ Er RR++iNs ++ r+llP + ++kKls + ++ +YI +Lq XP_008243130.1 71 KKLNHNASERDRRKKINSLYSSMRSLLPAD---QAKKLSIPNTISRVLKYIPELQ 122 6789************************...*****************998 PP

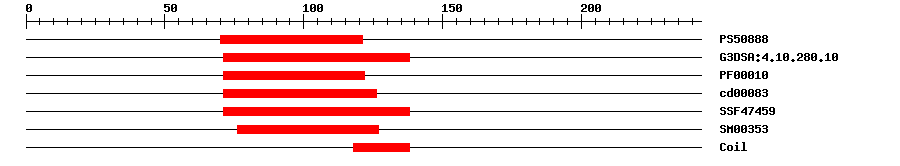

Protein Features ? help Back to Top

Database	Entry ID	E-value	Start	End	InterPro ID	Description
PROSITE profile	PS50888	13.313	70	121	IPR011598	Myc-type, basic helix-loop-helix (bHLH) domain
Gene3D	G3DSA:4.10.280.10	3.6E-11	71	138	IPR011598	Myc-type, basic helix-loop-helix (bHLH) domain
Pfam	PF00010	1.1E-10	71	122	IPR011598	Myc-type, basic helix-loop-helix (bHLH) domain
CDD	cd00083	1.60E-8	71	126	No hit	No description
SuperFamily	SSF47459	5.76E-14	71	138	IPR011598	Myc-type, basic helix-loop-helix (bHLH) domain
SMART	SM00353	1.1E-6	76	127	IPR011598	Myc-type, basic helix-loop-helix (bHLH) domain

Gene Ontology ? help Back to Top
GO Term	GO Category	GO Description
GO:0010106	Biological Process	cellular response to iron ion starvation
GO:0055072	Biological Process	iron ion homeostasis
GO:0046983	Molecular Function	protein dimerization activity

Sequence ? help Back to Top
Protein Sequence Length: 243 aa Download sequence Send to blast
MLALSPPLFS TVGWPSEDPI GYDQKYFYRD SSNDQTAESF LHILPSQLPQ FELDLSTTIS 60 GDNSSGFAVA KKLNHNASER DRRKKINSLY SSMRSLLPAD QAKKLSIPNT ISRVLKYIPE 120 LQKQVEGLIR KREELLSRAS KQEDVMQEEK DMKSTARSSS LSAVSTYRLS DREVAIQIST 180 LKTHNNLLSE ILLNLEEEGL QVLNASFLES SGERVFYNLH LQVERSYRLE CENLSEKLMS 240 FYA

Cis-element ? help Back to Top
Source	Link
PlantRegMap	XP_008243130.1

Regulation -- Description ? help Back to Top
Source	Description
UniProt	INDUCTION: Induced by OBP3, auxin and salicylic acid (SA). Repressed by jasmonic acid (JA), UV LIGHT, and heat treatments. Up regulated by iron deficiency in roots and leaves, as well as by nickel, high zinc or high copper treatments. Repressed by high iron, low copper and low zinc treatments. {ECO:0000269\|PubMed:12679534, ECO:0000269\|PubMed:12887587, ECO:0000269\|PubMed:17516080}.

Regulation -- PlantRegMap ? help Back to Top
Source	Upstream Regulator	Target Gene
PlantRegMap	Retrieve	-

Annotation -- Protein ? help Back to Top
Source	Hit ID	E-value	Description
Refseq	XP_008243130.1	1e-177	PREDICTED: transcription factor ORG2-like
Swissprot	Q9M1K1	5e-63	ORG2_ARATH; Transcription factor ORG2
TrEMBL	M5VYD8	1e-167	M5VYD8_PRUPE; Uncharacterized protein
STRING	XP_008243130.1	1e-177	(Prunus mume)

Orthologous Group ? help Back to Top
Lineage	Orthologous Group ID	Taxa Number	Gene Number
Fabids	OGEF2402	33	79

Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID	E-value	Description
AT3G56970.1	1e-51	bHLH family protein

Publications ? help Back to Top
Skinner MK,Rawls A,Wilson-Rawls J,Roalson EH Basic helix-loop-helix transcription factor gene family phylogenetics and nomenclature. Differentiation, 2010. 80(1): p. 1-8 [PMID:20219281] Matsuoka K, et al. Gibberellin-induced expression of Fe uptake-related genes in Arabidopsis. Plant Cell Physiol., 2014. 55(1): p. 87-98 [PMID:24192296] Li X,Zhang H,Ai Q,Liang G,Yu D Two bHLH Transcription Factors, bHLH34 and bHLH104, Regulate Iron Homeostasis in Arabidopsis thaliana. Plant Physiol., 2016. 170(4): p. 2478-93 [PMID:26921305] Shen C, et al. Involvement of endogenous salicylic acid in iron-deficiency responses in Arabidopsis. J. Exp. Bot., 2016. 67(14): p. 4179-93 [PMID:27208542] Liang G,Zhang H,Li X,Ai Q,Yu D bHLH transcription factor bHLH115 regulates iron homeostasis in Arabidopsis thaliana. J. Exp. Bot., 2017. 68(7): p. 1743-1755 [PMID:28369511] Ezer D, et al. The G-Box Transcriptional Regulatory Code in Arabidopsis. Plant Physiol., 2017. 175(2): p. 628-640 [PMID:28864470] Kailasam S,Wang Y,Lo JC,Chang HF,Yeh KC S-Nitrosoglutathione works downstream of nitric oxide to mediate iron-deficiency signaling in Arabidopsis. Plant J., 2018. 94(1): p. 157-168 [PMID:29396986] Kurt F,Filiz E Genome-wide and comparative analysis of bHLH38, bHLH39, bHLH100 and bHLH101 genes in Arabidopsis, tomato, rice, soybean and maize: insights into iron (Fe) homeostasis. Biometals, 2018. 31(4): p. 489-504 [PMID:29546482]
