PlantRegMap/PlantTFDB v5.0

Plant Transcription Factor Database

Transcription Factor Information

Basic Information | Signature Domain | Sequence |

Basic Information? help Back to Top

TF ID

XP_009107969.1

Organism

Brassica rapa

Taxonomic ID

3711

Taxonomic Lineage

cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; rosids; malvids; Brassicales; Brassicaceae; Brassiceae; Brassica

Family

NAC

Protein Properties

Length: 305aa MW: 35295.5 Da PI: 6.5974

Description

NAC family protein

Gene Model

Gene Model ID	Type	Source	Coding Sequence
XP_009107969.1	genome	NCBI	View CDS

Signature Domain? help Back to Top

No.	Domain	Score	E-value	Start	End	HMM Start	HMM End
1	NAM	152.3	2.2e-47	29	159	5	128
NAM 5 frFhPtdeelvveyLkkkvegkkleleevikevdiykvePwdLp.k.kvkaeekewyfFskrdkkyatgkrknratksgyWkatgkdkevlsk.. 95 +rFhPtdeelv +yL+++ eg ++el e+i+ +d+yk++Pw+Lp k + +++ ew+fF++rd+ky++g+r nratksgyWkatgkd++++++ XP_009107969.1 29 YRFHPTDEELVGYYLHRRNEGLQIEL-EIIPLMDLYKFDPWELPeKsFLPNRDMEWFFFCHRDRKYQNGSRINRATKSGYWKATGKDRKIVCQss 122 79**********************.99**********95334556888**********************************966 PP NAM 96 ....kgelvglkktLvfykgrapkgektdWvmheyrl 128 +++ +g++ktLvfy grap g +t+W mheyrl XP_009107969.1 123 ssssTSSIIGCRKTLVFYLGRAPFGGRTEWAMHEYRL 159 66555555*************************97 PP

Protein Features ? help Back to Top

Database	Entry ID	E-value	Start	End	InterPro ID	Description
PROSITE profile	PS51005	51.699	25	183	IPR003441	NAC domain
Pfam	PF02365	1.4E-25	28	159	IPR003441	NAC domain
SuperFamily	SSF101941	2.35E-53	29	183	IPR003441	NAC domain

Gene Ontology ? help Back to Top
GO Term	GO Category	GO Description
GO:0006355	Biological Process	regulation of transcription, DNA-templated
GO:0003677	Molecular Function	DNA binding

Sequence ? help Back to Top
Protein Sequence Length: 305 aa Download sequence Send to blast
MLFHDRKAAW IHGTRGRNLK AEECRAEKYR FHPTDEELVG YYLHRRNEGL QIELEIIPLM 60 DLYKFDPWEL PEKSFLPNRD MEWFFFCHRD RKYQNGSRIN RATKSGYWKA TGKDRKIVCQ 120 SSSSSSTSSI IGCRKTLVFY LGRAPFGGRT EWAMHEYRLF DNDTSQGSLN FKGDFALCRV 180 VKRNHEVTLK KCETSSLEVP VPGEPQTNNV DIPCEARYIG KGSCDTSNTL RASPDFILGS 240 STKGHSQSQT EDDSGFQEFS LPEIGYPPEF FADLNFDWGM ENSFPFVQYQ EAHVNNEVIN 300 YDVLR

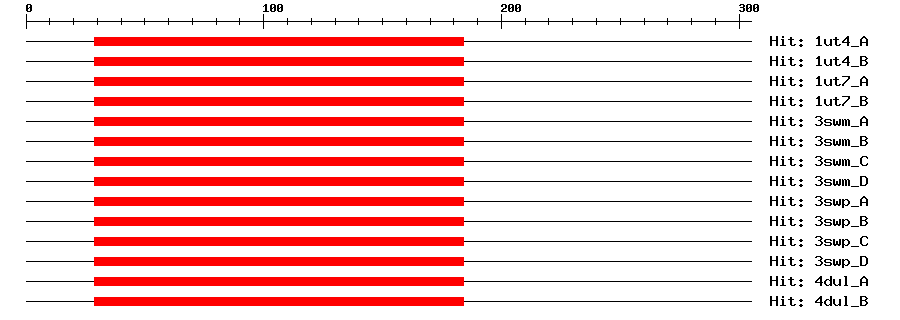

3D Structure ? help Back to Top

PDB ID	Evalue	Query Start	Query End	Hit Start	Hit End	Description
1ut4_A	1e-44	29	184	21	166	NO APICAL MERISTEM PROTEIN
1ut4_B	1e-44	29	184	21	166	NO APICAL MERISTEM PROTEIN
1ut7_A	1e-44	29	184	21	166	NO APICAL MERISTEM PROTEIN
1ut7_B	1e-44	29	184	21	166	NO APICAL MERISTEM PROTEIN
3swm_A	1e-44	29	184	24	169	NAC domain-containing protein 19
3swm_B	1e-44	29	184	24	169	NAC domain-containing protein 19
3swm_C	1e-44	29	184	24	169	NAC domain-containing protein 19
3swm_D	1e-44	29	184	24	169	NAC domain-containing protein 19
3swp_A	1e-44	29	184	24	169	NAC domain-containing protein 19
3swp_B	1e-44	29	184	24	169	NAC domain-containing protein 19
3swp_C	1e-44	29	184	24	169	NAC domain-containing protein 19
3swp_D	1e-44	29	184	24	169	NAC domain-containing protein 19
4dul_A	1e-44	29	184	21	166	NAC domain-containing protein 19
4dul_B	1e-44	29	184	21	166	NAC domain-containing protein 19
Search in ModeBase

Functional Description ? help Back to Top
Source	Description
UniProt	Transcription factor involved in tissue reunion of wounded inflorescence stems. Required for the division of pith cells in the reunion process, which is dependent on polar-transported auxin and the wound-inducible hormones ethylene and jasmonate (PubMed:21911380). Binds to the promoters of XTH19 and XTH20 to induce their expression via auxin signaling. XTH19 and XTH20 are involved in cell proliferation in the tissue reunion process of incised stems (PubMed:25182467). Involved in hypocotyl graft union formation. Required for the auxin- mediated promotion of vascular tissue proliferation during hypocotyl graft attachment (PubMed:27986917). {ECO:0000269\|PubMed:21911380, ECO:0000269\|PubMed:25182467, ECO:0000269\|PubMed:27986917}.

Binding Motif ? help Back to Top
Motif ID	Method	Source	Motif file
MP00175	DAP	Transfer from AT1G32510	Download

Cis-element ? help Back to Top
Source	Link
PlantRegMap	XP_009107969.1

Regulation -- Description ? help Back to Top
Source	Description
UniProt	INDUCTION: Induced by wounding in the flowering stem. {ECO:0000269\|PubMed:21911380}.

Regulation -- PlantRegMap ? help Back to Top
Source	Upstream Regulator	Target Gene
PlantRegMap	Retrieve	Retrieve

Annotation -- Nucleotide ? help Back to Top
Source	Hit ID	E-value	Description
GenBank	CP002684	1e-102	CP002684.1 Arabidopsis thaliana chromosome 1 sequence.
GenBank	F5D14	1e-102	AC007767.3 Sequence of BAC F5D14 from Arabidopsis thaliana chromosome 1, complete sequence.

Annotation -- Protein ? help Back to Top
Source	Hit ID	E-value	Description
Refseq	XP_009107969.1	0.0	PREDICTED: transcription factor JUNGBRUNNEN 1 isoform X1
Refseq	XP_009107971.1	0.0	PREDICTED: transcription factor JUNGBRUNNEN 1 isoform X1
Swissprot	O49697	1e-82	NAC71_ARATH; NAC domain-containing protein 71
TrEMBL	M4F338	0.0	M4F338_BRARP; Uncharacterized protein
STRING	Bra035488.1-P	0.0	(Brassica rapa)

Orthologous Group ? help Back to Top
Lineage	Orthologous Group ID	Taxa Number	Gene Number
Malvids	OGEM15029	17	19

Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID	E-value	Description
AT1G32510.1	1e-148	NAC domain containing protein 11

Publications ? help Back to Top
Duarte JM, et al. Expression pattern shifts following duplication indicative of subfunctionalization and neofunctionalization in regulatory genes of Arabidopsis. Mol. Biol. Evol., 2006. 23(2): p. 469-78 [PMID:16280546] Asahina M,Satoh S Molecular and physiological mechanisms regulating tissue reunion in incised plant tissues. J. Plant Res., 2015. 128(3): p. 381-8 [PMID:25736731] Matsuoka K, et al. Differential Cellular Control by Cotyledon-Derived Phytohormones Involved in Graft Reunion of Arabidopsis Hypocotyls. Plant Cell Physiol., 2016. 57(12): p. 2620-2631 [PMID:27986917]
