Transcription Factor Information

Basic Information | Signature Domain | Sequence |

Basic Information? help Back to Top

TF ID

XP_009122571.1

Organism

Brassica rapa

Taxonomic ID

3711

Taxonomic Lineage

cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; rosids; malvids; Brassicales; Brassicaceae; Brassiceae; Brassica

Family

MYB_related

Protein Properties

Length: 207aa MW: 23721.4 Da PI: 7.0982

Description

MYB_related family protein

Gene Model

Gene Model ID	Type	Source	Coding Sequence
XP_009122571.1	genome	NCBI	View CDS

Signature Domain? help Back to Top

No.	Domain	Score	E-value	Start	End	HMM Start	HMM End
1	Myb_DNA-binding	44.5	3.5e-14	91	135	3	47
SS-HHHHHHHHHHHHHTTTT-HHHHHHHHTTTS-HHHHHHHHHHH CS Myb_DNA-binding 3 rWTteEdellvdavkqlGggtWktIartmgkgRtlkqcksrwqky 47 +W++ E++l++ + k++G+g+W++I+r + +Rt+ q+ s+ qky XP_009122571.1 91 PWSESEHKLFLVGLKRYGKGDWRSISRNVVVTRTPTQVASHAQKY 135 8*******************************************9 PP

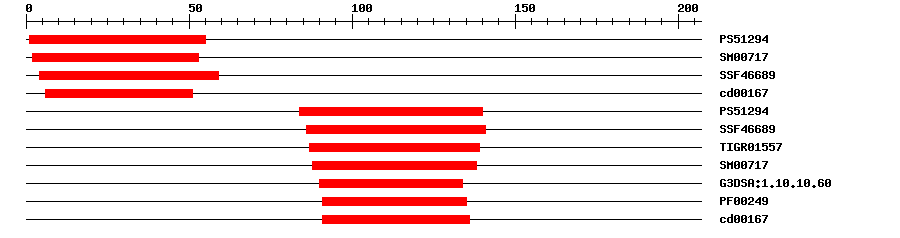

Protein Features ? help Back to Top

Database	Entry ID	E-value	Start	End	InterPro ID	Description
PROSITE profile	PS51294	8.467	1	55	IPR017930	Myb domain
SMART	SM00717	4.3E-7	2	53	IPR001005	SANT/Myb domain
SuperFamily	SSF46689	8.5E-12	4	59	IPR009057	Homeodomain-like
CDD	cd00167	5.47E-5	6	51	No hit	No description
PROSITE profile	PS51294	17.707	84	140	IPR017930	Myb domain
SuperFamily	SSF46689	1.08E-15	86	141	IPR009057	Homeodomain-like
TIGRFAMs	TIGR01557	5.6E-16	87	139	IPR006447	Myb domain, plants
SMART	SM00717	7.7E-11	88	138	IPR001005	SANT/Myb domain
Gene3D	G3DSA:1.10.10.60	4.5E-10	90	134	IPR009057	Homeodomain-like
Pfam	PF00249	3.1E-12	91	135	IPR001005	SANT/Myb domain
CDD	cd00167	2.81E-9	91	136	No hit	No description

Gene Ontology ? help Back to Top
GO Term	GO Category	GO Description
GO:0003677	Molecular Function	DNA binding

Sequence ? help Back to Top
Protein Sequence Length: 207 aa Download sequence Send to blast
MASSQWTRSE DKMFEHALVL FPEGSPNRWE IIADQLQKSA GEVREHYEAL VHDVIEIDSG 60 RVHVPRYMDD SAGQISFESI HGENERKRGT PWSESEHKLF LVGLKRYGKG DWRSISRNVV 120 VTRTPTQVAS HAQKYFLRQN SVKKERKRSS IHDITTVDTS LAMHGSNMNW NGQQGSPVQP 180 QQQQQIMSEF GQQLTPGGHL EDFSFQM

Expression -- Description ? help Back to Top
Source	Description
Uniprot	DEVELOPMENTAL STAGE: Detected in the apical inflorescence meristem, in bract primordia arising in its periphery and in floral meristems produced in the axils of bracts (stages 0-3). From stage 3 to stage 8, detected in all floral organs irrespective of their dorsoventral positions. From stage 9, barely detectable in bracts, sepals, and stamens. In the corolla, however, expression was maintained and enhanced in some regions. Within ventral and lateral petals at stage 9, asymmetric pattern of expression with high levels of transcripts in the inner epidermis of the furrow and very reduced levels in the remaining cell layers. In the dorsal petals, from stage 9 onward, detected but with a more even distribution across cell layers than in the ventral petal. {ECO:0000269\|PubMed:11937495}.

Functional Description ? help Back to Top
Source	Description
UniProt	Involved in the dorsovental asymmetry of flowers. Promotes ventral identity. {ECO:0000269\|PubMed:11937495, ECO:0000269\|PubMed:9118809}.

Cis-element ? help Back to Top
Source	Link
PlantRegMap	XP_009122571.1

Regulation -- PlantRegMap ? help Back to Top
Source	Upstream Regulator	Target Gene
PlantRegMap	Retrieve	-

Annotation -- Nucleotide ? help Back to Top
Source	Hit ID	E-value	Description
GenBank	AC189388	2e-86	AC189388.2 Brassica rapa subsp. pekinensis cultivar Inbred line 'Chiifu' clone KBrB053D06, complete sequence.

Annotation -- Protein ? help Back to Top
Source	Hit ID	E-value	Description
Refseq	XP_009122571.1	1e-154	PREDICTED: transcription factor DIVARICATA-like
Swissprot	Q8S9H7	3e-55	DIV_ANTMA; Transcription factor DIVARICATA
TrEMBL	M4CYY5	1e-153	M4CYY5_BRARP; Uncharacterized protein
STRING	Bra009432.1-P	1e-153	(Brassica rapa)

Orthologous Group ? help Back to Top
Lineage	Orthologous Group ID	Taxa Number	Gene Number
Malvids	OGEM5127	27	50

Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID	E-value	Description
AT5G04760.1	1e-116	MYB family protein

Publications ? help Back to Top
Galego L,Almeida J Role of DIVARICATA in the control of dorsoventral asymmetry in Antirrhinum flowers. Genes Dev., 2002. 16(7): p. 880-91 [PMID:11937495] Almeida J,Rocheta M,Galego L Genetic control of flower shape in Antirrhinum majus. Development, 1997. 124(7): p. 1387-92 [PMID:9118809]
