Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID XP_009131500.1
Organism
Brassica rapa
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; rosids; malvids; Brassicales; Brassicaceae; Brassiceae; Brassica
Family MIKC_MADS
Protein Properties Length: 250aa    MW: 28549.5 Da    PI: 8.4424
Description MIKC_MADS family protein
Gene Model
Gene Model ID Type Source Coding Sequence
XP_009131500.1genomeNCBIView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1SRF-TF99.81.1e-31959151
                    S---SHHHHHHHHHHHHHHHHHHHHHHHHHHT-EEEEEEE-TTSEEEEEE- CS
          SRF-TF  1 krienksnrqvtfskRrngilKKAeELSvLCdaevaviifsstgklyeyss 51
                    krienk+nrqvtf+kRrng+lKKA+ELSvLCdaeva+iifs++gklye++s
  XP_009131500.1  9 KRIENKINRQVTFAKRRNGLLKKAYELSVLCDAEVALIIFSNRGKLYEFCS 59
                    79***********************************************96 PP
2K-box94.71.5e-3178173499
           K-box   4 ssgksleeakaeslqqelakLkkeienLqreqRhllGedLesLslkeLqqLeqqLekslkkiRskKnellleqieelqkkekelqeenkaLrkkl 98
                      + +++ +++ e++++e+ kLk ++e Lqr+qR+llGedL++L+ keL+q+e+qL+ slk++Rs K++++l+q+++lq ke++l e+n+aL +kl
  XP_009131500.1  78 IEVNNKPAKELENSYREYLKLKGRYEGLQRQQRNLLGEDLGPLNSKELEQIERQLDGSLKQVRSIKTQYMLDQLSDLQTKEQMLLETNRALAMKL 172
                     56667788999*********************************************************************************998 PP

           K-box  99 e 99
                     +
  XP_009131500.1 173 D 173
                     7 PP

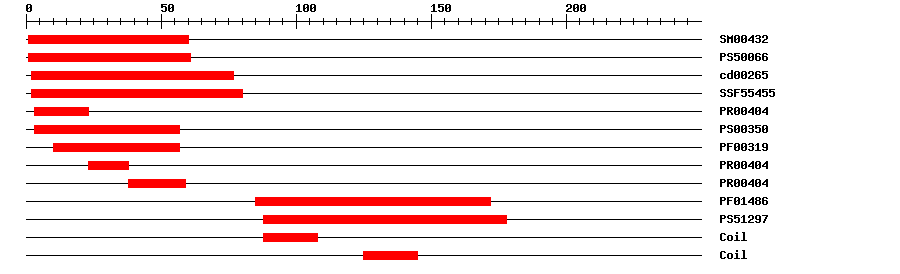

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
SMARTSM004321.3E-41160IPR002100Transcription factor, MADS-box
PROSITE profilePS5006633.515161IPR002100Transcription factor, MADS-box
CDDcd002659.19E-46277No hitNo description
SuperFamilySSF554554.58E-34280IPR002100Transcription factor, MADS-box
PRINTSPR004049.3E-33323IPR002100Transcription factor, MADS-box
PROSITE patternPS003500357IPR002100Transcription factor, MADS-box
PfamPF003192.4E-261057IPR002100Transcription factor, MADS-box
PRINTSPR004049.3E-332338IPR002100Transcription factor, MADS-box
PRINTSPR004049.3E-333859IPR002100Transcription factor, MADS-box
PfamPF014861.0E-2485172IPR002487Transcription factor, K-box
PROSITE profilePS5129714.31788178IPR002487Transcription factor, K-box
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0006355Biological Processregulation of transcription, DNA-templated
GO:0005634Cellular Componentnucleus
GO:0003677Molecular FunctionDNA binding
GO:0003700Molecular Functiontranscription factor activity, sequence-specific DNA binding
GO:0046983Molecular Functionprotein dimerization activity
Sequence ? help Back to Top
Protein Sequence    Length: 250 aa     Download sequence    Send to blast
MGRGRVELKR IENKINRQVT FAKRRNGLLK KAYELSVLCD AEVALIIFSN RGKLYEFCSS  60
SNMIKTLERY QKCSYGSIEV NNKPAKELEN SYREYLKLKG RYEGLQRQQR NLLGEDLGPL  120
NSKELEQIER QLDGSLKQVR SIKTQYMLDQ LSDLQTKEQM LLETNRALAM KLDDMIGVRS  180
HHMGGGGGGW EGNEHNVSYA HHQAQSQGLF QPLECNPTLQ MGYDNPVCSE QITATTQAQA  240
QPGYIPDWML

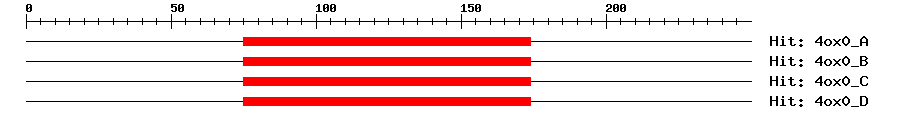

3D Structure ? help Back to Top
Structure
PDB ID Evalue Query Start Query End Hit Start Hit End Description
4ox0_A1e-34751741103Developmental protein SEPALLATA 3
4ox0_B1e-34751741103Developmental protein SEPALLATA 3
4ox0_C1e-34751741103Developmental protein SEPALLATA 3
4ox0_D1e-34751741103Developmental protein SEPALLATA 3
Search in ModeBase
Expression -- UniGene ? help Back to Top
UniGene ID E-value Expressed in
Bra.314230.0flower
Expression -- Description ? help Back to Top
Source Description
UniprotDEVELOPMENTAL STAGE: Expressed early during flower development.
UniprotTISSUE SPECIFICITY: Expressed mainly in carpels, and weakly in stamens.
Functional Description ? help Back to Top
Source Description
UniProtProbable transcription factor. Functions with SEPALLATA2/AGL4 and SEPALLATA3/AGL9 to ensure proper development of petals, stamens and carpels, and to prevent the indeterminate growth of the flower meristem. Forms a heterodimer via the K-box domain with AGAMOUS, that could be involved in genes regulation during floral meristem development.
Cis-element ? help Back to Top
SourceLink
PlantRegMapXP_009131500.1
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieve-
Annotation -- Nucleotide ? help Back to Top
Source Hit ID E-value Description
GenBankAJ5080530.0AJ508053.1 Brassica oleracea var. botrytis mRNA for MADS-box protein SEP1-a (sep1-a gene).
GenBankKC9679570.0KC967957.1 Brassica oleracea var. viridis SEP1.a (SEP1.a) mRNA, complete cds.
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_013625167.10.0PREDICTED: developmental protein SEPALLATA 1
RefseqXP_013728678.10.0developmental protein SEPALLATA 1-like
RefseqXP_013729544.10.0developmental protein SEPALLATA 1-like
SwissprotP293821e-157SEP1_ARATH; Developmental protein SEPALLATA 1
TrEMBLA0A0D3B1D90.0A0A0D3B1D9_BRAOL; Uncharacterized protein
STRINGBo3g010720.10.0(Brassica oleracea)
Orthologous Group ? help Back to Top
LineageOrthologous Group IDTaxa NumberGene Number
MalvidsOGEM32892765
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT5G15800.11e-159MIKC_MADS family protein
