Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID XP_009132143.1
Organism
Brassica rapa
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; rosids; malvids; Brassicales; Brassicaceae; Brassiceae; Brassica
Family bHLH
Protein Properties Length: 246aa    MW: 27881.5 Da    PI: 4.4281
Description bHLH family protein
Gene Model
Gene Model ID Type Source Coding Sequence
XP_009132143.1genomeNCBIView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1HLH42.51.2e-135599655
                    HHHHHHHHHHHHHHHHHHHCTSCCC...TTS-STCHHHHHHHHHHHHHHH CS
             HLH  6 nerErrRRdriNsafeeLrellPkaskapskKlsKaeiLekAveYIksLq 55
                       Er+RR+++N++++ Lr ++P+      +K++Ka+i + A+ YI+ Lq
  XP_009132143.1 55 IVLERNRRQKLNQRLFALRAVVPNI-----TKMDKASIIKDAISYIQGLQ 99
                    568*********************7.....7******************9 PP

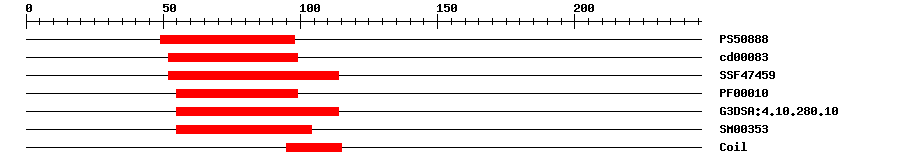

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
PROSITE profilePS5088815.9234998IPR011598Myc-type, basic helix-loop-helix (bHLH) domain
CDDcd000838.08E-135299No hitNo description
SuperFamilySSF474591.01E-1652114IPR011598Myc-type, basic helix-loop-helix (bHLH) domain
PfamPF000103.2E-115599IPR011598Myc-type, basic helix-loop-helix (bHLH) domain
Gene3DG3DSA:4.10.280.108.0E-1755114IPR011598Myc-type, basic helix-loop-helix (bHLH) domain
SMARTSM003539.8E-1455104IPR011598Myc-type, basic helix-loop-helix (bHLH) domain
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0046983Molecular Functionprotein dimerization activity
Sequence ? help Back to Top
Protein Sequence    Length: 246 aa     Download sequence    Send to blast
MDDINQEFSN YWEPNSFLQN EEFKYDSWPL EEAISGSYDS SSPDGAASSP ASKNIVLERN  60
RRQKLNQRLF ALRAVVPNIT KMDKASIIKD AISYIQGLQY EETKLEAEIR ELESTPKSSL  120
SFGKDFDCDL LVPVTSKRMK QLDSGSSRSL IEVLELKVTF MGERTMVVNV TCNKRTDTMV  180
KLCEVFESLN LKIITSNLNS FSGMIFNTLF IEADEEEQDV LRLKIESGIG AYNGAQSPTW  240
SMESLY

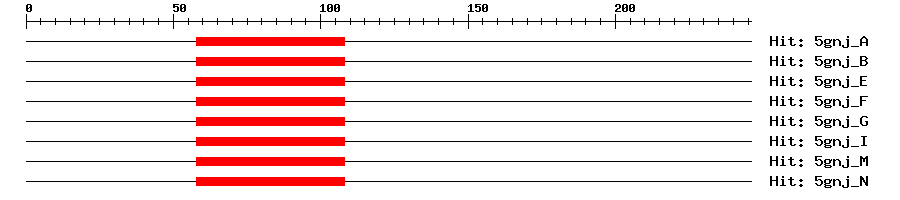

3D Structure ? help Back to Top
Structure
PDB ID Evalue Query Start Query End Hit Start Hit End Description
5gnj_A2e-14581081363Transcription factor MYC2
5gnj_B2e-14581081363Transcription factor MYC2
5gnj_E2e-14581081363Transcription factor MYC2
5gnj_F2e-14581081363Transcription factor MYC2
5gnj_G2e-14581081363Transcription factor MYC2
5gnj_I2e-14581081363Transcription factor MYC2
5gnj_M2e-14581081363Transcription factor MYC2
5gnj_N2e-14581081363Transcription factor MYC2
Search in ModeBase
Expression -- Description ? help Back to Top
Source Description
UniprotTISSUE SPECIFICITY: Expressed constitutively in roots, leaves, stems, and flowers. {ECO:0000269|PubMed:12679534}.
Cis-element ? help Back to Top
SourceLink
PlantRegMapXP_009132143.1
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieve-
Annotation -- Nucleotide ? help Back to Top
Source Hit ID E-value Description
GenBankAY0866660.0AY086666.1 Arabidopsis thaliana clone 266884 mRNA, complete sequence.
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_009132143.10.0PREDICTED: transcription factor bHLH35-like
SwissprotQ2HIV91e-159BH035_ARATH; Transcription factor bHLH35
TrEMBLM4CRJ01e-180M4CRJ0_BRARP; Uncharacterized protein
STRINGBra006831.1-P0.0(Brassica rapa)
Orthologous Group ? help Back to Top
LineageOrthologous Group IDTaxa NumberGene Number
MalvidsOGEM63672745
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT5G57150.11e-146bHLH family protein
