Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID XP_009132582.1
Organism
Brassica rapa
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; rosids; malvids; Brassicales; Brassicaceae; Brassiceae; Brassica
Family MIKC_MADS
Protein Properties Length: 209aa    MW: 23895.7 Da    PI: 9.7822
Description MIKC_MADS family protein
Gene Model
Gene Model ID Type Source Coding Sequence
XP_009132582.1genomeNCBIView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1SRF-TF89.61.6e-28959151
                    S---SHHHHHHHHHHHHHHHHHHHHHHHHHHT-EEEEEEE-TTSEEEEEE- CS
          SRF-TF  1 krienksnrqvtfskRrngilKKAeELSvLCdaevaviifsstgklyeyss 51
                    k+ien++ rqvtfskRr g++KKA+ELSvLCda+va iifs++g+ly+++s
  XP_009132582.1  9 KKIENTTSRQVTFSKRRSGLFKKAHELSVLCDAQVAAIIFSQKGRLYDFAS 59
                    68***********************************************86 PP
2K-box60.19.1e-21841711097
           K-box  10 eeakaeslqqelakLkkeienLqreqRhllGedLesLslkeLqqLeqqLekslkkiRskKnellleqieelqkkekelqeenkaLrkk 97
                     +e+  + l++e+  + ++ie+L+  + +l+G++L  +slkeLq++ +q+eksl  +Rs+K +l+ +++e+l+ k +el++e  +L+ +
  XP_009132582.1  84 TEQYVQGLKKEMVTMVEKIEMLEVHNQKLMGKSLAFCSLKELQEIATQIEKSLHIVRSRKAKLYEDEVEKLKAKGRELKDERVRLSGR 171
                     6788899****************999*******************************************************9998765 PP
Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
SMARTSM004322.1E-40160IPR002100Transcription factor, MADS-box
PROSITE profilePS5006631.511161IPR002100Transcription factor, MADS-box
PRINTSPR004042.7E-29323IPR002100Transcription factor, MADS-box
SuperFamilySSF554552.22E-31388IPR002100Transcription factor, MADS-box
CDDcd002657.30E-41374No hitNo description
PfamPF003194.5E-261057IPR002100Transcription factor, MADS-box
PRINTSPR004042.7E-292338IPR002100Transcription factor, MADS-box
PRINTSPR004042.7E-293859IPR002100Transcription factor, MADS-box
PfamPF014865.7E-1988170IPR002487Transcription factor, K-box
PROSITE profilePS5129711.48788178IPR002487Transcription factor, K-box
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0006355Biological Processregulation of transcription, DNA-templated
GO:0005634Cellular Componentnucleus
GO:0003677Molecular FunctionDNA binding
GO:0003700Molecular Functiontranscription factor activity, sequence-specific DNA binding
GO:0046983Molecular Functionprotein dimerization activity
Sequence ? help Back to Top
Protein Sequence    Length: 209 aa     Download sequence    Send to blast
MVRGKIQIKK IENTTSRQVT FSKRRSGLFK KAHELSVLCD AQVAAIIFSQ KGRLYDFASS  60
DIQKTIKRYA EYKGEYFVAE SHPTEQYVQG LKKEMVTMVE KIEMLEVHNQ KLMGKSLAFC  120
SLKELQEIAT QIEKSLHIVR SRKAKLYEDE VEKLKAKGRE LKDERVRLSG RVGEEPSGMP  180
MPSGSKEKED VETDLSIGFR PDLNILLVP

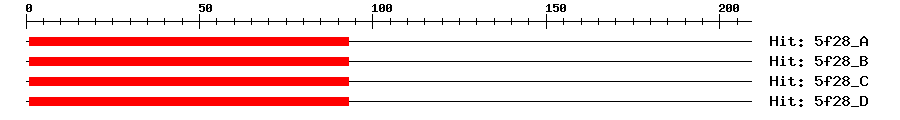

3D Structure ? help Back to Top
Structure
PDB ID Evalue Query Start Query End Hit Start Hit End Description
5f28_A4e-21193190MEF2C
5f28_B4e-21193190MEF2C
5f28_C4e-21193190MEF2C
5f28_D4e-21193190MEF2C
Search in ModeBase
Expression -- UniGene ? help Back to Top
UniGene ID E-value Expressed in
Bra.241421e-175flower| root
Expression -- Description ? help Back to Top
Source Description
UniprotDEVELOPMENTAL STAGE: Expressed in the shoot apical meristem (SAM) during the vegetative phase and the floral transition. After floral transition, expressed in apical meristem (AM), inflorescence meristem (IM) and floral primordia. {ECO:0000269|PubMed:21609362}.
Functional Description ? help Back to Top
Source Description
UniProtMADS-box transcription factor that acts with AGL42 and AGL71 in the control of flowering time. Promotes flowering at the shoot apical and axillary meristems. Seems to act through a gibberellin-dependent pathway. Interacts genetically with SOC1 and its expression is directly regulated by SOC1. {ECO:0000269|PubMed:21609362}.
Cis-element ? help Back to Top
SourceLink
PlantRegMapXP_009132582.1
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieve-
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_009132583.11e-152PREDICTED: MADS-box protein AGL72-like
RefseqXP_009132584.11e-152PREDICTED: MADS-box protein AGL72-like
RefseqXP_013640563.11e-152MADS-box protein AGL72-like
RefseqXP_022571027.11e-152MADS-box protein AGL72-like
SwissprotQ9FLH51e-115AGL72_ARATH; MADS-box protein AGL72
TrEMBLA0A398A2H21e-150A0A398A2H2_BRACM; Uncharacterized protein
TrEMBLM4EK381e-150M4EK38_BRARP; Uncharacterized protein
STRINGBra029155.1-P1e-151(Brassica rapa)
Orthologous Group ? help Back to Top
LineageOrthologous Group IDTaxa NumberGene Number
MalvidsOGEM7828413
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT5G51860.21e-120MIKC_MADS family protein
Publications ? help Back to Top
  1. Duarte JM, et al.
    Expression pattern shifts following duplication indicative of subfunctionalization and neofunctionalization in regulatory genes of Arabidopsis.
    Mol. Biol. Evol., 2006. 23(2): p. 469-78
    [PMID:16280546]
