PlantTFDB - Plant Transcription Factor Database @ CBI, PKU

PlantRegMap/PlantTFDB v5.0

Plant Transcription Factor Database

Transcription Factor Information

Basic Information | Signature Domain | Sequence |

Basic Information? help Back to Top

TF ID

XP_009141875.1

Organism

Brassica rapa

Taxonomic ID

3711

Taxonomic Lineage

cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; rosids; malvids; Brassicales; Brassicaceae; Brassiceae; Brassica

Family

bHLH

Protein Properties

Length: 253aa MW: 28118.5 Da PI: 7.7935

Description

bHLH family protein

Gene Model

Gene Model ID	Type	Source	Coding Sequence
XP_009141875.1	genome	NCBI	View CDS

Signature Domain? help Back to Top

No.	Domain	Score	E-value	Start	End	HMM Start	HMM End
1	HLH	40.2	6.2e-13	65	111	3	54
HHHHHHHHHHHHHHHHHHHHHHCTSCCC...TTS-STCHHHHHHHHHHHHHH CS HLH 3 rahnerErrRRdriNsafeeLrellPkaskapskKlsKaeiLekAveYIksL 54 r+h +E+rRRdriNs ++ Lr+l+P++ Kl+Ka+ L ++e +k+L XP_009141875.1 65 RSHRLAEKRRRDRINSHLSALRKLVPNS-----DKLDKAALLATVIEQVKEL 111 68***********************8.....7***********99988 PP

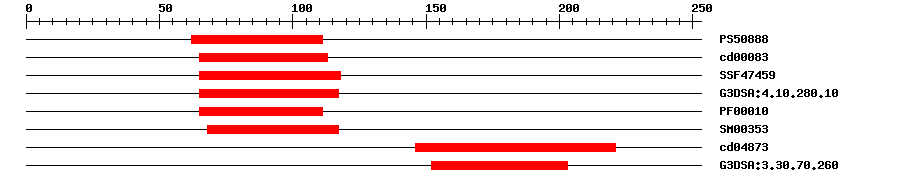

Protein Features ? help Back to Top

Database	Entry ID	E-value	Start	End	InterPro ID	Description
PROSITE profile	PS50888	15.135	62	111	IPR011598	Myc-type, basic helix-loop-helix (bHLH) domain
CDD	cd00083	2.94E-12	65	113	No hit	No description
SuperFamily	SSF47459	1.44E-13	65	118	IPR011598	Myc-type, basic helix-loop-helix (bHLH) domain
Gene3D	G3DSA:4.10.280.10	4.5E-14	65	117	IPR011598	Myc-type, basic helix-loop-helix (bHLH) domain
Pfam	PF00010	1.6E-10	65	111	IPR011598	Myc-type, basic helix-loop-helix (bHLH) domain
SMART	SM00353	1.8E-11	68	117	IPR011598	Myc-type, basic helix-loop-helix (bHLH) domain
CDD	cd04873	0.00127	146	221	No hit	No description
Gene3D	G3DSA:3.30.70.260	9.2E-4	152	203	No hit	No description

Gene Ontology ? help Back to Top
GO Term	GO Category	GO Description
GO:0046983	Molecular Function	protein dimerization activity

Sequence ? help Back to Top
Protein Sequence Length: 253 aa Download sequence Send to blast
MENSYESAAK WSDSNSPYNM LSCSLLQSDS DLSRFNLGFS SSSSSGNFPS DEFVGGIEKG 60 ELLSRSHRLA EKRRRDRINS HLSALRKLVP NSDKLDKAAL LATVIEQVKE LKQTATQSPT 120 FQELPTEANE VTVQPETISN DFEPDTIIFK ASFCCEDQPE AISEIIRVLT KFQLETLQAE 180 IICVGGRLRI NFILKDSNCK DTTTNSVSST KALKQSLCAA LNRIASSSSS STSSVSRIRS 240 KRQRWFLSSH YSQ

Expression -- Description ? help Back to Top
Source	Description
Uniprot	TISSUE SPECIFICITY: Expressed constitutively in roots, stems, and flowers. {ECO:0000269\|PubMed:12679534}.

Cis-element ? help Back to Top
Source	Link
PlantRegMap	XP_009141875.1

Regulation -- Description ? help Back to Top
Source	Description
UniProt	INDUCTION: Repressed by salicylic acid (SA) treatment. {ECO:0000269\|PubMed:12679534}.

Regulation -- PlantRegMap ? help Back to Top
Source	Upstream Regulator	Target Gene
PlantRegMap	Retrieve	-

Annotation -- Nucleotide ? help Back to Top
Source	Hit ID	E-value	Description
GenBank	AC232572	0.0	AC232572.1 Brassica rapa subsp. pekinensis cultivar Inbred line 'Chiifu' clone KBrS005G02, complete sequence.

Annotation -- Protein ? help Back to Top
Source	Hit ID	E-value	Description
Refseq	XP_009141875.1	0.0	PREDICTED: transcription factor bHLH51-like
Swissprot	Q9XEF0	1e-133	BH051_ARATH; Transcription factor bHLH51
TrEMBL	M4DKJ4	0.0	M4DKJ4_BRARP; Uncharacterized protein
STRING	Bra017024.1-P	0.0	(Brassica rapa)

Orthologous Group ? help Back to Top
Lineage	Orthologous Group ID	Taxa Number	Gene Number
Malvids	OGEM6806	25	42

Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID	E-value	Description
AT2G40200.1	1e-120	bHLH family protein

Publications ? help Back to Top
Skinner MK,Rawls A,Wilson-Rawls J,Roalson EH Basic helix-loop-helix transcription factor gene family phylogenetics and nomenclature. Differentiation, 2010. 80(1): p. 1-8 [PMID:20219281]
