Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID XP_009149987.1
Organism
Brassica rapa
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; rosids; malvids; Brassicales; Brassicaceae; Brassiceae; Brassica
Family MYB_related
Protein Properties Length: 221aa    MW: 25764.8 Da    PI: 9.5633
Description MYB_related family protein
Gene Model
Gene Model ID Type Source Coding Sequence
XP_009149987.1genomeNCBIView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1Myb_DNA-binding551.9e-173277148
                     TSSS-HHHHHHHHHHHHHTTTT-HHHHHHHHTTTS-HHHHHHHHHHHT CS
  Myb_DNA-binding  1 rgrWTteEdellvdavkqlGggtWktIartmgkgRtlkqcksrwqkyl 48
                     rg++T++E+ l  ++++++G++ W++Iar+++ gRt++++k++w++++
   XP_009149987.1 32 RGKMTPQEERLVTELHAKWGNR-WSKIARKLP-GRTDNEIKNYWRTHM 77
                     89********************.*********.************986 PP

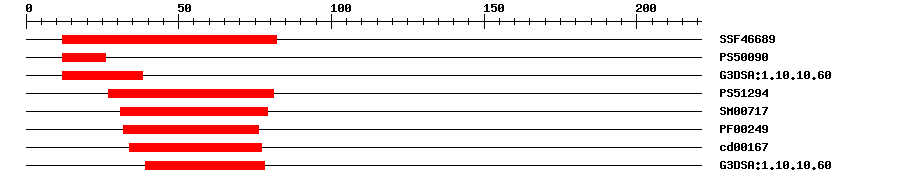

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
SuperFamilySSF466898.36E-221282IPR009057Homeodomain-like
PROSITE profilePS500904.4261226IPR017877Myb-like domain
Gene3DG3DSA:1.10.10.601.0E-91238IPR009057Homeodomain-like
PROSITE profilePS5129426.7362781IPR017930Myb domain
SMARTSM007177.9E-173179IPR001005SANT/Myb domain
PfamPF002491.3E-153276IPR001005SANT/Myb domain
CDDcd001671.07E-113477No hitNo description
Gene3DG3DSA:1.10.10.601.8E-203978IPR009057Homeodomain-like
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0009751Biological Processresponse to salicylic acid
GO:0005634Cellular Componentnucleus
GO:0003677Molecular FunctionDNA binding
Sequence ? help Back to Top
Protein Sequence    Length: 221 aa     Download sequence    Send to blast
MDRTRRHHSG LNRTGKSCRL RWVNYLHPGL KRGKMTPQEE RLVTELHAKW GNRWSKIARK  60
LPGRTDNEIK NYWRTHMRKK AQEKKRHVSP SSSCSNCCSS SMTTTNTQDV SFESRMSSGK  120
VSFYDTGGNR EMNQEETKDG YSMDDIWKEI DHSAVNIIQP VKDIYLEQSY CLSYPNMASP  180
TWESSLDSIW KMEEDKSKMS SFGNDQFPFC FQHSRSPWSS G
3D Structure ? help Back to Top
Structure
PDB ID Evalue Query Start Query End Hit Start Hit End Description
1gv2_A4e-18138137105MYB PROTO-ONCOGENE PROTEIN
Search in ModeBase
Expression -- UniGene ? help Back to Top
UniGene ID E-value Expressed in
Bra.289790.0leaf| root
Expression -- Description ? help Back to Top
Source Description
UniprotTISSUE SPECIFICITY: Mainly expressed in leaves and seedlings, and to a lower extent, in roots, stems and inflorescences. Isoform MYB48-1, isoform MYB48-3 and isoform MYB48-4 are present in all of these organs, but isoform MYB48-2 is confined to leaves. {ECO:0000269|PubMed:16531467}.
Functional Description ? help Back to Top
Source Description
UniProtTranscription factor. {ECO:0000305}.
Cis-element ? help Back to Top
SourceLink
PlantRegMapXP_009149987.1
Regulation -- Description ? help Back to Top
Source Description
UniProtINDUCTION: By salicylic acid (SA). {ECO:0000269|PubMed:16463103}.
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieve-
Annotation -- Nucleotide ? help Back to Top
Source Hit ID E-value Description
GenBankKF6195390.0KF619539.1 Brassica juncea var. tumida transcription factor MYB1-3 mRNA, complete cds.
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_009149987.11e-167PREDICTED: transcription factor MYB48 isoform X2
SwissprotQ9LX821e-116MYB48_ARATH; Transcription factor MYB48
TrEMBLA0A397Z0W11e-164A0A397Z0W1_BRACM; Uncharacterized protein
STRINGBra018223.1-P1e-158(Brassica rapa)
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT3G46130.31e-121myb domain protein 48
Publications ? help Back to Top
  1. Duarte JM, et al.
    Expression pattern shifts following duplication indicative of subfunctionalization and neofunctionalization in regulatory genes of Arabidopsis.
    Mol. Biol. Evol., 2006. 23(2): p. 469-78
    [PMID:16280546]
  2. Ding Y, et al.
    Four distinct types of dehydration stress memory genes in Arabidopsis thaliana.
    BMC Plant Biol., 2013. 13: p. 229
    [PMID:24377444]
  3. Nishida S,Kakei Y,Shimada Y,Fujiwara T
    Genome-wide analysis of specific alterations in transcript structure and accumulation caused by nutrient deficiencies in Arabidopsis thaliana.
    Plant J., 2017. 91(4): p. 741-753
    [PMID:28586097]
  4. Imran QM, et al.
    Transcriptome profile of NO-induced Arabidopsis transcription factor genes suggests their putative regulatory role in multiple biological processes.
    Sci Rep, 2018. 8(1): p. 771
    [PMID:29335449]
