Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID XP_009594709.1
Organism
Nicotiana tomentosiformis
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; asterids; lamiids; Solanales; Solanaceae; Nicotianoideae; Nicotianeae; Nicotiana
Family MYB_related
Protein Properties Length: 178aa    MW: 20612.6 Da    PI: 9.8577
Description MYB_related family protein
Gene Model
Gene Model ID Type Source Coding Sequence
XP_009594709.1genomeNCBIView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1Myb_DNA-binding44.83e-143883148
                     TSSS-HHHHHHHHHHHHHTTTT-HHHHHHHHTTTS-HHHHHHHHHHHT CS
  Myb_DNA-binding  1 rgrWTteEdellvdavkqlGggtWktIartmgkgRtlkqcksrwqkyl 48
                     rg+ + eE e+ v+  ++lG++ W+tIa++++ gRt++++k++++++l
   XP_009594709.1 38 RGPLSMEEVEIVVKMYQELGNR-WSTIAARLP-GRTDNEVKNFFHTHL 83
                     788899****************.*********.************986 PP

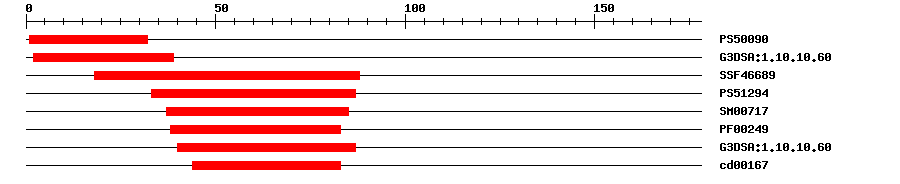

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
PROSITE profilePS500906.388132IPR017877Myb-like domain
Gene3DG3DSA:1.10.10.601.1E-10239IPR009057Homeodomain-like
SuperFamilySSF466891.09E-201888IPR009057Homeodomain-like
PROSITE profilePS5129419.3573387IPR017930Myb domain
SMARTSM007174.1E-123785IPR001005SANT/Myb domain
PfamPF002491.0E-113883IPR001005SANT/Myb domain
Gene3DG3DSA:1.10.10.609.9E-224087IPR009057Homeodomain-like
CDDcd001678.49E-94483No hitNo description
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0003677Molecular FunctionDNA binding
Sequence ? help Back to Top
Protein Sequence    Length: 178 aa     Download sequence    Send to blast
MKYGIWNWSQ MPIFAGLSRT GKSCRLRWVN YLCPDVKRGP LSMEEVEIVV KMYQELGNRW  60
STIAARLPGR TDNEVKNFFH THLKKHLGLK NNAPLKIMAR RKRVDQTKEN DKTNTIEAEE  120
RPVLGTTSTS SSWLLSPDVS SPCSSTMTHE ENQMMDVVNF SQTYLNWYNV NVENTVRK
3D Structure ? help Back to Top
Structure
PDB ID Evalue Query Start Query End Hit Start Hit End Description
1h8a_C1e-1618543126MYB TRANSFORMING PROTEIN
Search in ModeBase
Functional Description ? help Back to Top
Source Description
UniProtTranscriptional activator that binds DNA to the AC cis-elements 5'-ACCTACC-3', 5'-ACCAACC-3' and 5'-ACCTAAC-3' of promoters and specifically activates lignin biosynthetic genes during secondary wall formation mediated by SND1. {ECO:0000269|PubMed:19122102}.
Regulation -- Description ? help Back to Top
Source Description
UniProtINDUCTION: Slightly induced by light (PubMed:9839469). Regulated by the SND1 close homologs NST1, NST2, VND6, and VND7 and their downstream targets MYB46 and MYB83 (PubMed:19122102, PubMed:22197883). {ECO:0000269|PubMed:19122102, ECO:0000269|PubMed:22197883, ECO:0000269|PubMed:9839469}.
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieve-
Annotation -- Nucleotide ? help Back to Top
Source Hit ID E-value Description
GenBankHG9754426e-34HG975442.1 Solanum pennellii chromosome ch03, complete genome.
GenBankHG9755156e-34HG975515.1 Solanum lycopersicum chromosome ch03, complete genome.
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_018624629.11e-130PREDICTED: transcription factor MYB82-like isoform X4
SwissprotQ9SA479e-34MYB58_ARATH; Transcription factor MYB58
TrEMBLA0A1J6JBL11e-107A0A1J6JBL1_NICAT; Myb-related protein myb4
STRINGXP_009594709.11e-132(Nicotiana tomentosiformis)
Orthologous Group ? help Back to Top
LineageOrthologous Group IDTaxa NumberGene Number
AsteridsOGEA12242154
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT1G16490.15e-36myb domain protein 58
Publications ? help Back to Top
  1. Fernández-Pérez F,Vivar T,Pomar F,Pedreño MA,Novo-Uzal E
    Peroxidase 4 is involved in syringyl lignin formation in Arabidopsis thaliana.
    J. Plant Physiol., 2015. 175: p. 86-94
    [PMID:25506770]
  2. Noda S, et al.
    The expression of a rice secondary wall-specific cellulose synthase gene, OsCesA7, is directly regulated by a rice transcription factor, OsMYB58/63.
    Planta, 2015. 242(3): p. 589-600
    [PMID:26070439]
  3. Takeuchi M,Kegasa T,Watanabe A,Tamura M,Tsutsumi Y
    Expression analysis of transporter genes for screening candidate monolignol transporters using Arabidopsis thaliana cell suspensions during tracheary element differentiation.
    J. Plant Res., 2018. 131(2): p. 297-305
    [PMID:28921082]
