Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID XP_009613661.1
Organism
Nicotiana tomentosiformis
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; asterids; lamiids; Solanales; Solanaceae; Nicotianoideae; Nicotianeae; Nicotiana
Family B3
Protein Properties Length: 797aa    MW: 89129.1 Da    PI: 9.918
Description B3 family protein
Gene Model
Gene Model ID Type Source Coding Sequence
XP_009613661.1genomeNCBIView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1B3512.6e-16243335498
                     E-..-HHHHTT-EE--HHH.HTT---..--SEEEEEETTS-EEEEEE..EEETTEEEE-TTHHHHHHHHT--TT-EEEEEE-SSSEE..EEEEE- CS
              B3   4 vltpsdvlksgrlvlpkkfaeehggkkeesktltledesgrsWevkliyrkksgryvltkGWkeFvkangLkegDfvvFkldgrsefelvvkvfr 98
                      + ps+v++   l++  kfa+++ +++ ++  l++  +   sW+vk+  + ++      +GWk Fv +n+Lk gD++vF++++ ++    v++fr
  XP_009613661.1 243 FMQPSYVFSPFSLSIALKFARKYFLENYGNLVLRVPGRGRGSWSVKC--TTRGTNAKVHSGWKAFVLDNKLKCGDVCVFEVIKGTRLFIDVTIFR 335
                     5789*******************88888887888888888*******..66666677899********************987655556677766 PP
2B336.96.3e-12498590598
                     -..-HHHHTT-EE--HHH.HTT---..--SEEEEEETTS-EEEEEE..EEETTEEEE-TTHHHHHHHHT--TT-EEEEEE-SS.SEE..EEEEE- CS
              B3   5 ltpsdvlksgrlvlpkkfaeehggkkeesktltledesgrsWevkliyrkksgryvltkGWkeFvkangLkegDfvvFkldgr.sefelvvkvfr 98
                     + ps+v+k   l ++  fa ++  ++ ++  l++  + + sW vk+   k++ ++ ++  Wk Fv +n+Lk gD +vF+l++  ++  l v++fr
  XP_009613661.1 498 MQPSYVSKPYSLHISLLFAVKYFRENCGNLVLRVPGSGSGSWPVKYALGKSKPKICFS--WKAFVLDNKLKFGDACVFELIKGgTKPILDVTIFR 590
                     67899999999***********65544544555555666*******988888888888..********************976566667777776 PP
3B354.12.9e-17697787395
                     EE-..-HHHHT....T-EE--HHH.HTT---..--SEEEEEETTS-EEEEEE..EEETTEEEE-TTHHHHHHHHT--TT-EEEEEE-SSSEE..E CS
              B3   3 kvltpsdvlks....grlvlpkkfaeehggkkeesktltledesgrsWevkliyrkksgryvltkGWkeFvkangLkegDfvvFkldgrsefelv 93
                     + ++++++ +s     +l++  + a+++   k++  +++l+++s rsW vk+  + +     lt+GWkeFv +n+Lk+gD++vF++++rs+   +
  XP_009613661.1 697 TCFMQPSYVSSasgpMQLSITLSRARKFFAAKHS--DVVLQNSSKRSWAVKC--SLGTVNAKLTSGWKEFVLDNNLKVGDVCVFERVSRSKL--L 785
                     5555444444446668899999999999755444..8***************..55555677***********************7766555..4 PP

                     EE CS
              B3  94 vk 95
                     +
  XP_009613661.1 786 FN 787
                     44 PP

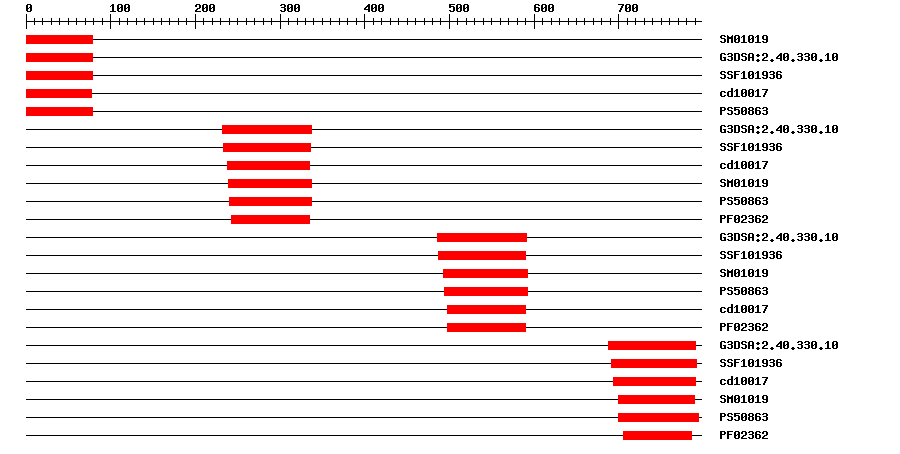

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
SMARTSM010190.038179IPR003340B3 DNA binding domain
Gene3DG3DSA:2.40.330.103.3E-13179IPR015300DNA-binding pseudobarrel domain
SuperFamilySSF1019364.9E-13179IPR015300DNA-binding pseudobarrel domain
CDDcd100175.87E-8177No hitNo description
PROSITE profilePS5086312.478179IPR003340B3 DNA binding domain
Gene3DG3DSA:2.40.330.105.2E-21232337IPR015300DNA-binding pseudobarrel domain
SuperFamilySSF1019363.01E-19233336IPR015300DNA-binding pseudobarrel domain
CDDcd100172.69E-17238335No hitNo description
SMARTSM010195.2E-12239337IPR003340B3 DNA binding domain
PROSITE profilePS5086311.561240337IPR003340B3 DNA binding domain
PfamPF023622.9E-13243335IPR003340B3 DNA binding domain
Gene3DG3DSA:2.40.330.101.4E-16486591IPR015300DNA-binding pseudobarrel domain
SuperFamilySSF1019361.12E-16487590IPR015300DNA-binding pseudobarrel domain
SMARTSM010191.3E-11493592IPR003340B3 DNA binding domain
PROSITE profilePS5086310.644494592IPR003340B3 DNA binding domain
CDDcd100179.26E-15498590No hitNo description
PfamPF023621.7E-9498590IPR003340B3 DNA binding domain
Gene3DG3DSA:2.40.330.104.2E-23688791IPR015300DNA-binding pseudobarrel domain
SuperFamilySSF1019364.32E-20691792IPR015300DNA-binding pseudobarrel domain
CDDcd100172.34E-15694791No hitNo description
SMARTSM010197.4E-10699789IPR003340B3 DNA binding domain
PROSITE profilePS5086313.084699794IPR003340B3 DNA binding domain
PfamPF023624.8E-15706786IPR003340B3 DNA binding domain
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0003677Molecular FunctionDNA binding
Sequence ? help Back to Top
Protein Sequence    Length: 797 aa     Download sequence    Send to blast
MRIPEDFASI YCKNMLNPVY LEVPSGEVWE VEVVHSQGQI CLGIGWQDFS DFYSISRGHF  60
LMFGYNARSH FNVSIFDLSA SEIEYPYSSA HGIHTPIFHC HETRHAPKRD QSESDDSVEI  120
LEGIPRSQKA KAIIPDTIEH SVENLGHCPL GQSSKRKRKE GDTENDVSVD MHIKRMEVEK  180
SQENVASPSF TREGKKSNKG CRMQKQQSES VYGPNKAVMD RKSAVAYQRA KAFKSKNPFM  240
TSFMQPSYVF SPFSLSIALK FARKYFLENY GNLVLRVPGR GRGSWSVKCT TRGTNAKVHS  300
GWKAFVLDNK LKCGDVCVFE VIKGTRLFID VTIFRAAGST LMHKIIGEVP GDSDSKSNVF  360
KTDNCVPCSQ PKVVHTKKLK QRKGEEHGEG TEIEHSVEIL GHCPLAHGSK RKRPEGEAEG  420
NVSIDIHTKS INVENTQEHA ASPSITRKTK RSGESCRMHK QQSEVVYAKN KTVDKERSIA  480
YQRAKAFTSE NPFVIYFMQP SYVSKPYSLH ISLLFAVKYF RENCGNLVLR VPGSGSGSWP  540
VKYALGKSKP KICFSWKAFV LDNKLKFGDA CVFELIKGGT KPILDVTIFR AAESKPMHKI  600
DAKLAGVSDS KKKTIKTENS VPCSQPKIVH SRKLNFEKKQ RGDSDCFTSK IKEEPSEAAG  660
KHVQQSKSSC KGSAVAKEMV LAYLRAKAFT SENPFFTCFM QPSYVSSASG PMQLSITLSR  720
ARKFFAAKHS DVVLQNSSKR SWAVKCSLGT VNAKLTSGWK EFVLDNNLKV GDVCVFERVS  780
RSKLLFNVII YTSAEGM
3D Structure ? help Back to Top
Structure
PDB ID Evalue Query Start Query End Hit Start Hit End Description
4i1k_A6e-1420933518141B3 domain-containing transcription factor VRN1
4i1k_B6e-1420933518141B3 domain-containing transcription factor VRN1
Search in ModeBase
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieve-
Annotation -- Nucleotide ? help Back to Top
Source Hit ID E-value Description
GenBankHG9754411e-44HG975441.1 Solanum pennellii chromosome ch02, complete genome.
GenBankHG9755141e-44HG975514.1 Solanum lycopersicum chromosome ch02, complete genome.
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_009613660.10.0PREDICTED: putative B3 domain-containing protein Os03g0621600 isoform X1
TrEMBLA0A1S4BPD70.0A0A1S4BPD7_TOBAC; putative B3 domain-containing protein Os03g0621600 isoform X2
STRINGXP_009613660.10.0(Nicotiana tomentosiformis)
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT3G18990.12e-32B3 family protein
