Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID XP_009614318.1
Organism
Nicotiana tomentosiformis
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; asterids; lamiids; Solanales; Solanaceae; Nicotianoideae; Nicotianeae; Nicotiana
Family B3
Protein Properties Length: 170aa    MW: 19838.2 Da    PI: 4.7621
Description B3 family protein
Gene Model
Gene Model ID Type Source Coding Sequence
XP_009614318.1genomeNCBIView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1B348.51.6e-151690998
                    HHHHTT-EE--HHH.HTT---..--SEEEEEETTS-EEEEEE..EEETTEEEE-TTHHHHHHHHT--TT-EEEEEE-SSSEE..EEEEE- CS
              B3  9 dvlksgrlvlpkkfaeehggkkeesktltledesgrsWevkliyrkksgryvltkGWkeFvkangLkegDfvvFkldgrsefelvvkvfr 98
                      +k++ l +p  f++ h+++        +  + g++W vk+  ++++    l++GW++F+++++L+ gD++vF+++g++ef  +v +f+
  XP_009614318.1 16 PGFKHA-LNIPLGFLTGHEHE------HAVLKRAGKKWLVKV--NGHR----LEEGWEKFAEEHDLQLGDMLVFRHEGNMEF--KVVIFD 90
                    455555.99******999755......467789*********..7777....*************************99999..888887 PP

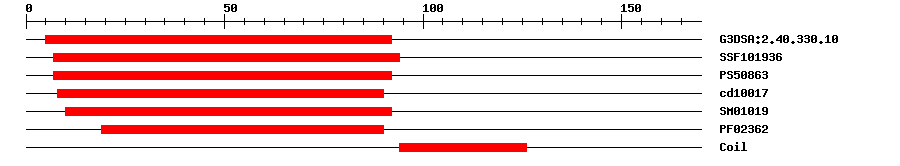

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
Gene3DG3DSA:2.40.330.104.7E-20592IPR015300DNA-binding pseudobarrel domain
SuperFamilySSF1019362.55E-19794IPR015300DNA-binding pseudobarrel domain
PROSITE profilePS5086312.026792IPR003340B3 DNA binding domain
CDDcd100176.83E-16890No hitNo description
SMARTSM010191.9E-131092IPR003340B3 DNA binding domain
PfamPF023628.7E-121990IPR003340B3 DNA binding domain
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0003677Molecular FunctionDNA binding
Sequence ? help Back to Top
Protein Sequence    Length: 170 aa     Download sequence    Send to blast
MKVPPVKPHF FKPIQPGFKH ALNIPLGFLT GHEHEHAVLK RAGKKWLVKV NGHRLEEGWE  60
KFAEEHDLQL GDMLVFRHEG NMEFKVVIFD SGHCKREYAE NLQEEEEEKE EEEEEEEEEE  120
EEEEAGGGGR GGEEKRKNEE EKRNKEKKLI LVNLFLNAQL DPIGFPTVTW
Nucleic Localization Signal ? help Back to Top
NLS
No. Start End Sequence
1135148RKNEEEKRNKEKKL
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieve-
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_016501009.15e-80PREDICTED: B3 domain-containing protein REM9-like
TrEMBLA0A1S4CJ211e-78A0A1S4CJ21_TOBAC; B3 domain-containing protein REM9-like
STRINGXP_009614318.11e-116(Nicotiana tomentosiformis)
Orthologous Group ? help Back to Top
LineageOrthologous Group IDTaxa NumberGene Number
AsteridsOGEA32215171
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT4G31680.11e-18B3 family protein
