Transcription Factor Information

Basic Information | Signature Domain | Sequence |

Basic Information? help Back to Top

TF ID

XP_009620386.1

Organism

Nicotiana tomentosiformis

Taxonomic ID

4098

Taxonomic Lineage

cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; asterids; lamiids; Solanales; Solanaceae; Nicotianoideae; Nicotianeae; Nicotiana

Family

SBP

Protein Properties

Length: 172aa MW: 19417.4 Da PI: 9.5581

Description

SBP family protein

Gene Model

Gene Model ID	Type	Source	Coding Sequence
XP_009620386.1	genome	NCBI	View CDS

Signature Domain? help Back to Top

No.	Domain	Score	E-value	Start	End	HMM Start	HMM End
1	SBP	131.4	3.1e-41	50	127	1	78
--SSTT-----TT--HHHHHTT--HHHHT-S-EEETTEEEEE-TTTSSEEETTT--SS--S-STTTT-------S--- CS SBP 1 lCqvegCeadlseakeyhrrhkvCevhskapvvlvsgleqrfCqqCsrfhelsefDeekrsCrrrLakhnerrrkkqa 78 +Cq+++C++dls+ak+yh+rhkvCe h+ka++v+v+gl+qrfCqqCsrfhe+ efDe+krsCrrrLa+hnerrrk+++ XP_009620386.1 50 CCQADKCTVDLSDAKQYHKRHKVCEYHAKAQAVVVAGLRQRFCQQCSRFHEVGEFDESKRSCRRRLAGHNERRRKTTT 127 6**************************************************************************875 PP

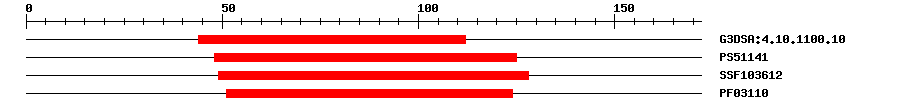

Protein Features ? help Back to Top

Database	Entry ID	E-value	Start	End	InterPro ID	Description
Gene3D	G3DSA:4.10.1100.10	1.4E-32	44	112	IPR004333	Transcription factor, SBP-box
PROSITE profile	PS51141	31.701	48	125	IPR004333	Transcription factor, SBP-box
SuperFamily	SSF103612	9.81E-38	49	128	IPR004333	Transcription factor, SBP-box
Pfam	PF03110	8.7E-32	51	124	IPR004333	Transcription factor, SBP-box

Gene Ontology ? help Back to Top
GO Term	GO Category	GO Description
GO:0010321	Biological Process	regulation of vegetative phase change
GO:0005634	Cellular Component	nucleus
GO:0003677	Molecular Function	DNA binding

Sequence ? help Back to Top
Protein Sequence Length: 172 aa Download sequence Send to blast
MEAADNNDLF IFATDNDDKK KRTPSYNNRS SSSSNNNNEK IKGSSTSMRC CQADKCTVDL 60 SDAKQYHKRH KVCEYHAKAQ AVVVAGLRQR FCQQCSRFHE VGEFDESKRS CRRRLAGHNE 120 RRRKTTTTTS SSSDQSNAEV SSSRKAIIGT DTHQIINFQE NAAAGYKHFQ IG

3D Structure ? help Back to Top

PDB ID	Evalue	Query Start	Query End	Hit Start	Hit End	Description
1ul4_A	3e-38	45	124	5	84	squamosa promoter binding protein-like 4
Search in ModeBase

Functional Description ? help Back to Top
Source	Description
UniProt	Trans-acting factor that binds specifically to the consensus nucleotide sequence 5'-TNCGTACAA-3' of AP1 promoter. Promotes both vegetative phase change and flowering. {ECO:0000269\|PubMed:10524240, ECO:0000269\|PubMed:16914499}.

Binding Motif ? help Back to Top
Motif ID	Method	Source	Motif file
MP00359	DAP	Transfer from AT3G15270	Download

Regulation -- Description ? help Back to Top
Source	Description
UniProt	INDUCTION: Negatively regulated by microRNAs miR156. {ECO:0000269\|PubMed:16914499}.

Regulation -- PlantRegMap ? help Back to Top
Source	Upstream Regulator	Target Gene
PlantRegMap	Retrieve	Retrieve

Annotation -- Nucleotide ? help Back to Top
Source	Hit ID	E-value	Description
GenBank	KP260635	2e-76	KP260635.1 Nicotiana tabacum SBP-box 4 (SPL4) mRNA, complete cds.

Annotation -- Protein ? help Back to Top
Source	Hit ID	E-value	Description
Refseq	XP_009620386.1	1e-125	PREDICTED: squamosa promoter-binding-like protein 3
Swissprot	Q9S758	2e-41	SPL5_ARATH; Squamosa promoter-binding-like protein 5
TrEMBL	A0A1S3ZR67	1e-103	A0A1S3ZR67_TOBAC; squamosa promoter-binding-like protein 3
STRING	XP_009620386.1	1e-125	(Nicotiana tomentosiformis)

Orthologous Group ? help Back to Top
Lineage	Orthologous Group ID	Taxa Number	Gene Number
Asterids	OGEA749	24	105

Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID	E-value	Description
AT3G15270.1	5e-43	squamosa promoter binding protein-like 5

Publications ? help Back to Top
Jorgensen SA,Preston JC Differential SPL gene expression patterns reveal candidate genes underlying flowering time and architectural differences in Mimulus and Arabidopsis. Mol. Phylogenet. Evol., 2014. 73: p. 129-39 [PMID:24508602] Xu M, et al. Developmental Functions of miR156-Regulated SQUAMOSA PROMOTER BINDING PROTEIN-LIKE (SPL) Genes in Arabidopsis thaliana. PLoS Genet., 2016. 12(8): p. e1006263 [PMID:27541584] Ioannidi E, et al. Trichome patterning control involves TTG1 interaction with SPL transcription factors. Plant Mol. Biol., 2016. 92(6): p. 675-687 [PMID:27631431] Jung JH,Lee HJ,Ryu JY,Park CM SPL3/4/5 Integrate Developmental Aging and Photoperiodic Signals into the FT-FD Module in Arabidopsis Flowering. Mol Plant, 2016. 9(12): p. 1647-1659 [PMID:27815142]
