Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID XP_010107988.1
Organism
Morus notabilis
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; rosids; fabids; Rosales; Moraceae; Morus
Family MYB
Protein Properties Length: 229aa    MW: 26443.1 Da    PI: 10.1231
Description MYB family protein
Gene Model
Gene Model ID Type Source Coding Sequence
XP_010107988.1genomeBGIView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1Myb_DNA-binding60.92.6e-194491148
                     TSSS-HHHHHHHHHHHHHTTTT-HHHHHHHHTTTS-HHHHHHHHHHHT CS
  Myb_DNA-binding  1 rgrWTteEdellvdavkqlGggtWktIartmgkgRtlkqcksrwqkyl 48
                     +g+WT+eEd +l+++++ +G + WktIa   g++R++k+c++rw++yl
   XP_010107988.1 44 KGAWTPEEDRKLAEVIAVHGAKKWKTIATIAGLNRCGKSCRLRWLNYL 91
                     79********************************************97 PP
2Myb_DNA-binding50.54.9e-1697142148
                      TSSS-HHHHHHHHHHHHHTTTT-HHHHHHHHTTTS-HHHHHHHHHHHT CS
  Myb_DNA-binding   1 rgrWTteEdellvdavkqlGggtWktIartmgkgRtlkqcksrwqkyl 48
                      rg+ + +E++l+++++k+lG++ W++Ia +++ gRt++++k++w+++l
   XP_010107988.1  97 RGNISDQEEDLILRLHKLLGNR-WSLIAGRLP-GRTDNEIKNYWNSHL 142
                      78999*****************.*********.************986 PP

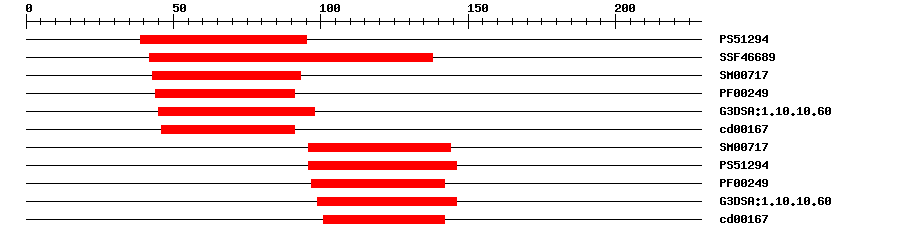

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
PROSITE profilePS5129427.2233995IPR017930Myb domain
SuperFamilySSF466891.99E-2942138IPR009057Homeodomain-like
SMARTSM007172.0E-154393IPR001005SANT/Myb domain
PfamPF002496.4E-184491IPR001005SANT/Myb domain
Gene3DG3DSA:1.10.10.601.5E-244598IPR009057Homeodomain-like
CDDcd001671.36E-104691No hitNo description
SMARTSM007171.9E-1596144IPR001005SANT/Myb domain
PROSITE profilePS5129420.91896146IPR017930Myb domain
PfamPF002492.1E-1497142IPR001005SANT/Myb domain
Gene3DG3DSA:1.10.10.609.2E-2599146IPR009057Homeodomain-like
CDDcd001677.73E-10101142No hitNo description
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0003677Molecular FunctionDNA binding
Sequence ? help Back to Top
Protein Sequence    Length: 229 aa     Download sequence    Send to blast
MAKVEENSAS DHRMAKMLKQ TDLKPLIMEG KKVITMSTRK EVNKGAWTPE EDRKLAEVIA  60
VHGAKKWKTI ATIAGLNRCG KSCRLRWLNY LRPNIKRGNI SDQEEDLILR LHKLLGNRWS  120
LIAGRLPGRT DNEIKNYWNS HLSKKIHSQK EKQSEACSTT RSQGSRNQLR RFENLEVTKL  180
EEINPSKGIS DQESNVAAND FDVNNFFDFS DEGPMNLEWM SKFLERERS
3D Structure ? help Back to Top
Structure
PDB ID Evalue Query Start Query End Hit Start Hit End Description
1h8a_C2e-284114624128MYB TRANSFORMING PROTEIN
Search in ModeBase
Functional Description ? help Back to Top
Source Description
UniProtTranscription activator, when associated with BHLH2/EGL3/MYC146, BHLH12/MYC1, or BHLH42/TT8. Involved in the control of flavonoid late metabolism in developing siliques. Plays a key role in determining the tissue-specific activation of leucoanthocyanidin reductase (BANYULS). {ECO:0000269|PubMed:15361138}.
Cis-element ? help Back to Top
SourceLink
PlantRegMapXP_010107988.1
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieve-
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_010107988.11e-170transcription factor WER
SwissprotQ9FJA21e-52TT2_ARATH; Transcription factor TT2
TrEMBLW9RYF81e-169W9RYF8_9ROSA; Transcription factor TT2
STRINGXP_010107988.11e-169(Morus notabilis)
Orthologous Group ? help Back to Top
LineageOrthologous Group IDTaxa NumberGene Number
FabidsOGEF21483288
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT5G35550.11e-54MYB family protein
Publications ? help Back to Top
  1. Coego A, et al.
    The TRANSPLANTA collection of Arabidopsis lines: a resource for functional analysis of transcription factors based on their conditional overexpression.
    Plant J., 2014. 77(6): p. 944-53
    [PMID:24456507]
  2. Liu C,Jun JH,Dixon RA
    MYB5 and MYB14 Play Pivotal Roles in Seed Coat Polymer Biosynthesis in Medicago truncatula.
    Plant Physiol., 2014. 165(4): p. 1424-1439
    [PMID:24948832]
  3. Zhu Z, et al.
    Characterization of the cis elements in the proximal promoter regions of the anthocyanin pathway genes reveals a common regulatory logic that governs pathway regulation.
    J. Exp. Bot., 2015. 66(13): p. 3775-89
    [PMID:25911741]
  4. Liu Y,Shi Z,Maximova SN,Payne MJ,Guiltinan MJ
    Tc-MYBPA an Arabidopsis TT2-like transcription factor and functions in the regulation of proanthocyanidin synthesis in Theobroma cacao.
    BMC Plant Biol., 2015. 15: p. 160
    [PMID:26109181]
  5. Bulgakov VP,Veremeichik GN,Grigorchuk VP,Rybin VG,Shkryl YN
    The rolB gene activates secondary metabolism in Arabidopsis calli via selective activation of genes encoding MYB and bHLH transcription factors.
    Plant Physiol. Biochem., 2016. 102: p. 70-9
    [PMID:26913794]
  6. Li Y, et al.
    Two IIIf Clade-bHLHs from Freesia hybrida Play Divergent Roles in Flavonoid Biosynthesis and Trichome Formation when Ectopically Expressed in Arabidopsis.
    Sci Rep, 2016. 6: p. 30514
    [PMID:27465838]
  7. Li C,Zhang B,Chen B,Ji L,Yu H
    Site-specific phosphorylation of TRANSPARENT TESTA GLABRA1 mediates carbon partitioning in Arabidopsis seeds.
    Nat Commun, 2018. 9(1): p. 571
    [PMID:29422671]
