Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID XP_010534340.1
Organism
Tarenaya hassleriana
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; rosids; malvids; Brassicales; Cleomaceae; Tarenaya
Family bHLH
Protein Properties Length: 344aa    MW: 38536.2 Da    PI: 6.5196
Description bHLH family protein
Gene Model
Gene Model ID Type Source Coding Sequence
XP_010534340.1genomeNCBIView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1HLH25.42.5e-08209256455
                     HHHHHHHHHHHHHHHHHHHHHCTSCCC...TTS-STCHHHHHHHHHHHHHHH CS
             HLH   4 ahnerErrRRdriNsafeeLrellPkaskapskKlsKaeiLekAveYIksLq 55
                     +h+ +Er RR++iN ++  L++l+P +    +k    a++L + +++++ Lq
  XP_010534340.1 209 SHSLAERARREKINARMKLLQDLVPGC----NKVSGTAMVLDEIINHVHFLQ 256
                     8*************************9....455678999999999999887 PP

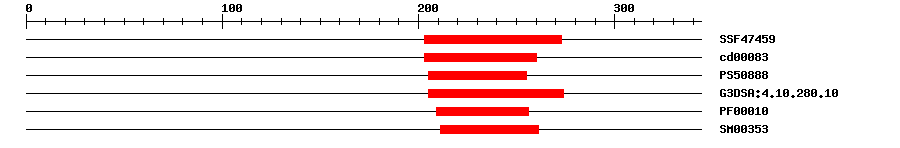

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
SuperFamilySSF474591.22E-15203273IPR011598Myc-type, basic helix-loop-helix (bHLH) domain
CDDcd000836.22E-9203260No hitNo description
PROSITE profilePS5088814.386205255IPR011598Myc-type, basic helix-loop-helix (bHLH) domain
Gene3DG3DSA:4.10.280.107.5E-16205274IPR011598Myc-type, basic helix-loop-helix (bHLH) domain
PfamPF000107.6E-6209256IPR011598Myc-type, basic helix-loop-helix (bHLH) domain
SMARTSM003535.5E-9211261IPR011598Myc-type, basic helix-loop-helix (bHLH) domain
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0046983Molecular Functionprotein dimerization activity
Sequence ? help Back to Top
Protein Sequence    Length: 344 aa     Download sequence    Send to blast
MERSAVVGAR SVDGPPELSE NGFGLVQFNE EIQRLMSLRQ CTGSSFTALL ELPPTQVVEL  60
LHSTDPGDYP AVVVVGTEDL KPTFTAPVAF PPGVAVTECF SRFPILAGQQ KGGDSPATSS  120
VPSNSNPNNE VVKNEPMEMD TSYRLENQNQ NQNQTQRPVK RKEEERKDKQ STKKSKRSAN  180
AKNSEEEDKD KDKLPYVHVR ARRGQATDSH SLAERARREK INARMKLLQD LVPGCNKVSG  240
TAMVLDEIIN HVHFLQRQVE FLSMRLAAVN PRIDTNLDNI LAAEGRLLND SNMCRRVTPT  300
TLPERRQHYQ PQCNLSALDQ SSWEREHDDH SFIASGIVFS NYEL
Cis-element ? help Back to Top
SourceLink
PlantRegMapXP_010534340.1
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieve-
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_010534340.10.0PREDICTED: transcription factor bHLH48-like isoform X1
SwissprotQ3EAI13e-72BH060_ARATH; Transcription factor bHLH60
TrEMBLA0A2P5F1I94e-94A0A2P5F1I9_TREOI; Basic helix-loop-helix transcription factor
STRINGXP_010534340.10.0(Tarenaya hassleriana)
Orthologous Group ? help Back to Top
LineageOrthologous Group IDTaxa NumberGene Number
MalvidsOGEM25762771
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT3G57800.24e-67bHLH family protein
Publications ? help Back to Top
  1. Skinner MK,Rawls A,Wilson-Rawls J,Roalson EH
    Basic helix-loop-helix transcription factor gene family phylogenetics and nomenclature.
    Differentiation, 2010. 80(1): p. 1-8
    [PMID:20219281]
  2. Li Y,Wang H,Li X,Liang G,Yu D
    Two DELLA-interacting proteins bHLH48 and bHLH60 regulate flowering under long-day conditions in Arabidopsis thaliana.
    J. Exp. Bot., 2017. 68(11): p. 2757-2767
    [PMID:28591805]
