Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID XP_013587606.1
Organism
Brassica oleracea
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; rosids; malvids; Brassicales; Brassicaceae; Brassiceae; Brassica
Family B3
Protein Properties Length: 346aa    MW: 39586 Da    PI: 9.662
Description B3 family protein
Gene Model
Gene Model ID Type Source Coding Sequence
XP_013587606.1genomeNCBIView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1B353.44.7e-17595194
                    EEEE-..-HHHHTT-EE--HHH.HTT---..--SEEEEEETTS-EEEEEE..EEETTE.EEE-TTHHHHHHHHT--TT-EEEEEE-SSSEE..EE CS
              B3  1 ffkvltpsdvlksgrlvlpkkfaeehggkkeesktltledesgrsWevkliyrkksgr.yvltkGWkeFvkangLkegDfvvFkldgrsefelvv 94
                    ff +l+ s++ +++rl++p kf+++++ +   s+ + l+ ++g +W+v l  rk ++  +++++GW+eFv+   ++ g  ++F+++g+s f+ ++
  XP_013587606.1  5 FFHKLIFSSTIQEKRLRVPDKFVSKFKDE--LSVAVALTVPDGHVWRVGL--RKADNNkIWFQDGWQEFVDRYSIRIGYLLIFRYEGNSAFSVYI 95
                    899999*****************999755..99*****************..66655559***************************99995544 PP
2B353.54.4e-17250342198
                     EEEE-..-HHHHTT-EE--HHH.HTT.---..--SEEEEEETTS-EEEEEE..EEETTEEEE-TTHHHHHHHHT--TT-EEEEEE-SSSEE..EE CS
              B3   1 ffkvltpsdvlksgrlvlpkkfaeeh.ggkkeesktltledesgrsWevkliyrkksgryvltkGWkeFvkangLkegDfvvFkldgrsefelvv 94
                     f  vl ps+  + ++++lp  fae++ +g++ + +++   ++  ++W v++    k gr  +++GW eF  +n+L egD++vF+l ++++f l+v
  XP_013587606.1 250 FRVVLRPSYLYRGCIMYLPSGFAEKYlSGIS-GFIKV---QLGEKQWPVRC--LYKAGRAKFSQGWYEFTLENNLGEGDVCVFELLRTRDFVLKV 338
                     677899********************84442.43344...4677*******..666666779***********************999***9999 PP

                     EEE- CS
              B3  95 kvfr 98
                     +++r
  XP_013587606.1 339 TAYR 342
                     8877 PP

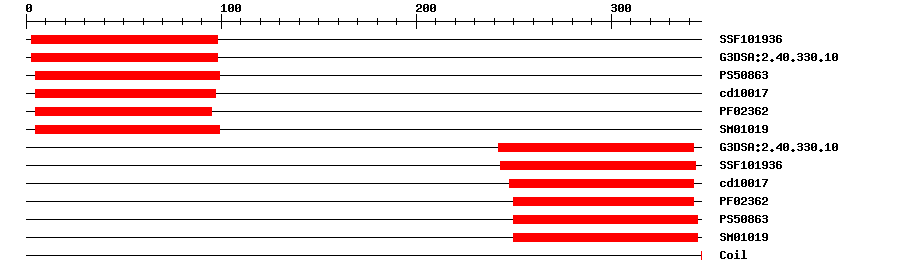

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
SuperFamilySSF1019364.9E-21398IPR015300DNA-binding pseudobarrel domain
Gene3DG3DSA:2.40.330.107.0E-22398IPR015300DNA-binding pseudobarrel domain
PROSITE profilePS5086314.649599IPR003340B3 DNA binding domain
CDDcd100171.46E-19597No hitNo description
PfamPF023623.6E-14595IPR003340B3 DNA binding domain
SMARTSM010191.0E-17599IPR003340B3 DNA binding domain
Gene3DG3DSA:2.40.330.101.1E-22242342IPR015300DNA-binding pseudobarrel domain
SuperFamilySSF1019366.47E-22243343IPR015300DNA-binding pseudobarrel domain
CDDcd100171.28E-20248342No hitNo description
PfamPF023621.7E-15250342IPR003340B3 DNA binding domain
PROSITE profilePS5086312.52250344IPR003340B3 DNA binding domain
SMARTSM010197.8E-21250344IPR003340B3 DNA binding domain
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0003677Molecular FunctionDNA binding
Sequence ? help Back to Top
Protein Sequence    Length: 346 aa     Download sequence    Send to blast
MPRPFFHKLI FSSTIQEKRL RVPDKFVSKF KDELSVAVAL TVPDGHVWRV GLRKADNNKI  60
WFQDGWQEFV DRYSIRIGYL LIFRYEGNSA FSVYIYNLSH SEINYHSSAL MDTAHTHLKR  120
ARLFEDLEDE DAAEVVYPSS SVYPSSQQHP EVTVAAIKGY ASPAIQSFFA GPPVKAEEAT  180
PTPKVTKKRG RKKKNAVPEE VNSSAPRDDD PESRSKFYES ASARKRTVTA EERERAINAA  240
KTFEPTNPFF RVVLRPSYLY RGCIMYLPSG FAEKYLSGIS GFIKVQLGEK QWPVRCLYKA  300
GRAKFSQGWY EFTLENNLGE GDVCVFELLR TRDFVLKVTA YRVNAI
3D Structure ? help Back to Top
Structure
PDB ID Evalue Query Start Query End Hit Start Hit End Description
4i1k_A9e-9221334412143B3 domain-containing transcription factor VRN1
4i1k_B9e-9221334412143B3 domain-containing transcription factor VRN1
Search in ModeBase
Expression -- Description ? help Back to Top
Source Description
UniprotTISSUE SPECIFICITY: Expressed in roots and at lower levels in aerial parts. {ECO:0000269|PubMed:12114624}.
Functional Description ? help Back to Top
Source Description
UniProtInvolved in the regulation of vernalization. Acts as transcriptional repressor of FLC, a major target of the vernalization pathway. Binds DNA in vitro in a non-sequence-specific manner. {ECO:0000269|PubMed:12114624}.
Cis-element ? help Back to Top
SourceLink
PlantRegMapXP_013587606.1
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieve-
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_013587606.10.0PREDICTED: B3 domain-containing transcription factor VRN1-like
SwissprotQ8L3W10.0VRN1_ARATH; B3 domain-containing transcription factor VRN1
TrEMBLA0A0D3CIN20.0A0A0D3CIN2_BRAOL; Uncharacterized protein
STRINGBo5g116790.10.0(Brassica oleracea)
Orthologous Group ? help Back to Top
LineageOrthologous Group IDTaxa NumberGene Number
MalvidsOGEM112428103
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT3G18990.10.0B3 family protein
Publications ? help Back to Top
  1. Mantegazza O, et al.
    Analysis of the arabidopsis REM gene family predicts functions during flower development.
    Ann. Bot., 2014. 114(7): p. 1507-15
    [PMID:25002525]
  2. Kumar A,Singh A,Panigrahy M,Sahoo PK,Panigrahi KCS
    Carbon nanoparticles influence photomorphogenesis and flowering time in Arabidopsis thaliana.
    Plant Cell Rep., 2018. 37(6): p. 901-912
    [PMID:29541883]
