Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID XP_013596023.1
Organism
Brassica oleracea
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; rosids; malvids; Brassicales; Brassicaceae; Brassiceae; Brassica
Family SBP
Protein Properties Length: 176aa    MW: 20507 Da    PI: 9.8241
Description SBP family protein
Gene Model
Gene Model ID Type Source Coding Sequence
XP_013596023.1genomeNCBIView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1SBP131.13.8e-4161136277
                     -SSTT-----TT--HHHHHTT--HHHHT-S-EEETTEEEEE-TTTSSEEETTT--SS--S-STTTT-------S-- CS
             SBP   2 CqvegCeadlseakeyhrrhkvCevhskapvvlvsgleqrfCqqCsrfhelsefDeekrsCrrrLakhnerrrkkq 77
                     Cqv++C+a+l+eak+y+rrhkvCevh+ka++++vsg +qrfCqqCsrfhel efDe+krsCr rLa+hnerrrk +
  XP_013596023.1  61 CQVHRCTANLTEAKQYYRRHKVCEVHAKASAATVSGAKQRFCQQCSRFHELPEFDEAKRSCRMRLAGHNERRRKVS 136
                     *************************************************************************976 PP

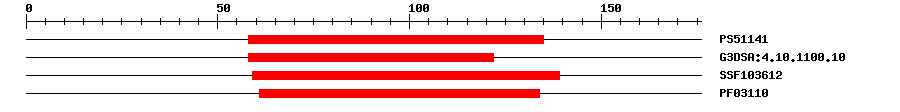

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
PROSITE profilePS5114130.64158135IPR004333Transcription factor, SBP-box
Gene3DG3DSA:4.10.1100.102.1E-3258122IPR004333Transcription factor, SBP-box
SuperFamilySSF1036125.76E-3759139IPR004333Transcription factor, SBP-box
PfamPF031104.6E-3161134IPR004333Transcription factor, SBP-box
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0005634Cellular Componentnucleus
GO:0003677Molecular FunctionDNA binding
Sequence ? help Back to Top
Protein Sequence    Length: 176 aa     Download sequence    Send to blast
MEKSQRWSYV KDKAIISNLA EQEWENSMDG EEEDAGDEDK RKRVTERARD TNTDLVPPRL  60
CQVHRCTANL TEAKQYYRRH KVCEVHAKAS AATVSGAKQR FCQQCSRFHE LPEFDEAKRS  120
CRMRLAGHNE RRRKVSGDSF GERSGRRGFR GQLIQTQERN NVDMKLPMAN TSFKRP
3D Structure ? help Back to Top
Structure
PDB ID Evalue Query Start Query End Hit Start Hit End Description
1ul4_A4e-3859134984squamosa promoter binding protein-like 4
Search in ModeBase
Expression -- Description ? help Back to Top
Source Description
UniprotDEVELOPMENTAL STAGE: Increases during floral transition and stay high thereafter. {ECO:0000269|PubMed:10524240, ECO:0000269|PubMed:14573523}.
UniprotTISSUE SPECIFICITY: Expressed in the inflorescence apical meristem and young flowers. {ECO:0000269|PubMed:10524240}.
Functional Description ? help Back to Top
Source Description
UniProtTrans-acting factor that binds specifically to the consensus nucleotide sequence 5'-TNCGTACAA-3' of AP1 promoter. Promotes both vegetative phase change and flowering. {ECO:0000269|PubMed:10524240, ECO:0000269|PubMed:16914499}.
Cis-element ? help Back to Top
SourceLink
PlantRegMapXP_013596023.1
Regulation -- Description ? help Back to Top
Source Description
UniProtINDUCTION: Negatively regulated by microRNAs miR156. {ECO:0000269|PubMed:16914499}.
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieve-
Annotation -- Nucleotide ? help Back to Top
Source Hit ID E-value Description
GenBankAJ0116101e-158AJ011610.1 Arabidopsis thaliana (ecotype Landsberg erecta) mRNA for squamosa promoter binding protein-like 5.
GenBankAJ2429601e-158AJ242960.1 Arabidopsis thaliana mRNA for Squamosa promoter binding protein-like 5, (SPL5 gene).
GenBankAK1186111e-158AK118611.1 Arabidopsis thaliana At3g15270 mRNA for squamosa promoter binding protein-like 5, putative, complete cds, clone: RAFL19-86-N19.
GenBankBT0037141e-158BT003714.1 Arabidopsis thaliana At3g15270 mRNA, complete cds.
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_013596023.11e-130PREDICTED: squamosa promoter-binding-like protein 5
SwissprotQ9S7584e-92SPL5_ARATH; Squamosa promoter-binding-like protein 5
TrEMBLA0A0D3ADH61e-129A0A0D3ADH6_BRAOL; Uncharacterized protein
STRINGBo1g129690.11e-130(Brassica oleracea)
Orthologous Group ? help Back to Top
LineageOrthologous Group IDTaxa NumberGene Number
MalvidsOGEM86828118
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT3G15270.18e-82squamosa promoter binding protein-like 5
Publications ? help Back to Top
  1. Jorgensen SA,Preston JC
    Differential SPL gene expression patterns reveal candidate genes underlying flowering time and architectural differences in Mimulus and Arabidopsis.
    Mol. Phylogenet. Evol., 2014. 73: p. 129-39
    [PMID:24508602]
  2. Xu M, et al.
    Developmental Functions of miR156-Regulated SQUAMOSA PROMOTER BINDING PROTEIN-LIKE (SPL) Genes in Arabidopsis thaliana.
    PLoS Genet., 2016. 12(8): p. e1006263
    [PMID:27541584]
  3. Ioannidi E, et al.
    Trichome patterning control involves TTG1 interaction with SPL transcription factors.
    Plant Mol. Biol., 2016. 92(6): p. 675-687
    [PMID:27631431]
  4. Jung JH,Lee HJ,Ryu JY,Park CM
    SPL3/4/5 Integrate Developmental Aging and Photoperiodic Signals into the FT-FD Module in Arabidopsis Flowering.
    Mol Plant, 2016. 9(12): p. 1647-1659
    [PMID:27815142]
