Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID XP_013612534.1
Organism
Brassica oleracea
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; rosids; malvids; Brassicales; Brassicaceae; Brassiceae; Brassica
Family B3
Protein Properties Length: 284aa    MW: 31878.5 Da    PI: 4.2271
Description B3 family protein
Gene Model
Gene Model ID Type Source Coding Sequence
XP_013612534.1genomeNCBIView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1B346.94.9e-1514104194
                     EEEE-..-HHHHTT-EE--HHH.HTT..---..--SEEEEEETTS-EEEEEE...EEETTEEEE-TTHHHHHHHHT--TT-EEEEEE-SSSEE.. CS
              B3   1 ffkvltpsdvlksgrlvlpkkfaeeh..ggkkeesktltledesgrsWevkliy.rkksgryvltkGWkeFvkangLkegDfvvFkldgrsefel 92
                     ffkv +p+d++    l +p +f  ++  + +   +k +t+++ +g +W++kl+  ++ ++++ + +GWk+ vk+ +Lk g+f+ F++dg++ f++
  XP_013612534.1  14 FFKVYLPNDSGD--DLEIPVSFN-SClpS-S--VPKSVTVTNINGHVWKLKLKKlSGDPEKFSMVDGWKRIVKDEDLKGGEFLAFEFDGSRLFNF 102
                     889997766665..59******8.66543.3..45569999***********666888888*************************999777755 PP

                     EE CS
              B3  93 vv 94
                     +v
  XP_013612534.1 103 CV 104
                     54 PP

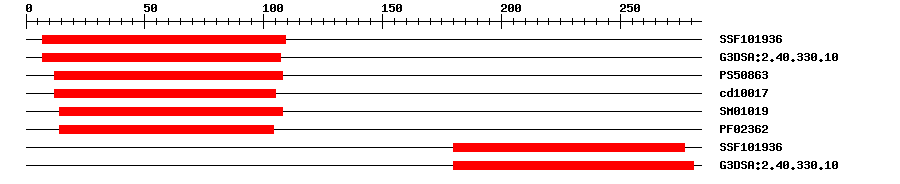

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
SuperFamilySSF1019361.79E-187109IPR015300DNA-binding pseudobarrel domain
Gene3DG3DSA:2.40.330.105.9E-177107IPR015300DNA-binding pseudobarrel domain
PROSITE profilePS5086312.11112108IPR003340B3 DNA binding domain
CDDcd100177.40E-1512105No hitNo description
SMARTSM010192.5E-1314108IPR003340B3 DNA binding domain
PfamPF023628.7E-1314104IPR003340B3 DNA binding domain
SuperFamilySSF1019368.04E-11180277IPR015300DNA-binding pseudobarrel domain
Gene3DG3DSA:2.40.330.103.0E-7180281IPR015300DNA-binding pseudobarrel domain
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0003677Molecular FunctionDNA binding
Sequence ? help Back to Top
Protein Sequence    Length: 284 aa     Download sequence    Send to blast
MKKGDSSDGR LPKFFKVYLP NDSGDDLEIP VSFNSCLPSS VPKSVTVTNI NGHVWKLKLK  60
KLSGDPEKFS MVDGWKRIVK DEDLKGGEFL AFEFDGSRLF NFCVYGQATC KKLGKSAEVE  120
EDESDDDDDD DVIVIDDDDD DDDDDDEVDD EDVDVDVEAD DVDDGMEADG DDDHRQLLDD  180
PDSPSFTVIL NPKKKSQLLI PSHIMKDYNL HFTERITIVD PLVPKFGTLE RKIKLQDNGC  240
LFVKGFGSVF RRNNVKTTDT IICEVKKNGN DVAHILKVHI VRGL
3D Structure ? help Back to Top
Structure
PDB ID Evalue Query Start Query End Hit Start Hit End Description
1yel_A5e-1441101104At1g16640
Search in ModeBase
Cis-element ? help Back to Top
SourceLink
PlantRegMapXP_013612534.1
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieve-
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_013612534.10.0PREDICTED: B3 domain-containing protein At5g60130-like isoform X2
RefseqXP_013713842.10.0B3 domain-containing protein At5g60130-like isoform X2
SwissprotQ9LVG12e-99Y5013_ARATH; B3 domain-containing protein At5g60130
TrEMBLA0A0D3ECZ60.0A0A0D3ECZ6_BRAOL; Uncharacterized protein
STRINGBo9g141110.10.0(Brassica oleracea)
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT5G60142.15e-52B3 family protein
Publications ? help Back to Top
  1. Mantegazza O, et al.
    Analysis of the arabidopsis REM gene family predicts functions during flower development.
    Ann. Bot., 2014. 114(7): p. 1507-15
    [PMID:25002525]
