Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID XP_016434047.1
Common NameB2F, Box, II
Organism
Nicotiana tabacum
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; asterids; lamiids; Solanales; Solanaceae; Nicotianoideae; Nicotianeae; Nicotiana
Family Trihelix
Protein Properties Length: 381aa    MW: 43496.6 Da    PI: 6.3298
Description Trihelix family protein
Gene Model
Gene Model ID Type Source Coding Sequence
XP_016434047.1genomeNCBIView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1trihelix78.31.2e-2476157286
        trihelix   2 WtkqevlaLiearremeerlrrgklkkplWeevskkmrergferspkqCkekwenlnkrykkikegekkrtsessstcpyfdqle 86
                     W ++e++aLi +rre+++ ++++k++k+lW+++s kmre+gf rsp++C++kw+nl k++kk k++++    + s +++y +++e
  XP_016434047.1  76 WVQEETRALISLRRELDSLFNTSKSNKHLWDQISLKMREKGFDRSPTMCTDKWRNLLKEFKKAKHNQEP---NGSAKMSYHKEIE 157
                     ****************************************************************99886...5667888988887 PP

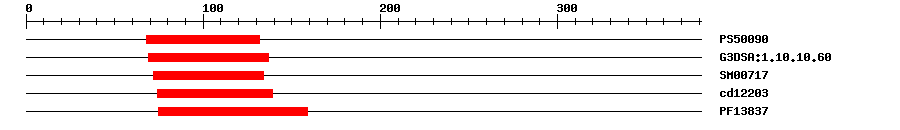

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
PROSITE profilePS500908.71168132IPR017877Myb-like domain
Gene3DG3DSA:1.10.10.601.6E-469137IPR009057Homeodomain-like
SMARTSM007176.8E-672134IPR001005SANT/Myb domain
CDDcd122031.49E-2874139No hitNo description
PfamPF138372.6E-1975159No hitNo description
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0006355Biological Processregulation of transcription, DNA-templated
GO:0005634Cellular Componentnucleus
GO:0003700Molecular Functiontranscription factor activity, sequence-specific DNA binding
GO:0042802Molecular Functionidentical protein binding
GO:0043565Molecular Functionsequence-specific DNA binding
Sequence ? help Back to Top
Protein Sequence    Length: 381 aa     Download sequence    Send to blast
MSDKPPTSIN LYEEQESMDQ HSNHMIIEVA TPNAHLQQPQ QILLPGISGG DTTSSGGEDN  60
NNNNLKLAPK KRAETWVQEE TRALISLRRE LDSLFNTSKS NKHLWDQISL KMREKGFDRS  120
PTMCTDKWRN LLKEFKKAKH NQEPNGSAKM SYHKEIEEIL KARNKNYKNP TLKVDTFMQF  180
SQKGLDDTSI TFGPVEENGR PTLNLERQLD HDGHPLAITA ADAVTASGSP WNWRETPGNG  240
EQSNSAEGRV ISVKWGDYTK RIGIDGTADA IKQAIKSAFR LRTERAFWLE DEQNIVRALD  300
RDMPLGSYTL HVDEGLTIKV CMYEEADHLP VHTEDKTFYT TNDFRDFLSH RGWTCLREYN  360
GYRHVDMLDE LCPGAVYRGI N
3D Structure ? help Back to Top
Structure
PDB ID Evalue Query Start Query End Hit Start Hit End Description
2jmw_A8e-4570155186DNA binding protein GT-1
Search in ModeBase
Functional Description ? help Back to Top
Source Description
UniProtProbable transcription factor that binds specifically to the core DNA sequence 5'-GGTTAA-3'. May act as a molecular switch in response to light signals. {ECO:0000269|PubMed:10437822, ECO:0000269|PubMed:15044016, ECO:0000269|PubMed:7866025}.
UniProtProbable transcription factor that binds specific DNA sequence. {ECO:0000250}.
Binding Motif ? help Back to Top
Motif ID Method Source Motif file
MP00640PBMTransfer from MDP0000164819Download
Motif logo
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieveRetrieve
Annotation -- Nucleotide ? help Back to Top
Source Hit ID E-value Description
GenBankS469420.0S46942.1 Box II Factor [tobacco, mRNA Partial, 1506 nt].
GenBankTOBB2F0.0M96432.1 Nicotiana tabacum DNA-binding protein (B2F) gene, 3' end.
GenBankTOBGT1A0.0M93436.2 Nicotiana tabacum DNA-binding protein (GT-1a) mRNA, complete cds.
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_016434047.10.0PREDICTED: trihelix transcription factor GT-4-like
SwissprotQ9FX531e-162TGT1_ARATH; Trihelix transcription factor GT-1
SwissprotQ9LU921e-162TGT4_ARATH; Trihelix transcription factor GT-4
TrEMBLA0A1S3X2C20.0A0A1S3X2C2_TOBAC; trihelix transcription factor GT-4-like
STRINGXP_009784713.10.0(Nicotiana sylvestris)
Orthologous Group ? help Back to Top
LineageOrthologous Group IDTaxa NumberGene Number
AsteridsOGEA51132136
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT1G13450.11e-162Trihelix family protein
Publications ? help Back to Top
  1. Le Gourrierec J,Li YF,Zhou DX
    Transcriptional activation by Arabidopsis GT-1 may be through interaction with TFIIA-TBP-TATA complex.
    Plant J., 1999. 18(6): p. 663-8
    [PMID:10417717]
  2. Perisic O,Lam E
    A tobacco DNA binding protein that interacts with a light-responsive box II element.
    Plant Cell, 1992. 4(7): p. 831-8
    [PMID:1392597]
