Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID XP_016442366.1
Organism
Nicotiana tabacum
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; asterids; lamiids; Solanales; Solanaceae; Nicotianoideae; Nicotianeae; Nicotiana
Family C2H2
Protein Properties Length: 520aa    MW: 56984.7 Da    PI: 9.2575
Description C2H2 family protein
Gene Model
Gene Model ID Type Source Coding Sequence
XP_016442366.1genomeNCBIView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1zf-C2H216.13.2e-056082123
                    EEETTTTEEESSHHHHHHHHHHT CS
         zf-C2H2  1 ykCpdCgksFsrksnLkrHirtH 23
                    + C++C+k F r  nL+ H r H
  XP_016442366.1 60 FICEICNKGFQRDQNLQLHRRGH 82
                    89*******************88 PP
2zf-C2H2130.00031137159123
                     EEETTTTEEESSHHHHHHHHHHT CS
         zf-C2H2   1 ykCpdCgksFsrksnLkrHirtH 23
                     +kC++C+k +  +s+ k H + +
  XP_016442366.1 137 WKCEKCSKKYAVQSDWKAHTKIC 159
                     58*****************9987 PP

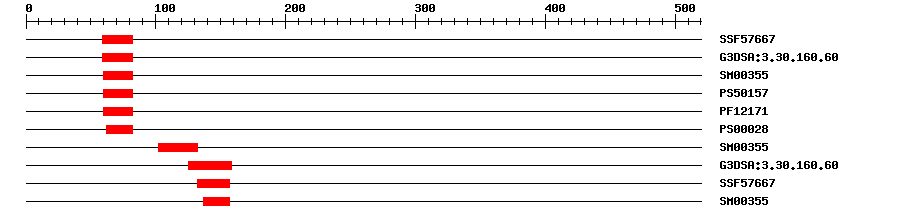

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
SuperFamilySSF576672.24E-75982No hitNo description
Gene3DG3DSA:3.30.160.601.4E-55982IPR013087Zinc finger C2H2-type/integrase DNA-binding domain
SMARTSM003550.0226082IPR015880Zinc finger, C2H2-like
PROSITE profilePS5015710.8456082IPR007087Zinc finger, C2H2
PfamPF121716.3E-56082IPR022755Zinc finger, double-stranded RNA binding
PROSITE patternPS0002806282IPR007087Zinc finger, C2H2
SMARTSM0035590102132IPR015880Zinc finger, C2H2-like
Gene3DG3DSA:3.30.160.606.2E-5125158IPR013087Zinc finger C2H2-type/integrase DNA-binding domain
SuperFamilySSF576672.24E-7132157No hitNo description
SMARTSM00355130137157IPR015880Zinc finger, C2H2-like
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0003676Molecular Functionnucleic acid binding
GO:0046872Molecular Functionmetal ion binding
Sequence ? help Back to Top
Protein Sequence    Length: 520 aa     Download sequence    Send to blast
MMSDDGLSSL PFIQDPNPSN NPNPNSNPSA KRKRNLPGKP DPDAEVIALS PKSLMATNRF  60
ICEICNKGFQ RDQNLQLHRR GHNLPWKLKQ RNKNEVIKKK VYICPEKTCI HHDPSRALGD  120
LTGIKKHYSR KHGEKKWKCE KCSKKYAVQS DWKAHTKICG TREYKCDCGT LFSRKDSFIT  180
HRAFCDALAE ESARFTSVPS TATLNFRNEL LSGGMISGNP QFGNSLFRPE FMGLGLDPAI  240
NHQLNNVDGQ KPRMPLWLEN NINPNSGNNA NDFLVASSSS TSNLPHQLVQ MAPPHNNQQW  300
FVNGGGGRDD SGFGSSSSLP SRVLREEEDN KRNLCETISS MYYNSHQQET TTPPSHMSAT  360
ALLQKAAQMG STRSNSALFG SGFGLMGSSF SKSNGQFAAD QNLNGLMMNS PPSAVSTLTT  420
TNNNQAGNRL LLGGDLMNSS SLEGNSSAKN SDPFLMLNNK GKQINLSGNE AIEGSLTRDF  480
LGVGGNENRP FLSKTELAKF GNTSSSAMGL SQYNGSHLDE
3D Structure ? help Back to Top
Structure
PDB ID Evalue Query Start Query End Hit Start Hit End Description
5b3h_C7e-37133198368Zinc finger protein JACKDAW
5b3h_F7e-37133198368Zinc finger protein JACKDAW
Search in ModeBase
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieve-
Annotation -- Nucleotide ? help Back to Top
Source Hit ID E-value Description
GenBankHG9755181e-168HG975518.1 Solanum lycopersicum chromosome ch06, complete genome.
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_016442366.10.0PREDICTED: protein indeterminate-domain 9-like isoform X1
TrEMBLA0A1S3XQY90.0A0A1S3XQY9_TOBAC; protein indeterminate-domain 9-like isoform X1
STRINGXP_009789501.10.0(Nicotiana sylvestris)
Orthologous Group ? help Back to Top
LineageOrthologous Group IDTaxa NumberGene Number
AsteridsOGEA10324350
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT3G45260.11e-104C2H2-like zinc finger protein
