Transcription Factor Information

Basic Information | Signature Domain | Sequence |

Basic Information? help Back to Top

TF ID

XP_016456462.1

Organism

Nicotiana tabacum

Taxonomic ID

4097

Taxonomic Lineage

cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; asterids; lamiids; Solanales; Solanaceae; Nicotianoideae; Nicotianeae; Nicotiana

Family

bHLH

Protein Properties

Length: 230aa MW: 25599.9 Da PI: 5.0264

Description

bHLH family protein

Gene Model

Gene Model ID	Type	Source	Coding Sequence
XP_016456462.1	genome	NCBI	View CDS

Signature Domain? help Back to Top

No.	Domain	Score	E-value	Start	End	HMM Start	HMM End
1	HLH	14.6	5.9e-05	37	85	1	53
CHHHHHHHHHHHHHHHHHHHHHHHCTSCCC...TTS-STCHHHHHHHHHHHHH CS HLH 1 rrrahnerErrRRdriNsafeeLrellPkaskapskKlsKaeiLekAveYIks 53 +r+ + erE+ R+++N+ f L l + + + Ka+iL ++ +++k+ XP_016456462.1 37 KRVHKAEREKLKREHLNELFLDLANALELS----EQTNGKASILNETARFVKD 85 79999********************998....68899999**9999887 PP

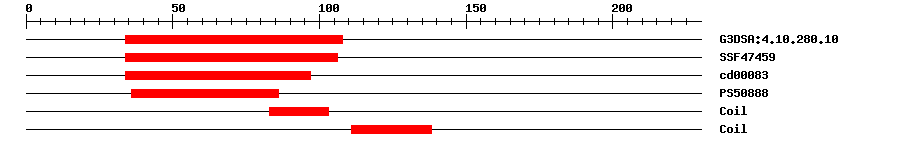

Protein Features ? help Back to Top

Database	Entry ID	E-value	Start	End	InterPro ID	Description
Gene3D	G3DSA:4.10.280.10	4.9E-7	34	108	IPR011598	Myc-type, basic helix-loop-helix (bHLH) domain
SuperFamily	SSF47459	4.71E-11	34	106	IPR011598	Myc-type, basic helix-loop-helix (bHLH) domain
CDD	cd00083	1.30E-4	34	97	No hit	No description
PROSITE profile	PS50888	10.779	36	86	IPR011598	Myc-type, basic helix-loop-helix (bHLH) domain

Gene Ontology ? help Back to Top
GO Term	GO Category	GO Description
GO:0046983	Molecular Function	protein dimerization activity

Sequence ? help Back to Top
Protein Sequence Length: 230 aa Download sequence Send to blast
MGAESPTSSA ENGGIAVETS SPNGSPPSKK IQKKVPKRVH KAEREKLKRE HLNELFLDLA 60 NALELSEQTN GKASILNETA RFVKDMISQI KQLKRENTAL LSESQYLSME KKELQDDNST 120 LEAQIDKLEG EVKERVAETN LDLNLSLTET QLPQLASQVT DNFLQLPGSE HPFQQMQMMN 180 SLYVVPLNST PQAYPEPDAA KPAAMPTYSV KKPQARYPTP ADVWPSQILE

Regulation -- PlantRegMap ? help Back to Top
Source	Upstream Regulator	Target Gene
PlantRegMap	Retrieve	-

Annotation -- Protein ? help Back to Top
Source	Hit ID	E-value	Description
Refseq	XP_016456462.1	1e-167	PREDICTED: transcription factor bHLH47-like
Refseq	XP_016456463.1	1e-167	PREDICTED: transcription factor bHLH47-like
TrEMBL	A0A1S3YWE9	1e-166	A0A1S3YWE9_TOBAC; transcription factor bHLH47-like
STRING	XP_009592394.1	1e-165	(Nicotiana tomentosiformis)

Orthologous Group ? help Back to Top
Lineage	Orthologous Group ID	Taxa Number	Gene Number
Asterids	OGEA4307	19	34

Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID	E-value	Description
AT3G47640.3	2e-44	bHLH family protein
