Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID XP_016514052.1
Organism
Nicotiana tabacum
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; asterids; lamiids; Solanales; Solanaceae; Nicotianoideae; Nicotianeae; Nicotiana
Family bHLH
Protein Properties Length: 555aa    MW: 60351.7 Da    PI: 8.1433
Description bHLH family protein
Gene Model
Gene Model ID Type Source Coding Sequence
XP_016514052.1genomeNCBIView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1HLH51.71.6e-16259308255
                     HHHHHHHHHHHHHHHHHHHHHHHCTSCCC...TTS-STCHHHHHHHHHHHHHHH CS
             HLH   2 rrahnerErrRRdriNsafeeLrellPkaskapskKlsKaeiLekAveYIksLq 55
                     r +h++ E+rRR++iN++f+ Lr ++P++    ++K +Ka+ L +++eYI+ Lq
  XP_016514052.1 259 RSKHSATEQRRRSKINDRFQMLRGIIPNS----DQKRDKASFLLEVIEYIHFLQ 308
                     889*************************9....9******************99 PP

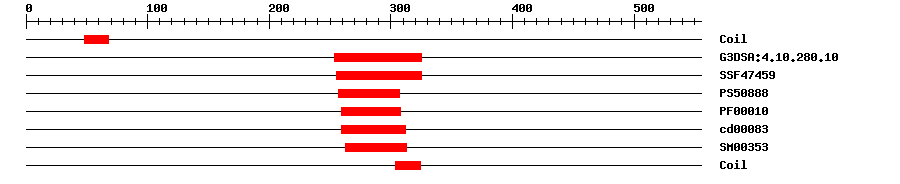

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
Gene3DG3DSA:4.10.280.101.1E-23254325IPR011598Myc-type, basic helix-loop-helix (bHLH) domain
SuperFamilySSF474591.07E-18255325IPR011598Myc-type, basic helix-loop-helix (bHLH) domain
PROSITE profilePS5088816.272257307IPR011598Myc-type, basic helix-loop-helix (bHLH) domain
PfamPF000103.8E-14259308IPR011598Myc-type, basic helix-loop-helix (bHLH) domain
CDDcd000834.01E-15259312No hitNo description
SMARTSM003538.4E-13263313IPR011598Myc-type, basic helix-loop-helix (bHLH) domain
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0006351Biological Processtranscription, DNA-templated
GO:0009742Biological Processbrassinosteroid mediated signaling pathway
GO:1902448Biological Processpositive regulation of shade avoidance
GO:0005634Cellular Componentnucleus
GO:0003677Molecular FunctionDNA binding
GO:0003700Molecular Functiontranscription factor activity, sequence-specific DNA binding
GO:0046983Molecular Functionprotein dimerization activity
Sequence ? help Back to Top
Protein Sequence    Length: 555 aa     Download sequence    Send to blast
MELPQPRPFG TEGRKTTHDF LSLYSPVQQD PTPPQGGFLK THDFLQPLEQ AEKALRKEEA  60
KVEVVAVEKP PAPVASPSVE HILPGGIGTY SISYLHQRIP KPEASLFAVA QATSTDRNDE  120
NSNCSSYTGG SGFTLWDESA VKGKTGKENS GGDRHALREA GLNTGGGQPT TSLEWQSQSS  180
SNHKHNTTAI SSLSSARQSS PLKTQSFVHM ITSAKNAQDD DDDDDEDFVI KKEPQSHPRG  240
NLSVKVDGEG NDKKPNTPRS KHSATEQRRR SKINDRFQML RGIIPNSDQK RDKASFLLEV  300
IEYIHFLQEK VHKYEESYQG WENEPLKLPL SKCHRTTQGA SNHPQGTINA SGAAPTYAVK  360
FDENIMGISS TNPFNAQKVE PNISTTSLKE SSQRPGLTNK ATTPSMSPNT FPFCGASTAA  420
LYSSKLTADT AKLESKSHPQ FSVSRSHMTD YAIPNANSKG QDLSIESGTI SISSAYSQGL  480
LNTLTLALQN SGVDLSQANI SVQIDLGKRA NGRLHSSAST VKGDDVSTSN QPIPKSISTS  540
TREESDRAFK RLKTS
Binding Motif ? help Back to Top
Motif ID Method Source Motif file
MP00498DAPTransfer from AT5G08130Download
Motif logo
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieveRetrieve
Annotation -- Nucleotide ? help Back to Top
Source Hit ID E-value Description
GenBankBT0137860.0BT013786.1 Lycopersicon esculentum clone 132679F, mRNA sequence.
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_009757585.10.0PREDICTED: transcription factor BIM1 isoform X2
RefseqXP_016514052.10.0PREDICTED: transcription factor BIM1-like isoform X2
TrEMBLA0A1S4DKZ20.0A0A1S4DKZ2_TOBAC; transcription factor BIM1-like isoform X2
TrEMBLA0A1U7V7640.0A0A1U7V764_NICSY; transcription factor BIM1 isoform X2
STRINGXP_009757584.10.0(Nicotiana sylvestris)
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT5G08130.41e-108bHLH family protein
