Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID XP_016649113.1
Organism
Prunus mume
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; rosids; fabids; Rosales; Rosaceae; Maloideae; Amygdaleae; Prunus
Family bHLH
Protein Properties Length: 319aa    MW: 35136.3 Da    PI: 7.8745
Description bHLH family protein
Gene Model
Gene Model ID Type Source Coding Sequence
XP_016649113.1genomeBGIView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1HLH120.00041992371255
                     HHHHHHHHHHHHHCTSCCC...TTS-STCHHHHHHHHHHHHHHH CS
             HLH  12 RRdriNsafeeLrellPkaskapskKlsKaeiLekAveYIksLq 55
                     R +++ +++  L +l+ +      +K + a++L +A+ YI+ Lq
  XP_016649113.1 199 RKEKLGDRITALHQLVSPF-----GKTDTASVLLEAIGYIRFLQ 237
                     6677889999999999998.....8******************9 PP

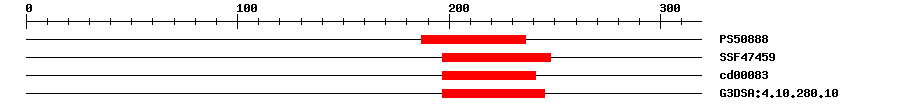

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
PROSITE profilePS5088811.331187236IPR011598Myc-type, basic helix-loop-helix (bHLH) domain
SuperFamilySSF474594.19E-10197248IPR011598Myc-type, basic helix-loop-helix (bHLH) domain
CDDcd000839.68E-6197241No hitNo description
Gene3DG3DSA:4.10.280.103.1E-7197245IPR011598Myc-type, basic helix-loop-helix (bHLH) domain
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0046983Molecular Functionprotein dimerization activity
Sequence ? help Back to Top
Protein Sequence    Length: 319 aa     Download sequence    Send to blast
MMAGNPNWWS SMHPPSLFPS QYVQLGSSNS LPLNSLPEHN LEPPQSWSQL LLGGLSSQED  60
GFGTLSHFQP KGRLENWEED QILIPQYPRA PVVDFIKQES NSQNSINLCN NPHGDEEFQL  120
APSSRPVWSP VQIMPVSSPR SCVTSLSNNN ILDFSYNKAD NKRNQHADHS SECNSTATGG  180
MCKKARVQPS PSQPPLKVRK EKLGDRITAL HQLVSPFGKT DTASVLLEAI GYIRFLQGQI  240
EALSSPYLGN ASKNMRNQQS LLNDNCLKRK GAPNQHPSSQ DKAKDLRSKG LCLVPVSFTQ  300
HVGSDNGADY WAPAYGSGF
Cis-element ? help Back to Top
SourceLink
PlantRegMapXP_016649113.1
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieve-
Annotation -- Nucleotide ? help Back to Top
Source Hit ID E-value Description
GenBankBT1495451e-57BT149545.1 Medicago truncatula clone JCVI-FLMt-16P10 unknown mRNA.
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_016649113.10.0PREDICTED: transcription factor bHLH68-like isoform X4
SwissprotQ8S3D12e-63BH068_ARATH; Transcription factor bHLH68
TrEMBLA0A251PXJ10.0A0A251PXJ1_PRUPE; Uncharacterized protein
STRINGXP_008228480.10.0(Prunus mume)
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT4G29100.11e-65bHLH family protein
Publications ? help Back to Top
  1. Skinner MK,Rawls A,Wilson-Rawls J,Roalson EH
    Basic helix-loop-helix transcription factor gene family phylogenetics and nomenclature.
    Differentiation, 2010. 80(1): p. 1-8
    [PMID:20219281]
  2. Le Hir R, et al.
    AtbHLH68 transcription factor contributes to the regulation of ABA homeostasis and drought stress tolerance in Arabidopsis thaliana.
    Physiol Plant, 2017. 160(3): p. 312-327
    [PMID:28369972]
  3. Ezer D, et al.
    The G-Box Transcriptional Regulatory Code in Arabidopsis.
    Plant Physiol., 2017. 175(2): p. 628-640
    [PMID:28864470]
