Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID evm.model.supercontig_136.31
Organism
Carica papaya
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; rosids; malvids; Brassicales; Caricaceae; Carica
Family NF-YB
Protein Properties Length: 218aa    MW: 22141.4 Da    PI: 6.7217
Description NF-YB family protein
Gene Model
Gene Model ID Type Source Coding Sequence
evm.model.supercontig_136.31genomeASGPBView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1NF-YB187.59.5e-5924119297
                         NF-YB   2 reqdrflPianvsrimkkvlPanakiskdaketvqecvsefisfvtseasdkcqrekrktingddllwalatlGfedyvep 82
                                   reqdrflPianvsrimkk+lPanakiskdaketvqecvsefisf+t+easdkcqrekrktingddllwa++tlGfedyv+p
  evm.model.supercontig_136.31  24 REQDRFLPIANVSRIMKKALPANAKISKDAKETVQECVSEFISFITGEASDKCQREKRKTINGDDLLWAMTTLGFEDYVDP 104
                                   89******************************************************************************* PP

                         NF-YB  83 lkvylkkyrelegek 97
                                   lk+yl+kyre+egek
  evm.model.supercontig_136.31 105 LKLYLQKYREMEGEK 119
                                   *************97 PP

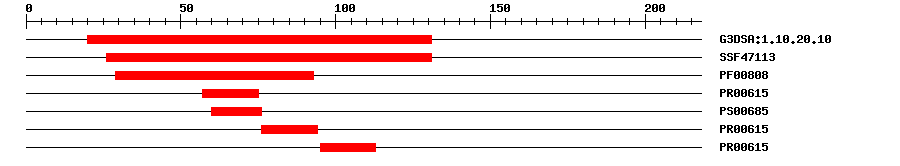

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
Gene3DG3DSA:1.10.20.105.1E-5520131IPR009072Histone-fold
SuperFamilySSF471131.86E-4126131IPR009072Histone-fold
PfamPF008086.9E-282993IPR003958Transcription factor CBF/NF-Y/archaeal histone domain
PRINTSPR006155.4E-215775No hitNo description
PROSITE patternPS0068506076IPR003956Transcription factor, NFYB/HAP3, conserved site
PRINTSPR006155.4E-217694No hitNo description
PRINTSPR006155.4E-2195113No hitNo description
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0006355Biological Processregulation of transcription, DNA-templated
GO:0005634Cellular Componentnucleus
GO:0043565Molecular Functionsequence-specific DNA binding
GO:0046982Molecular Functionprotein heterodimerization activity
Sequence ? help Back to Top
Protein Sequence    Length: 218 aa     Download sequence    Send to blast
MADSDNESGG GQNNSSAGGE LSAREQDRFL PIANVSRIMK KALPANAKIS KDAKETVQEC  60
VSEFISFITG EASDKCQREK RKTINGDDLL WAMTTLGFED YVDPLKLYLQ KYREMEGEKT  120
SLGRQPDKEG PSGGSGSGGP SGGGSGSGGG PGSGVGGGGG GYNGGGGMYG GMVMMGHHQG  180
HVYGSGGFHH HHHVEIGVTK SGAGVGSASA SGAVRSM*
3D Structure ? help Back to Top
Structure
PDB ID Evalue Query Start Query End Hit Start Hit End Description
5g49_A6e-5118114197NUCLEAR TRANSCRIPTION FACTOR Y SUBUNIT B-6
Search in ModeBase
Functional Description ? help Back to Top
Source Description
UniProtComponent of the NF-Y/HAP transcription factor complex. The NF-Y complex stimulates the transcription of various genes by recognizing and binding to a CCAAT motif in promoters.
Cis-element ? help Back to Top
SourceLink
PlantRegMapevm.model.supercontig_136.31
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieve-
Annotation -- Nucleotide ? help Back to Top
Source Hit ID E-value Description
GenBankAK2505392e-99AK250539.1 Hordeum vulgare subsp. vulgare cDNA clone: FLbaf86i15, mRNA sequence.
GenBankJF7646002e-99JF764600.1 Hordeum vulgare NF-YB1 mRNA, complete cds.
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_021890026.11e-155nuclear transcription factor Y subunit B-3-like
SwissprotO233109e-76NFYB3_ARATH; Nuclear transcription factor Y subunit B-3
TrEMBLA0A438ERG57e-90A0A438ERG5_VITVI; Nuclear transcription factor Y subunit B-3
TrEMBLD7UAG52e-90D7UAG5_VITVI; Uncharacterized protein
STRINGevm.model.supercontig_136.311e-155(Carica papaya)
Orthologous Group ? help Back to Top
LineageOrthologous Group IDTaxa NumberGene Number
MalvidsOGEM25528229
Representative plantOGRP16817170
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT4G14540.12e-70nuclear factor Y, subunit B3
Publications ? help Back to Top
  1. Han X, et al.
    Overexpression of the poplar NF-YB7 transcription factor confers drought tolerance and improves water-use efficiency in Arabidopsis.
    J. Exp. Bot., 2013. 64(14): p. 4589-601
    [PMID:24006421]
  2. Hwang YH, et al.
    Functional conservation of rice OsNF-YB/YC and Arabidopsis AtNF-YB/YC proteins in the regulation of flowering time.
    Plant Cell Rep., 2016. 35(4): p. 857-65
    [PMID:26754793]
  3. Hossain MA, et al.
    Identification of Novel Components of the Unfolded Protein Response in Arabidopsis.
    Front Plant Sci, 2016. 7: p. 650
    [PMID:27242851]
  4. Zhao H, et al.
    The Arabidopsis thaliana Nuclear Factor Y Transcription Factors.
    Front Plant Sci, 2016. 7: p. 2045
    [PMID:28119722]
