Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID evm.model.supercontig_21.133
Organism
Carica papaya
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; rosids; malvids; Brassicales; Caricaceae; Carica
Family M-type_MADS
Protein Properties Length: 81aa    MW: 9175.65 Da    PI: 10.8372
Description M-type_MADS family protein
Gene Model
Gene Model ID Type Source Coding Sequence
evm.model.supercontig_21.133genomeASGPBView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1SRF-TF92.91.5e-29958150
                                  S---SHHHHHHHHHHHHHHHHHHHHHHHHHHT-EEEEEEE-TTSEEEEEE CS
                        SRF-TF  1 krienksnrqvtfskRrngilKKAeELSvLCdaevaviifsstgklyeys 50
                                  krien++nrqvtfskRrng++KKA+ELSvLCd++va+i+fs++g++  +s
  evm.model.supercontig_21.133  9 KRIENTTNRQVTFSKRRNGLIKKAYELSVLCDVDVALIMFSPSGRVTHFS 58
                                  79********************************************9997 PP

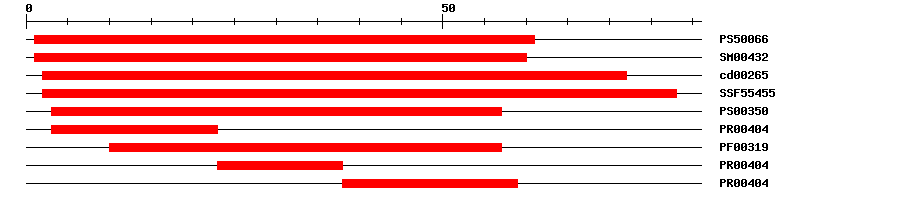

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
PROSITE profilePS5006630.221161IPR002100Transcription factor, MADS-box
SMARTSM004325.0E-39160IPR002100Transcription factor, MADS-box
CDDcd002651.53E-37272No hitNo description
SuperFamilySSF554555.62E-32278IPR002100Transcription factor, MADS-box
PROSITE patternPS003500357IPR002100Transcription factor, MADS-box
PRINTSPR004042.0E-27323IPR002100Transcription factor, MADS-box
PfamPF003194.1E-281057IPR002100Transcription factor, MADS-box
PRINTSPR004042.0E-272338IPR002100Transcription factor, MADS-box
PRINTSPR004042.0E-273859IPR002100Transcription factor, MADS-box
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0003677Molecular FunctionDNA binding
GO:0046983Molecular Functionprotein dimerization activity
Sequence ? help Back to Top
Protein Sequence    Length: 81 aa     Download sequence    Send to blast
MGRVKLQIKR IENTTNRQVT FSKRRNGLIK KAYELSVLCD VDVALIMFSP SGRVTHFSGS  60
KSIEEILARY VNVPEHERGR *

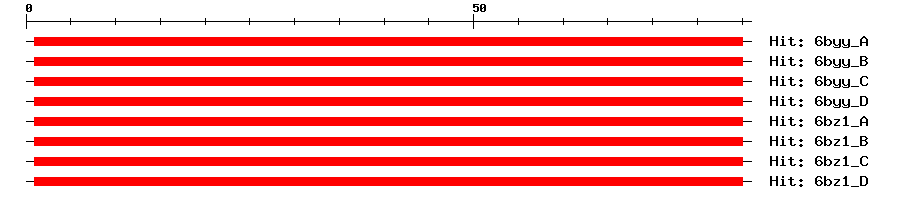

3D Structure ? help Back to Top
Structure
PDB ID Evalue Query Start Query End Hit Start Hit End Description
6byy_A5e-21180179MEF2 CHIMERA
6byy_B5e-21180179MEF2 CHIMERA
6byy_C5e-21180179MEF2 CHIMERA
6byy_D5e-21180179MEF2 CHIMERA
6bz1_A5e-21180179MEF2 CHIMERA
6bz1_B5e-21180179MEF2 CHIMERA
6bz1_C5e-21180179MEF2 CHIMERA
6bz1_D5e-21180179MEF2 CHIMERA
Search in ModeBase
Functional Description ? help Back to Top
Source Description
UniProtProbable transcription factor that forms heterodimers with the MADS-box proteins AGL30 and AGL65 and is involved in the regulation of pollen maturation at the late stages of pollen development and pollen tube growth. {ECO:0000269|PubMed:19211705}.
Cis-element ? help Back to Top
SourceLink
PlantRegMapevm.model.supercontig_21.133
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieve-
Annotation -- Nucleotide ? help Back to Top
Source Hit ID E-value Description
GenBankGU1429131e-42GU142913.1 Hevea brasiliensis MADS-box transcription factor 1 mRNA, complete cds.
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_021903579.14e-52agamous-like MADS-box protein AGL66
SwissprotQ9LM462e-36AG104_ARATH; Agamous-like MADS-box protein AGL104
TrEMBLA0A2I4FQ902e-47A0A2I4FQ90_JUGRE; agamous-like MADS-box protein AGL104 isoform X1
TrEMBLA0A2I4FQ972e-47A0A2I4FQ97_JUGRE; agamous-like MADS-box protein AGL104 isoform X2
STRINGevm.model.supercontig_21.1331e-52(Carica papaya)
Orthologous Group ? help Back to Top
LineageOrthologous Group IDTaxa NumberGene Number
MalvidsOGEM7828413
Representative plantOGRP1617761
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT1G22130.18e-39AGAMOUS-like 104
Publications ? help Back to Top
  1. Zhang S, et al.
    FERTILIZATION-INDEPENDENT SEED-Polycomb Repressive Complex 2 Plays a Dual Role in Regulating Type I MADS-Box Genes in Early Endosperm Development.
    Plant Physiol., 2018. 177(1): p. 285-299
    [PMID:29523711]
