Transcription Factor Information

Basic Information | Signature Domain | Sequence |

Basic Information? help Back to Top

TF ID

evm.model.supercontig_44.78

Organism

Carica papaya

Taxonomic ID

3649

Taxonomic Lineage

cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; rosids; malvids; Brassicales; Caricaceae; Carica

Family

bHLH

Protein Properties

Length: 222aa MW: 25001.2 Da PI: 5.2519

Description

bHLH family protein

Gene Model

Gene Model ID	Type	Source	Coding Sequence
evm.model.supercontig_44.78	genome	ASGPB	View CDS

Signature Domain? help Back to Top

No.	Domain	Score	E-value	Start	End	HMM Start	HMM End
1	HLH	30.5	6.4e-10	70	117	4	54
HHHHHHHHHHHHHHHHHHHHHCTSCCC...TTS-STCHHHHHHHHHHHHHH CS HLH 4 ahnerErrRRdriNsafeeLrellPkaskapskKlsKaeiLekAveYIksL 54 ++ rEr RR+r+N++f L ++l + + K +K +iL A++ +++L evm.model.supercontig_44.78 70 TKACRERLRRERLNDRFLDLSSVLEPG---RPAKTDKPAILDDAIRVLNQL 117 6789********************8...89**************999 PP

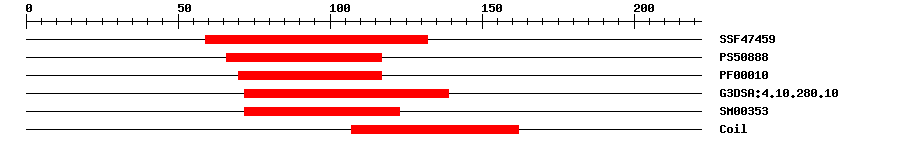

Protein Features ? help Back to Top

Database	Entry ID	E-value	Start	End	InterPro ID	Description
SuperFamily	SSF47459	4.19E-13	59	132	IPR011598	Myc-type, basic helix-loop-helix (bHLH) domain
PROSITE profile	PS50888	13.567	66	117	IPR011598	Myc-type, basic helix-loop-helix (bHLH) domain
Pfam	PF00010	4.2E-7	70	117	IPR011598	Myc-type, basic helix-loop-helix (bHLH) domain
Gene3D	G3DSA:4.10.280.10	6.6E-12	72	139	IPR011598	Myc-type, basic helix-loop-helix (bHLH) domain
SMART	SM00353	2.0E-9	72	123	IPR011598	Myc-type, basic helix-loop-helix (bHLH) domain

Gene Ontology ? help Back to Top
GO Term	GO Category	GO Description
GO:0046983	Molecular Function	protein dimerization activity

Sequence ? help Back to Top
Protein Sequence Length: 222 aa Download sequence Send to blast
MEALDEADCW DFLDYNIIGD NTSPDLFCFN DTGGAEFDFS SGVVLQEKEG EQKECTRKRG 60 RTGSCSRPGT KACRERLRRE RLNDRFLDLS SVLEPGRPAK TDKPAILDDA IRVLNQLRAE 120 SQELKETNEK LVEEIKSLKA EKNELREEKL VLKADKEKIE QQLKAMVVPS AGFMPTHPAA 180 YHASANKMAV FPSYGFIPMW QYLPPSSRDT SHDHELRPPA A*

Nucleic Localization Signal ? help Back to Top

No.	Start	End	Sequence
1	75	80	RLRRER

Binding Motif ? help Back to Top
Motif ID	Method	Source	Motif file
MP00102	PBM	Transfer from AT4G14410	Download

Cis-element ? help Back to Top
Source	Link
PlantRegMap	evm.model.supercontig_44.78

Regulation -- PlantRegMap ? help Back to Top
Source	Upstream Regulator	Target Gene
PlantRegMap	Retrieve	Retrieve

Annotation -- Protein ? help Back to Top
Source	Hit ID	E-value	Description
Refseq	XP_021899522.1	1e-165	transcription factor bHLH104 isoform X1
Swissprot	Q8L467	3e-90	BH104_ARATH; Transcription factor bHLH104
TrEMBL	A0A1R3G9V6	1e-115	A0A1R3G9V6_COCAP; Uncharacterized protein
STRING	evm.model.supercontig_44.78	1e-164	(Carica papaya)

Orthologous Group ? help Back to Top
Lineage	Orthologous Group ID	Taxa Number	Gene Number
Malvids	OGEM4026	26	53
Representative plant	OGRP755	17	66

Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID	E-value	Description
AT4G14410.2	3e-79	bHLH family protein

Link Out ? help Back to Top
Phytozome	evm.model.supercontig_44.78

Publications ? help Back to Top
Skinner MK,Rawls A,Wilson-Rawls J,Roalson EH Basic helix-loop-helix transcription factor gene family phylogenetics and nomenclature. Differentiation, 2010. 80(1): p. 1-8 [PMID:20219281] Li X,Zhang H,Ai Q,Liang G,Yu D Two bHLH Transcription Factors, bHLH34 and bHLH104, Regulate Iron Homeostasis in Arabidopsis thaliana. Plant Physiol., 2016. 170(4): p. 2478-93 [PMID:26921305] Liang G,Zhang H,Li X,Ai Q,Yu D bHLH transcription factor bHLH115 regulates iron homeostasis in Arabidopsis thaliana. J. Exp. Bot., 2017. 68(7): p. 1743-1755 [PMID:28369511] Wang C,Yao X,Yu D,Liang G Fe-deficiency-induced expression of bHLH104 enhances Fe-deficiency tolerance of Arabidopsis thaliana. Planta, 2017. 246(3): p. 421-431 [PMID:28451750] Ezer D, et al. The G-Box Transcriptional Regulatory Code in Arabidopsis. Plant Physiol., 2017. 175(2): p. 628-640 [PMID:28864470] Min JH, et al. Arabidopsis Basic Helix-Loop-Helix 34 (bHLH34) Is Involved in Glucose Signaling through Binding to a GAGA Cis-Element. Front Plant Sci, 2017. 8: p. 2100 [PMID:29321786] Min JH, et al. A basic helix-loop-helix 104 (bHLH104) protein functions as a transcriptional repressor for glucose and abscisic acid signaling in Arabidopsis. Plant Physiol. Biochem., 2019. 136: p. 34-42 [PMID:30639920]
