Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID evm.model.supercontig_505.5
Organism
Carica papaya
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; rosids; malvids; Brassicales; Caricaceae; Carica
Family M-type_MADS
Protein Properties Length: 210aa    MW: 24280.5 Da    PI: 10.2892
Description M-type_MADS family protein
Gene Model
Gene Model ID Type Source Coding Sequence
evm.model.supercontig_505.5genomeASGPBView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1SRF-TF64.51.1e-201659346
                                 --SHHHHHHHHHHHHHHHHHHHHHHHHHHT-EEEEEEE-TTSEE CS
                       SRF-TF  3 ienksnrqvtfskRrngilKKAeELSvLCdaevaviifsstgkl 46
                                  +n++n qvtfskRr+g++KK +ELS+LCd+++a+i+fs+  k
  evm.model.supercontig_505.5 16 MSNETNLQVTFSKRRAGLFKKVSELSTLCDVDIAMIVFSPGKKA 59
                                 58*************************************97765 PP

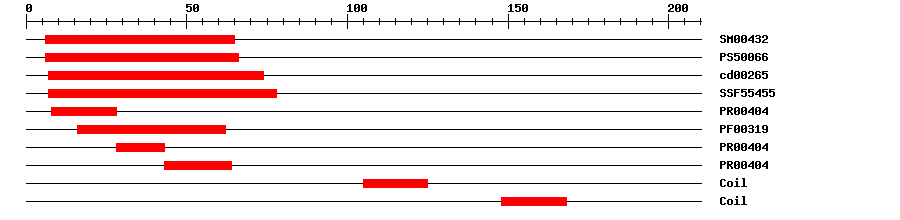

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
SMARTSM004322.0E-31665IPR002100Transcription factor, MADS-box
PROSITE profilePS5006623.016666IPR002100Transcription factor, MADS-box
CDDcd002655.92E-32774No hitNo description
SuperFamilySSF554553.66E-25778IPR002100Transcription factor, MADS-box
PRINTSPR004041.1E-18828IPR002100Transcription factor, MADS-box
PfamPF003191.8E-231662IPR002100Transcription factor, MADS-box
PRINTSPR004041.1E-182843IPR002100Transcription factor, MADS-box
PRINTSPR004041.1E-184364IPR002100Transcription factor, MADS-box
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0003677Molecular FunctionDNA binding
GO:0046983Molecular Functionprotein dimerization activity
Sequence ? help Back to Top
Protein Sequence    Length: 210 aa     Download sequence    Send to blast
MDRKGKGRQK IEMVKMSNET NLQVTFSKRR AGLFKKVSEL STLCDVDIAM IVFSPGKKAF  60
SFGHPCVEKV IEYFIYGNPP RDTSGAMTLI EAHRNLRIHE LNMILTQVIN QMEIEKNRNA  120
ELKEIQKKKC ESKCWWMGPK KEMSFSQLEH LKTSLKELKK KFTKEAETII IQNKLNMMPH  180
VLNDPNAIPN VFKDNPNIYI QGNGKKRFY*

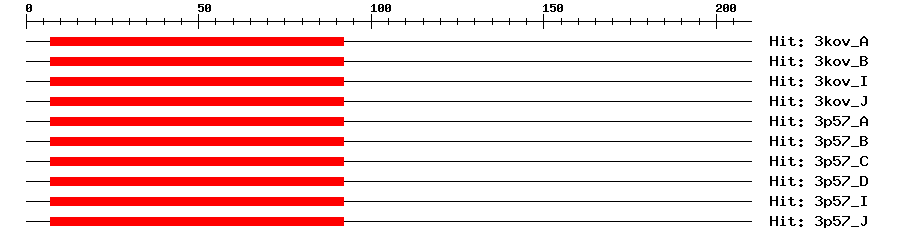

3D Structure ? help Back to Top
Structure
PDB ID Evalue Query Start Query End Hit Start Hit End Description
3kov_A1e-16792186Myocyte-specific enhancer factor 2A
3kov_B1e-16792186Myocyte-specific enhancer factor 2A
3kov_I1e-16792186Myocyte-specific enhancer factor 2A
3kov_J1e-16792186Myocyte-specific enhancer factor 2A
3p57_A1e-16792186Myocyte-specific enhancer factor 2A
3p57_B1e-16792186Myocyte-specific enhancer factor 2A
3p57_C1e-16792186Myocyte-specific enhancer factor 2A
3p57_D1e-16792186Myocyte-specific enhancer factor 2A
3p57_I1e-16792186Myocyte-specific enhancer factor 2A
3p57_J1e-16792186Myocyte-specific enhancer factor 2A
Search in ModeBase
Functional Description ? help Back to Top
Source Description
UniProtProbable transcription factor. Required for suppression of cellularization and promotion of nuclear proliferation during early endosperm development. The FERTILIZATION-INDEPENDENT SEED (FIS) polycomb complex is required for suppression of ALG62 expression at the end of the syncytial phase of endosperm development. {ECO:0000269|PubMed:18334668}.
Cis-element ? help Back to Top
SourceLink
PlantRegMapevm.model.supercontig_505.5
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieve-
Annotation -- Nucleotide ? help Back to Top
Source Hit ID E-value Description
GenBankAC2385901e-152AC238590.1 Carica papaya BAC clone 12I03, complete sequence.
GenBankAC2386371e-152AC238637.1 Carica papaya BAC clone 99B01, complete sequence.
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_021907121.11e-155agamous-like MADS-box protein AGL62
SwissprotQ9FKK22e-54AGL62_ARATH; Agamous-like MADS-box protein AGL62
TrEMBLA0A1S3BYP65e-70A0A1S3BYP6_CUCME; agamous-like MADS-box protein AGL62
STRINGevm.model.supercontig_505.51e-155(Carica papaya)
Orthologous Group ? help Back to Top
LineageOrthologous Group IDTaxa NumberGene Number
MalvidsOGEM8628390
Representative plantOGRP1617761
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT5G60440.19e-57AGAMOUS-like 62
Publications ? help Back to Top
  1. Xu W, et al.
    Endosperm and Nucellus Develop Antagonistically in Arabidopsis Seeds.
    Plant Cell, 2016. 28(6): p. 1343-60
    [PMID:27233529]
  2. Figueiredo DD,Batista RA,Roszak PJ,Köhler C
    Auxin production couples endosperm development to fertilization.
    Nat Plants, 2015. 1: p. 15184
    [PMID:27251719]
  3. Figueiredo DD,Batista RA,Roszak PJ,Hennig L,Köhler C
    Auxin production in the endosperm drives seed coat development in Arabidopsis.
    Elife, 2017.
    [PMID:27848912]
  4. Fiume E,Coen O,Xu W,Lepiniec L,Magnani E
    Growth of the Arabidopsis sub-epidermal integument cell layers might require an endosperm signal.
    Plant Signal Behav, 2017. 12(8): p. e1339000
    [PMID:28613109]
  5. Zhang S, et al.
    FERTILIZATION-INDEPENDENT SEED-Polycomb Repressive Complex 2 Plays a Dual Role in Regulating Type I MADS-Box Genes in Early Endosperm Development.
    Plant Physiol., 2018. 177(1): p. 285-299
    [PMID:29523711]
