Transcription Factor Information
Basic Information | Signature Domain | Sequence |
Basic Information? help Back to Top
TF ID mrna12120.1-v1.0-hybrid
Organism
Fragaria vesca
Taxonomic ID
Taxonomic Lineage
cellular organisms; Eukaryota; Viridiplantae; Streptophyta; Streptophytina; Embryophyta; Tracheophyta; Euphyllophyta; Spermatophyta; Magnoliophyta; Mesangiospermae; eudicotyledons; Gunneridae; Pentapetalae; rosids; fabids; Rosales; Rosaceae; Rosoideae; Potentilleae; Fragariinae; Fragaria
Family MIKC_MADS
Protein Properties Length: 236aa    MW: 25663.2 Da    PI: 7.9139
Description MIKC_MADS family protein
Gene Model
Gene Model ID Type Source Coding Sequence
mrna12120.1-v1.0-hybridgenomeGDRView CDS
Signature Domain? help Back to Top
Signature Domain
No. Domain Score E-value Start End HMM Start HMM End
1SRF-TF725.1e-231360249
                             ---SHHHHHHHHHHHHHHHHHHHHHHHHHHT-EEEEEEE-TTSEEEEE CS
                   SRF-TF  2 rienksnrqvtfskRrngilKKAeELSvLCdaevaviifsstgklyey 49
                             +i+n   rqvtfskRr g+lKKA ELSvLCd e aviifs tgkl+e
  mrna12120.1-v1.0-hybrid 13 KIDNLPARQVTFSKRRRGLLKKAGELSVLCDCEYAVIIFSATGKLFES 60
                             6899999**************************************985 PP
2K-box45.43.5e-16921702098
                    K-box  20 elakLkkeienLqreqRhllGedLesLslkeLqqLeqqLekslkkiRskKnellleqieelqkkekelqeenkaLrkkl 98
                              +  kL k + +  r +R++ GedLe L++ eLq+Le+q+e +l+++ ++K+e ++++i  l  k  +l ++n++Lr+++
  mrna12120.1-v1.0-hybrid  92 DRIKLSKDLAEKSRVLRQMNGEDLEGLNIDELQKLEKQIEGGLSRVLQTKEEKIMSEILALEAKGAQLLQANNQLRQRI 170
                              5556666666667889************************************************************987 PP

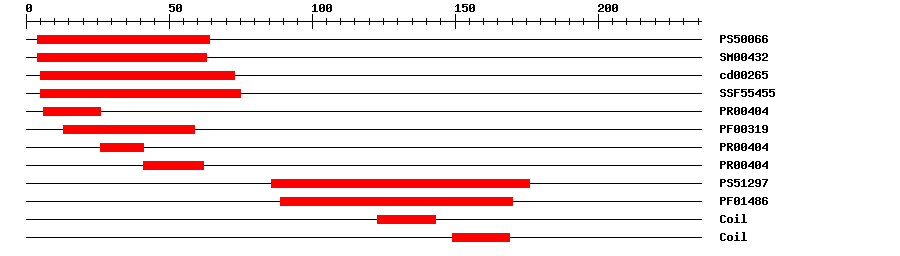

Protein Features ? help Back to Top
3D Structure
Database Entry ID E-value Start End InterPro ID Description
PROSITE profilePS5006626.212464IPR002100Transcription factor, MADS-box
SMARTSM004322.7E-31463IPR002100Transcription factor, MADS-box
CDDcd002652.71E-32573No hitNo description
SuperFamilySSF554553.53E-26575IPR002100Transcription factor, MADS-box
PRINTSPR004041.8E-23626IPR002100Transcription factor, MADS-box
PfamPF003191.0E-201359IPR002100Transcription factor, MADS-box
PRINTSPR004041.8E-232641IPR002100Transcription factor, MADS-box
PRINTSPR004041.8E-234162IPR002100Transcription factor, MADS-box
PROSITE profilePS5129711.88986176IPR002487Transcription factor, K-box
PfamPF014861.8E-1589170IPR002487Transcription factor, K-box
Gene Ontology ? help Back to Top
GO Term GO Category GO Description
GO:0006355Biological Processregulation of transcription, DNA-templated
GO:0005634Cellular Componentnucleus
GO:0003677Molecular FunctionDNA binding
GO:0003700Molecular Functiontranscription factor activity, sequence-specific DNA binding
GO:0046983Molecular Functionprotein dimerization activity
Plant Ontology ? help Back to Top
PO Term PO Category PO Description
PO:0009005anatomyroot
PO:0007134developmental stagesporophyte vegetative stage
Sequence ? help Back to Top
Protein Sequence    Length: 236 aa     Download sequence    Send to blast
MTKPARNKIK IRKIDNLPAR QVTFSKRRRG LLKKAGELSV LCDCEYAVII FSATGKLFES  60
SSSSTKDVIA RYKAHIENVE KLEQPSIELQ PDRIKLSKDL AEKSRVLRQM NGEDLEGLNI  120
DELQKLEKQI EGGLSRVLQT KEEKIMSEIL ALEAKGAQLL QANNQLRQRI GMLSVANGKN  180
AGVIALESDN STAEEGLSSE SGTSGSSCCA NGSSPDDDSA DDTLSLKLGL IPYRG*
3D Structure ? help Back to Top
Structure
PDB ID Evalue Query Start Query End Hit Start Hit End Description
3mu6_A3e-18675271Myocyte-specific enhancer factor 2A
3mu6_B3e-18675271Myocyte-specific enhancer factor 2A
3mu6_C3e-18675271Myocyte-specific enhancer factor 2A
3mu6_D3e-18675271Myocyte-specific enhancer factor 2A
5f28_A3e-18677374MEF2C
5f28_B3e-18677374MEF2C
5f28_C3e-18677374MEF2C
5f28_D3e-18677374MEF2C
Search in ModeBase
Functional Description ? help Back to Top
Source Description
UniProtTranscription repressor that inhibit floral transition in the autonomous flowering pathway, independent of photoperiod and temperature. Acts in a dosage-dependent manner. Together with AGL24 and AP1, controls the identity of the floral meristem and regulates expression of class B, C and E genes. Promotes EFM expression to suppress flowering (PubMed:25132385). {ECO:0000269|PubMed:16679456, ECO:0000269|PubMed:18694458, ECO:0000269|PubMed:19656343, ECO:0000269|PubMed:25132385}.
Cis-element ? help Back to Top
SourceLink
PlantRegMapmrna12120.1-v1.0-hybrid
Regulation -- Description ? help Back to Top
Source Description
UniProtINDUCTION: Repressed by the floral homeotic genes AP1 and SEP3 in emerging floral meristems. Up-regulated by HUA2. {ECO:0000269|PubMed:15659097, ECO:0000269|PubMed:17428825, ECO:0000269|PubMed:18694458}.
Regulation -- PlantRegMap ? help Back to Top
Source Upstream Regulator Target Gene
PlantRegMapRetrieve-
Annotation -- Protein ? help Back to Top
Source Hit ID E-value Description
RefseqXP_004299728.11e-169PREDICTED: MADS-box protein JOINTLESS-like
RefseqXP_011464657.11e-169PREDICTED: MADS-box protein JOINTLESS-like
RefseqXP_011464658.11e-169PREDICTED: MADS-box protein JOINTLESS-like
SwissprotQ9FVC12e-71SVP_ARATH; MADS-box protein SVP
TrEMBLA0A2P6PH141e-133A0A2P6PH14_ROSCH; Putative transcription factor MADS-MIKC family
STRINGXP_004299728.11e-168(Fragaria vesca)
Orthologous Group ? help Back to Top
LineageOrthologous Group IDTaxa NumberGene Number
FabidsOGEF89033106
Best hit in Arabidopsis thaliana ? help Back to Top
Hit ID E-value Description
AT2G22540.15e-62MIKC_MADS family protein
Publications ? help Back to Top
  1. Ramamoorthy R,Phua EE,Lim SH,Tan HT,Kumar PP
    Identification and characterization of RcMADS1, an AGL24 ortholog from the holoparasitic plant Rafflesia cantleyi Solms-Laubach (Rafflesiaceae).
    PLoS ONE, 2013. 8(6): p. e67243
    [PMID:23840638]
  2. Jaudal M, et al.
    Overexpression of Medicago SVP genes causes floral defects and delayed flowering in Arabidopsis but only affects floral development in Medicago.
    J. Exp. Bot., 2014. 65(2): p. 429-42
    [PMID:24249713]
  3. Müller-Xing R,Clarenz O,Pokorny L,Goodrich J,Schubert D
    Polycomb-Group Proteins and FLOWERING LOCUS T Maintain Commitment to Flowering in Arabidopsis thaliana.
    Plant Cell, 2014. 26(6): p. 2457-2471
    [PMID:24920331]
  4. Hwan Lee J,Sook Chung K,Kim SK,Ahn JH
    Post-translational regulation of SHORT VEGETATIVE PHASE as a major mechanism for thermoregulation of flowering.
    Plant Signal Behav, 2014. 9(4): p. e28193
    [PMID:25764420]
  5. Chen Z, et al.
    Overexpression of AtAP1M3 regulates flowering time and floral development in Arabidopsis and effects key flowering-related genes in poplar.
    Transgenic Res., 2015. 24(4): p. 705-15
    [PMID:25820621]
  6. Wells CE,Vendramin E,Jimenez Tarodo S,Verde I,Bielenberg DG
    A genome-wide analysis of MADS-box genes in peach [Prunus persica (L.) Batsch].
    BMC Plant Biol., 2015. 15: p. 41
    [PMID:25848674]
  7. Müller-Xing R,Schubert D,Goodrich J
    Non-inductive conditions expose the cryptic bract of flower phytomeres in Arabidopsis thaliana.
    Plant Signal Behav, 2015. 10(4): p. e1010868
    [PMID:25924005]
  8. Marín-González E, et al.
    SHORT VEGETATIVE PHASE Up-Regulates TEMPRANILLO2 Floral Repressor at Low Ambient Temperatures.
    Plant Physiol., 2015. 169(2): p. 1214-24
    [PMID:26243615]
  9. Bechtold U, et al.
    Time-Series Transcriptomics Reveals That AGAMOUS-LIKE22 Affects Primary Metabolism and Developmental Processes in Drought-Stressed Arabidopsis.
    Plant Cell, 2016. 28(2): p. 345-66
    [PMID:26842464]
  10. Fernández V,Takahashi Y,Le Gourrierec J,Coupland G
    Photoperiodic and thermosensory pathways interact through CONSTANS to promote flowering at high temperature under short days.
    Plant J., 2016. 86(5): p. 426-40
    [PMID:27117775]
  11. Wilson DC,Kempthorne CJ,Carella P,Liscombe DK,Cameron RK
    Age-Related Resistance in Arabidopsis thaliana Involves the MADS-Domain Transcription Factor SHORT VEGETATIVE PHASE and Direct Action of Salicylic Acid on Pseudomonas syringae.
    Mol. Plant Microbe Interact., 2017. 30(11): p. 919-929
    [PMID:28812948]
  12. Zou YP, et al.
    Adaptation of Arabidopsis thaliana to the Yangtze River basin.
    Genome Biol., 2017. 18(1): p. 239
    [PMID:29284515]
  13. Richter R, et al.
    Floral regulators FLC and SOC1 directly regulate expression of the B3-type transcription factor TARGET OF FLC AND SVP 1 at the Arabidopsis shoot apex via antagonistic chromatin modifications.
    PLoS Genet., 2019. 15(4): p. e1008065
    [PMID:30946745]
